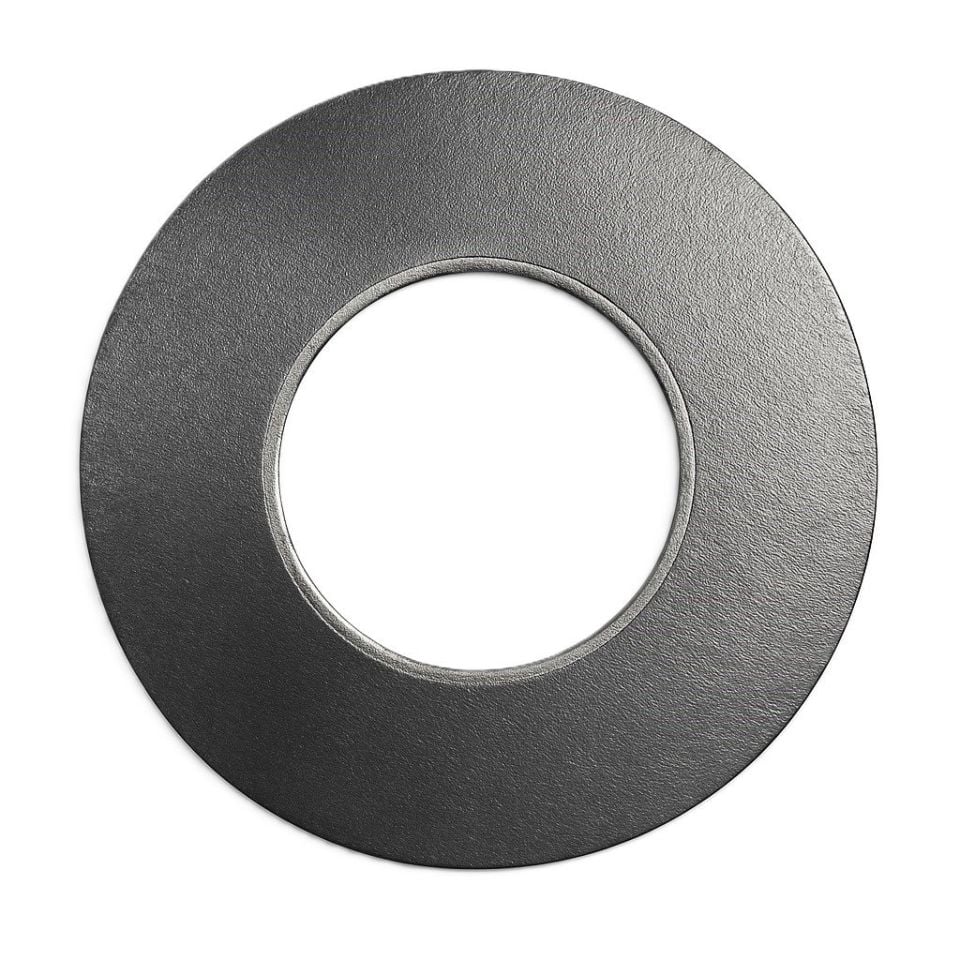

Pure Graphite Flange Gaskets with Inner Metal Ring

Pure Graphite Flange Gaskets with Inner Metal Ring are specially engineered products designed to maximize sealing safety in critical lines of industrial facilities involving high temperatures and aggressive fluids. ORFA Industrial stocks Pure Graphite Flange Gaskets with Inner Metal Ring solutions, which combine a high-purity graphite structure with a stainless steel inner ring (eyelet) to prevent direct fluid contact with the graphite layer and enhance mechanical strength. Offering excellent adaptation especially in superheated steam, thermal oil, and chemical processes, Pure Graphite Flange Gaskets with Inner Metal Ring fill micro-imperfections on flange surfaces, maintaining sealing integrity even under the most demanding operating conditions and ensuring operational safety.

Industrial Pure Graphite Inner Ring Flange Gasket Solutions

In industrial sealing technologies, when graphite's unique thermal resistance is combined with an inner ring that acts as a mechanical protective shield, the resulting Pure Graphite Inner Ring Flange Gaskets become indispensable for heavy-duty applications. These sealing elements preserve the natural flexibility of graphite while maintaining their form even under high pressure differentials, thanks to the internal metal reinforcement. Offered by ORFA Industrial, these solutions protect the graphite edges against the abrasive effects of the fluid, extending the material's lifespan. The use of Pure Graphite Inner Ring Flange Gaskets prevents material relaxation, especially in lines experiencing sudden temperature changes (thermal shock), ensuring continuous sealing. With their structure that minimizes the risk of "blow-out" in flange connections, Pure Graphite Inner Ring Flange Gaskets play a critical role in plant safety.

Types and Applications of Pure Graphite Inner Ring Flange Gaskets

Manufactured with different metal reinforcements and thickness options based on application requirements, Pure Graphite Inner Ring Flange Gaskets offer a wide range of technical variations. The basic structure of these products involves encapsulating graphite foil with 98% or higher purity within an inner ring, typically made from AISI 316L stainless steel. Pure Graphite Inner Ring Flange Gaskets are produced in sizes compliant with both DIN and ASME standards, ensuring full compatibility with global piping equipment. Due to graphite's high chemical resistance, these products are also confidently preferred in acidic and alkaline environments. The varieties available for Pure Graphite Inner Ring Flange Gaskets are as follows:

Selecting the Right Pure Graphite Inner Ring Flange Gaskets

To optimize sealing performance when selecting Pure Graphite Inner Ring Flange Gaskets, the temperature, pressure, and chemical properties of the fluid must be meticulously analyzed. While special precautions are needed for applications above graphite's oxidation temperature of 450°C, the presence of the inner ring mechanically supports this limit. The technical team at ORFA Industrial provides engineering support for determining the appropriate Pure Graphite Inner Ring Flange Gaskets suitable for your project's flange type (RF, FF, or RTJ). Incorrect gasket selection can lead to graphite erosion over time, resulting in serious system leaks. Therefore, when preferring Pure Graphite Inner Ring Flange Gaskets, the quality of the metal component and the purity level of the graphite must be questioned. A high-quality Pure Graphite Inner Ring Flange Gasket will fit perfectly onto the flange surface during installation, providing maintenance-free service for many years.
