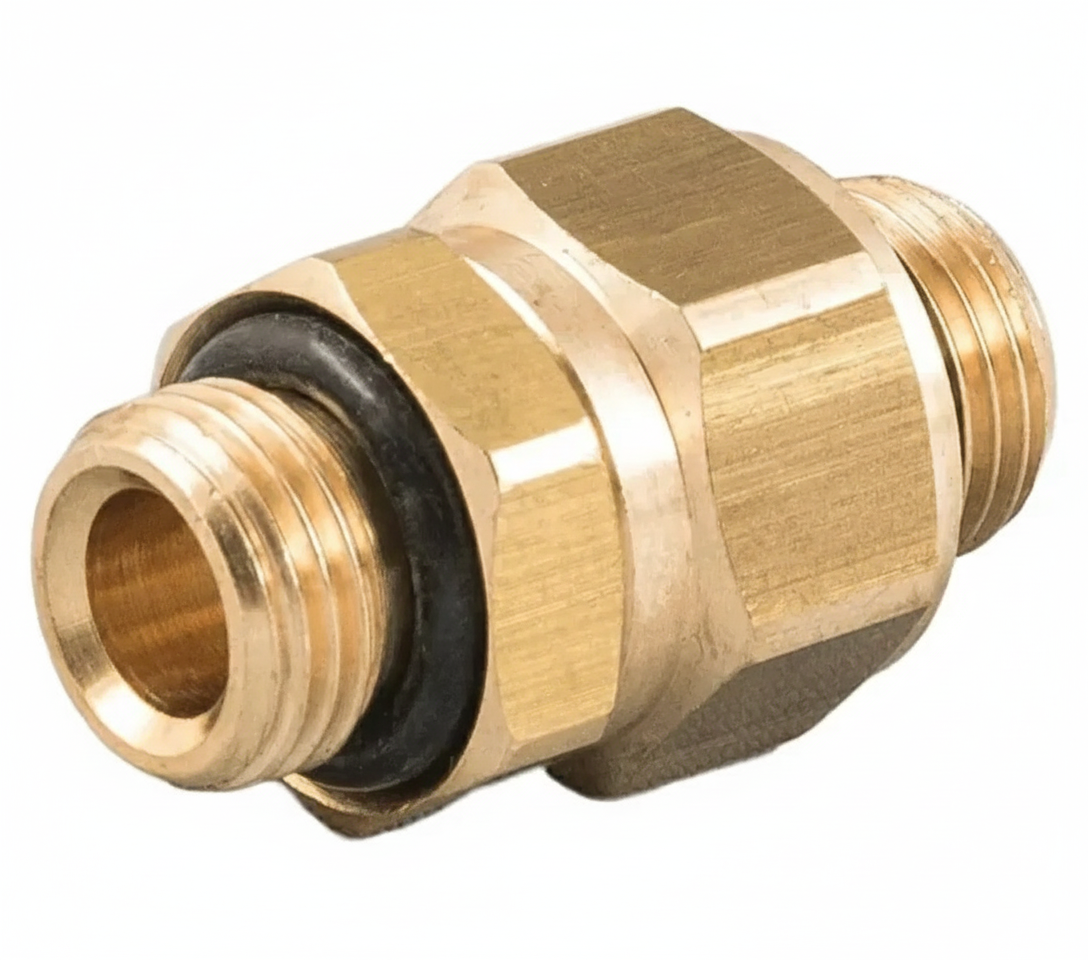

AIGNEP 2116 Rotating Nipple 3/8''

Flexible and Leak-Proof Connection in Pneumatic Systems with ORFA Industrial Assurance

In pneumatic automation lines, installation flexibility and sealing are critical. This is where the rotating nipple comes into play for moving connections. The AIGNEP 2116 rotating nipple, with 3/8'' male thread and O-ring seal, provides a reliable solution in pneumatic systems. This rotating nipple allows free hose orientation during installation, preventing kinks and reducing mechanical stress. Widely preferred in industrial facilities, this rotating nipple operates flawlessly at temperatures from -20 °C to +80 °C and pressure from -0.99 bar to +15 bar. Made of brass, the rotating nipple is corrosion-resistant and long-lasting. Each rotating nipple is manufactured to AIGNEP quality standards with a pressure resistance of 1.5 MPa. Used in pneumatic automation, machinery, and equipment lines, this rotating nipple stands out for its ease of installation and sealing performance. Using a rotating nipple in your system extends hose life and reduces maintenance costs. The AIGNEP 2116 rotating nipple is an indispensable connection element in pneumatic circuits.

Rotating Nipple Technical Specifications

Brand: AIGNEP

Model / Series: 2116

Connection Type: Rotating Male Nipple (with O-ring)

Thread Size: 3/8''

Thread Type: Parallel (BSP)

Sealing: O-ring

Material: Brass (non-nickel)

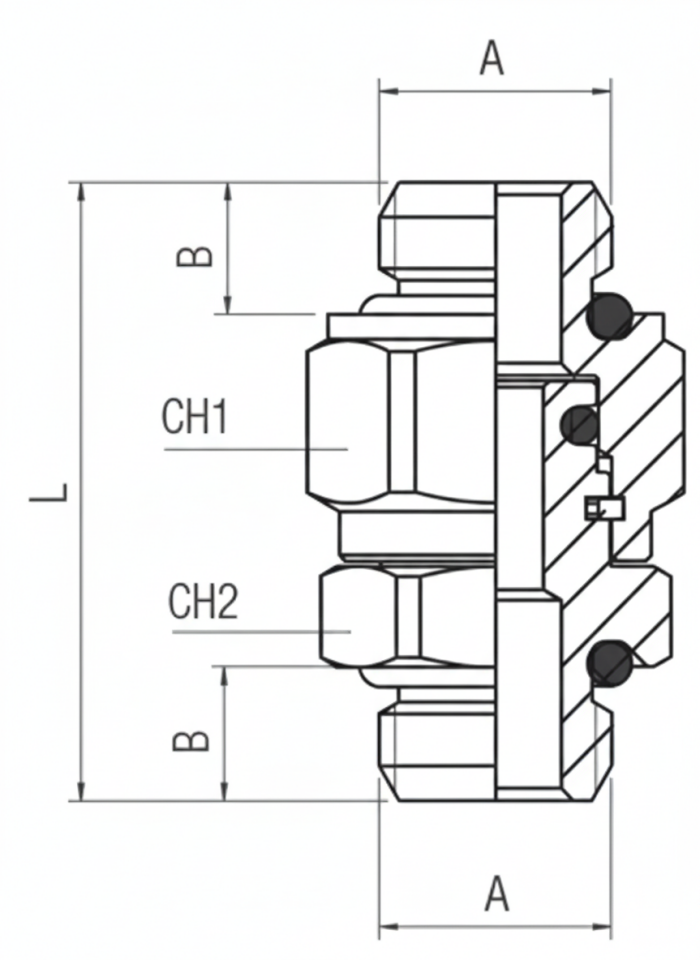

Dimensions (mm): A: 3/8'', B: 8, L: 33, CH1: 20, CH2: 20

Operating Temperature: -20 °C ~ +80 °C

Operating Pressure: -0.99 bar ~ +15 bar

Pressure Resistance: 1.5 MPa

Rotating Nipple Key Advantages

Easy Installation: The rotating design allows free hose orientation; the rotating nipple reduces installation time.
Leak-Proof Connection: The O-ring seal, integrated into the rotating nipple, prevents leaks under pressure.
Hose Protection: The design prevents kinking; using a rotating nipple extends hose life.
Wide Operating Range: Between -20 °C and +80 °C, the rotating nipple delivers high performance.

Rotating Nipple Application Areas

Pneumatic automation systems and control lines.
Moving hose connections and robotic applications.
Machine and equipment pneumatic distribution lines.
Industrial air distribution systems and maintenance/repair operations.

Discover reliable and flexible connections for your pneumatic systems with AIGNEP Rotating Nipple solutions.

Thread Size

3/8''
