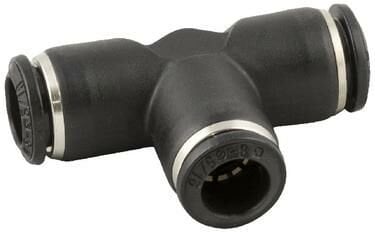

AIGNEP 55230 TE 14mm
AIGNEP 55230 TE 14mm: Fast and Reliable Air Distribution in Pneumatic Systems
Pneumatic TE fittings are used in pneumatic automation systems to direct and distribute compressed air flow to different lines. The AIGNEP 55230 TE 14mm is a compact and versatile fitting designed to meet this need, enabling quick and easy connection of pneumatic hoses with a 14mm hose diameter .
What is AIGNEP 55230 TE and What Does It Do?
The Aignep 55230 TE is a T-shaped connector with three connection points. Its primary function is to split an overhead line into two or to separate a line from the main line.
Equal Tee: This tee type has all three connection points having the same diameter. The "14mm" designation indicates that all three connection points are suitable for pneumatic hoses with an outer diameter of 14mm .
Quick-Connect (Push-in) Tee: This is the most commonly used type. A special mechanism allows the pneumatic hose to be pushed into the valve, connecting it quickly and securely. Disassembly is also simple.
Highlights and Advantages of AIGNEP 55230 TE:
Central Air Distribution: Provides regular and equal air distribution from a single air supply line to the other lines on it.
Compact Design: It can be easily used in automation panels and machines with its compact structure that saves space.
Easy Installation: Quick connection (push-in) mechanism ensures quick and practical installation of the piping system.
Wide Operating Range: It operates smoothly in a wide temperature range from -20°C to +70°C and between -0.95 bar and 12 bar .
Durable Material: Body made of nickel-plated brass or reinforced plastic provides long-lasting and reliable performance.
Versatility: Suitable for fluids such as compressed air, vacuum and neutral gases.
Areas of Use:
Industrial Automation: Compressed air supply of automation equipment such as pneumatic cylinders, valves and sensors.
Machinery Manufacturing: Air lines of packaging machines, textile machines, robotic systems and other pneumatic machines.
Compressor Systems: Arrangement of air distribution lines.
General Factory Lines: Branches in compressed air distribution networks.
