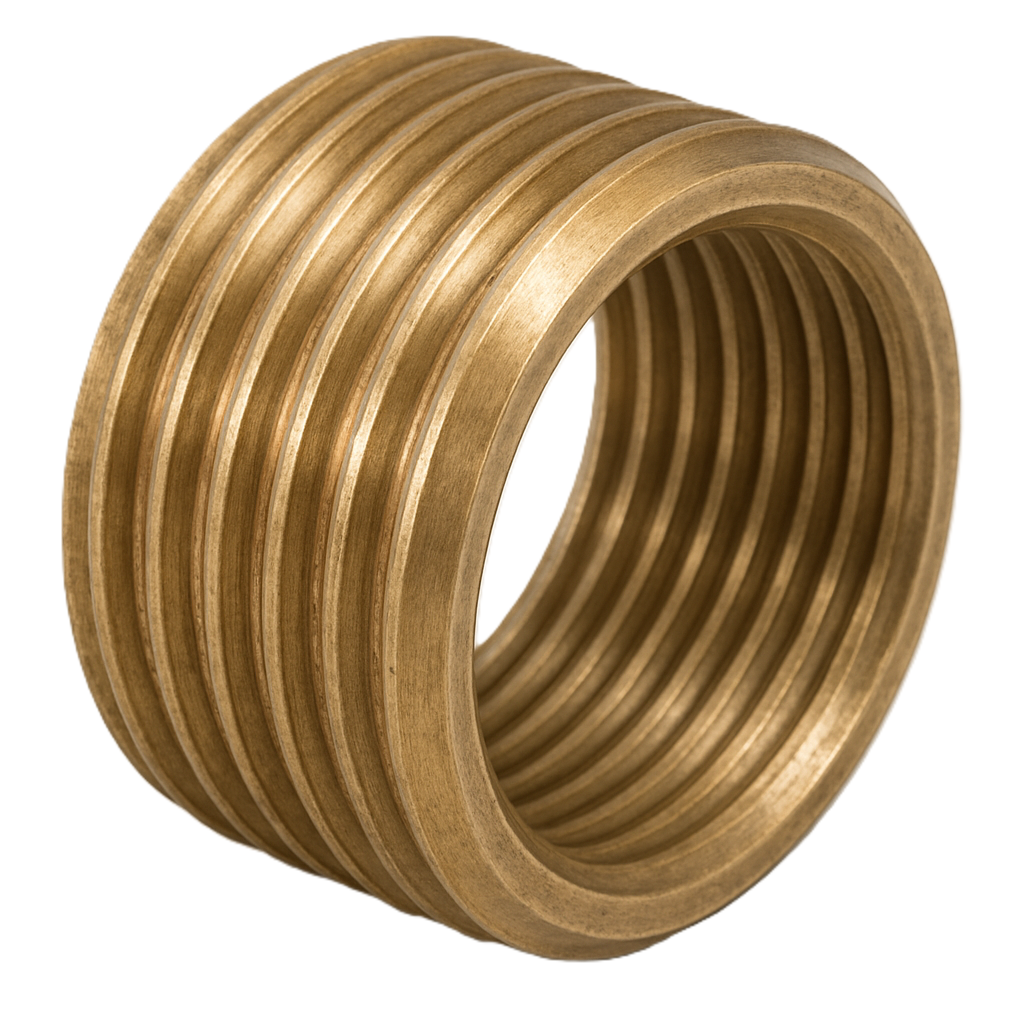

AIGNEP Brass Hidden Reducer 3/8"- 1/4"

AIGNEP Brass Hidden Reducer 3/8"- 1/4"

Reliable Connection Element with ORFA Industrial Assurance

Used to connect pipes of different diameters in industrial piping systems, the hidden reducer stands out with its compact design and aesthetic appearance. Manufactured to the high-quality standards of the AIGNEP brand, this hidden reducer in sizes 3/8"- 1/4" is made of CW617N brass. The brass body, which offers excellent corrosion resistance, ensures long-lasting performance in demanding industrial environments. Thanks to the threaded female-male connection, installation is quick and secure, offering reliable sealing with a maximum pressure of 16 bar. It operates in a temperature range from -20°C to +120°C and is widely used in water, air, and process lines. Produced in accordance with the EN ISO 228-1 thread standard, this part provides perfect compatibility in tight spaces without compromising piping aesthetics.

Hidden Reducer Technical Specification Details

Connection Sizes: 3/8"- 1/4"

Material: CW617N Brass

Connection Type: Threaded (Female-Male)

Pressure Rating: Max 16 Bar

Temperature Range: -20°C to +120°C

Surface: Smooth Brass

Standards: EN ISO 228-1

Type: Hidden Reducer

Hidden Reducer Key Advantages

Compact Design: This hidden reducer offers easy installation and an aesthetic appearance in tight spaces.
High Durability: Made of CW617N brass, the hidden reducer is resistant to corrosion.
Wide Temperature Range: Operating from -20°C to +120°C, the hidden reducer is suitable for various environments.
Easy Installation: Thanks to the threaded female-male connection, the hidden reducer is installed quickly.

Hidden Reducer Application Areas

Used to reduce pipe diameters in water piping lines.
Preferred in compressed air systems at connection points.
Functions as a transition element in industrial process lines.
Used for pipe reduction in heating and cooling systems.

Achieve secure and aesthetic connections in your piping system with AIGNEP hidden reducer solutions.
