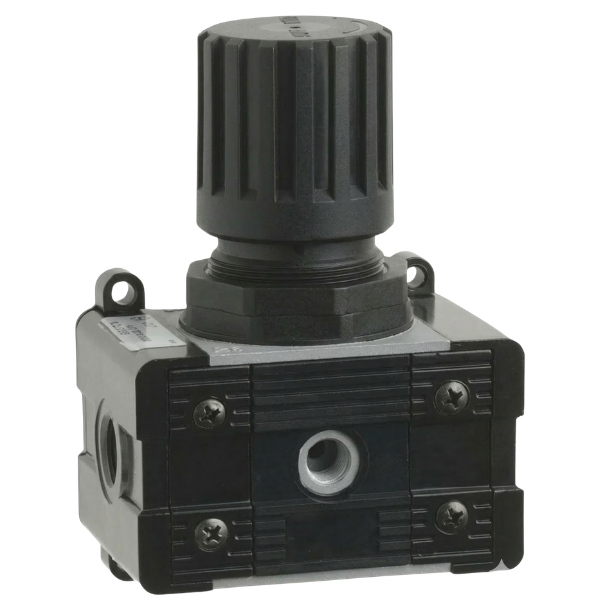

AIGNEP T020 REG3 Air Regulator 8 Bar 3/4"
Category
Brand
Stock Code
T020307030000
Warranty Period
24 Month
Price
87,16 USD + VAT
%28
62,75 USD
87,16 USD
Installments starting from 62,75 USD!
AIGNEP T020 REG3 Air Regulator
Precise Pressure Control | 3/4" Connection | 0-8 Bar Adjustment Range
The Aignep T020 series REG3 air regulator is a high-performance solution for controlling compressed air in pneumatic systems. This air regulator, used in industrial applications, reduces the inlet pressure to the desired working value, creating a stable air flow in the system. Thanks to its durable body construction, the air regulator offers long service life, and its precise adjustment mechanism minimizes pressure fluctuations. This air regulator operates reliably in pneumatic automation systems and provides balanced pressure control in compressor lines and air installations. With its compact design, the air regulator is easy to install, making it a preferred model for safe and efficient operation in production lines.
AIR REGULATOR TECHNICAL SPECIFICATIONS
Product Code: T020 307 030 000
Connection Size (W): 3/4"
Size: REG 3
Adjustment Range: 0 ÷ 8 Bar
Flow Capacity: 6200 Nl/min
AIR REGULATOR COMPONENTS AND MATERIALS
- Body: Technopolymer
- Bonnet: Technopolymer
- Lock Nut: Technopolymer
- Adjusting Knob: Technopolymer
- Adjusting Screw: Brass
- Nut: Brass
- Adjusting Spring: Steel
- Diaphragm: Rolling Type
- Seal: NBR Relieving Diaphragm
- Valve Poppet: Vulcanized NBR
- Rod: Brass
- Return Spring: Stainless Steel
- Plug: Technopolymer
- O-Ring: NBR
- End Piece: Technopolymer PA
AIR REGULATOR ADVANTAGES
- High Flow Rate: This air regulator with 6200 Nl/min capacity is suitable for systems with high air consumption.
- Relieving Function: The air regulator automatically releases pressure above the set value.
- Durable Construction: Thanks to robust materials suitable for industrial use, the air regulator offers long life.
- Precise Pressure Adjustment: The locking knob ensures the regulator setting is securely fixed.
AIR REGULATOR APPLICATIONS
- Use of air regulator in pneumatic automation systems.
- Air regulator applications in compressor outlet lines.
- Air regulator control in painting and spraying equipment.
- Air regulator for adjusting pressure of pneumatic hand tools.
AIR REGULATOR TECHNICAL CATALOG AND DETAILED DOCUMENTATION
View Product Catalog (PDF)| Thread Size | : | 3/4'' |
