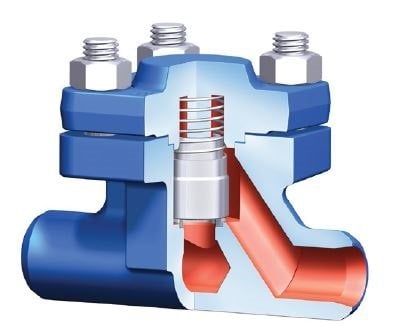

ARI-CHECKO-V 48.030/040 Orta Basınç Çekvalf - DN50 (PN63-160)
ARI CHECKO-V 48.030-40 Medium Pressure Class Check Valve PN63/100/160 DN
ARI CHECKO-V 48.030-40 medium pressure class check valve is a high-performance valve solution developed to ensure the safety of fluid lines in industrial facilities. ORFA Industrial Products Industry and Trade Inc. This product, offered for sale by , attracts attention with its compact structure, high pressure resistant design and long-lasting material quality. It plays a critical role in controlling the flow direction by providing reliable sealing even at small nominal diameters.
Check Valve Working Principle
This check valve allows flow in the line to proceed in one direction only. When the flow reverses, the valve automatically closes, preventing backflow. Thanks to the stainless steel parts and spring mechanism used in its internal structure, the valve exhibits stable performance even under high temperature and pressure. Hardened AISI420 valve and Stellit 21 seat ring provide superior resistance to wear and corrosion, extending valve life.
Specification
Body and Cover: .0460 Forged Steel
Internal Parts: Stainless Steel
Connection Type: Butt Weld Neck
Nominal Diameter: DN
Max. Operating Temperature: °C
Pressure Class: PN63 / PN100 / PN
Sit Ring: Stellite
Clapper: .4021+QT (AISI 420) Hardened
Spring: .4310 Stainless Steel
Check Valve Usage Areas
Power plants
Refinery and petrochemical facilities
Steam and condensate lines
Chemical industry
Heating and cooling systems
Pressure water and process lines
ORFA Endüstri Mamüller Sanayi ve Ticaret A.Ş . ARI CHECKO-V 48.030-40 medium pressure class check valve offers a reliable and efficient solution in industrial lines with its long-lasting structure and high pressure resistant design. It is an ideal choice for businesses that require high performance even on small scales.
