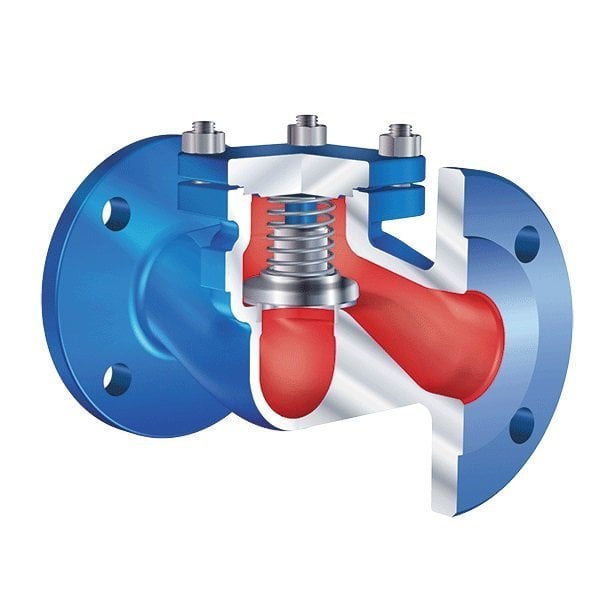

ARI CHECKO-V 88.003-81 Orta Basınç Sınıfı Çek Vana PN63-100-160 DN50
ARI CHECKO-V 88.003-81 Medium Pressure Class Check Valve PN63/100/160 DN
ARI CHECKO-V 88.003-81 medium pressure class check valve is a superior engineering product designed to provide safe flow control under high temperature and pressure. It is resistant to harsh industrial conditions thanks to its body and cover structure made of 1.7335 high temperature steel. ORFA Industrial Products Industry and Trade Inc. This valve, offered for sale by
, guarantees fluid safety, especially in high pressure and high temperature systems, with its compact DN50 nominal diameter.
Check Valve Working Principle
The check valve prevents reverse flow by allowing fluid to pass in one direction only. When the flow direction changes in the system, the valve automatically closes thanks to the spring and seat ring and prevents backflow. Stellit 21 seat ring and Stellit 6 coated flap offer long-lasting sealing performance. In this way, the efficiency in the system is maintained and damage to the equipment is prevented.
Specification Body and Cover:
.7335 High Temperature Steel Internal Parts
: Stainless Steel Connection:
Flanged Nominal Diameter:
DN Max. Operating Temperature:
°C Pressure Class:
PN63 / PN100 / PN Sit Ring:
Stellite Clapper:
.7335 / Stellite Spring:
.4310 Stainless Steel
Check Valve Usage Areas
Power plants (steam and heating lines)
Chemical and petrochemical plants
Refineries
High pressure steam lines
Industrial process lines
Heating and power generation systems ARI CHECKO-V 88.003-81 Medium Pressure Class Check Valve provides safe and efficient flow control in industrial facilities with its superior material quality and high performance design. ORFA Endüstri Mamüller Sanayi ve Ticaret A.Ş.
| Body Material | : | Cast Steel |
| Pressure Class (PN) | : | PN 63 |
| Nominal Diameter (DN) | : | DN 50 |
