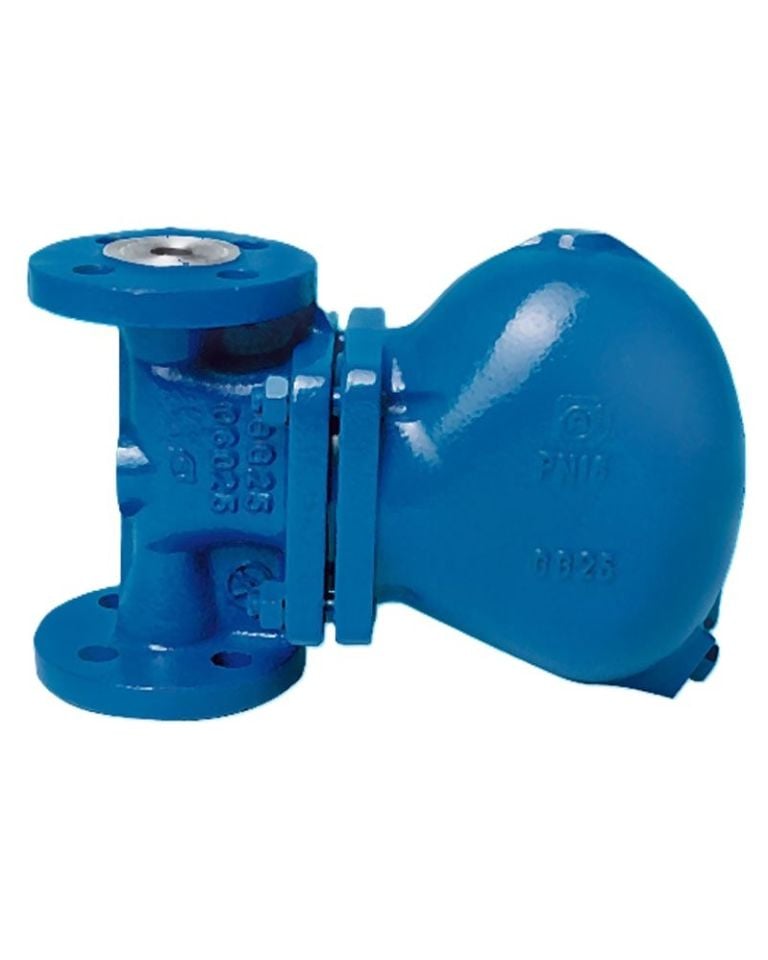

ARI CONA-S 12.631-1 Float Trap Flanged PN16 DN50
%19 Discounted Product
0 - Comment / Read Comments
2.491,20 EUR
2.017,87 EUR
Category
Brand
Stock Code
708A120500306
Warranty Period
24 Month
Price
2.076,00 EUR + VAT
* Installments starting from 381,24 EUR!
Add to Cart
ARI CONA-S 12.631-1 Float Trap Flanged PN16 DN
ARI CONA-S 12.631-1 is a float type steam trap model that offers a reliable solution in steam lines and condensate discharge. Thanks to its flanged connection and high-quality material structure, it provides long-lasting, safe and high-efficiency operation in industrial applications. ORFA This product, offered for sale by Endüstri Mamüller Sanayi ve Ticaret A.Ş. , increases energy efficiency and maximizes process safety.

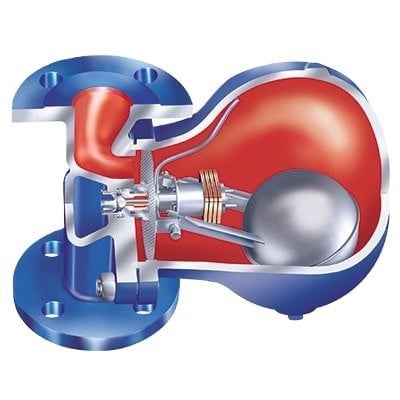

Float Steam Trap Working Principle
Float steam trap ensures automatic removal of condensate from the steam line. The float inside rises and falls depending on the condensate level and turns the drain mechanism on and off. Thus, only condensate is discharged without any loss of steam in the system. While the built-in check valve function prevents reverse flow, the integrated strainer contributes to the smooth operation of the system.
Specification
Body and Cover: EN-JL1040 Cast Iron
Internal Parts: .4301 (AISI304) Stainless Steel / TB10-85 (corrosion resistant bi-metal)
Strainer: .4301 (AISI304) Stainless Steel
Connection: Flanged
Nominal Diameter: DN
Pressure Class: PN
Max. Operating Temperature: °C (9.6 bar@g), 200 °C (12.8 barg)
Controller Options: R2, R4, R8, R
Mounting Position: Standard vertical, optional horizontal
Additional Functions: Internal check valve, internal strainer, flow diverter
Usage Areas of Float Trap
Steam distribution systems
Heat exchangers
Industrial drying systems
Textile, food, chemical and energy facilities
HVAC and heating lines
With its high quality stainless steel internal parts, integrated strainer and flow diverter features, ARI CONA-S 12.631-1 offers a long-lasting, safe and energy efficient solution. ORFA Endüstri Mamüller Sanayi ve Ticaret A.Ş., offers its customers a modern provides superior performance steam trap solutions suitable for industrial needs.
| Diameter-Dn | : | DN 50 |
| Body | : | Iron Casting |
| Pressure Class | : | PN 16 |
