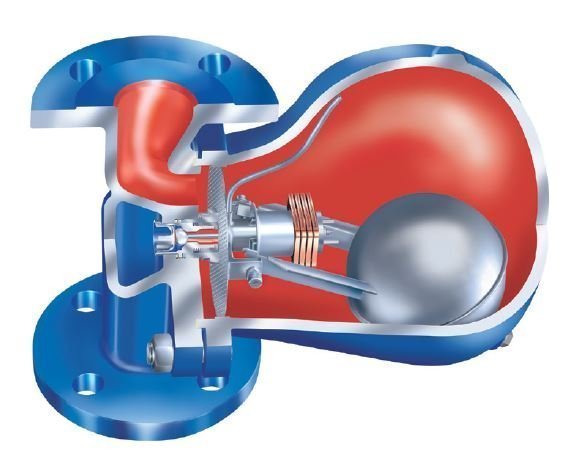

ARI CONA S 25.631-1 Şamandıralı Kondenstop Flanşlı PN40 DN50
ARI CONA S 25.631-1 Float Trap Flanged PN40 DN
ARI CONA S 25.631-1 Float Steam Trap Flanged PN40 DN50 is a high quality equipment that provides maximum efficiency and reliability in industrial steam and condensate lines. It offers long-lasting use with its ductile iron body and cover structure, stainless steel internal parts and integrated strainer. ORFA Industrial Products Industry and Trade Inc. This product, offered for sale by , is an ideal solution for energy saving and operational safety.
Float Steam Trap Working Principle
Float steam trap is a mechanical system that works depending on the amount of condensate formed in the line. When condensate forms, the float rises and opens the discharge mechanism, and when steam passes, it closes, preventing steam loss. The internal strainer filters particles in the line, while the check valve function prevents backflow. Additionally, system safety and efficiency are increased thanks to the flow diverter.
Specification
Body and Cover: EN-JS1049 Ductile Iron
Inner Parts: .4301 (AISI304) Stainless Steel / TB10-85 (corrosion resistant bi-metal)
Strainer: .4301 (AISI304) Stainless Steel
Connection: Flanged
Nominal Diameter: DN
Pressure Class: PN
Maximum Operating Temperature: °C (22 barg), 250 °C (32 bar@g)
Controller: R2, R4, R8, R13, R22, R
Additional Functions: Internal check valve, internal strainer, flow diverter
Mounting Position: Standard vertical, optional horizontal
Usage Areas of Float Trap
Steam boilers and distribution lines
Textile industry process lines
Petrochemical and refinery facilities
Power plants
Paper and food production facilities
Industrial heating and HVAC systems
ARI CONA S 25.631-1 Float Trap Flange PN40 DN50 is a reliable solution for industrial facilities with its solid material structure, internal safety functions and energy efficient design. ORFA Industrial Mamüller Sanayi ve Ticaret A.Ş. offers long-lasting use and high performance with the assurance.
| Body Material | : | Ductile Iron |
| Pressure Class (PN) | : | PN 40 |
| Nominal Diameter (DN) | : | DN 50 |
