ARI CONA S 45.631-1 Float Trap Flanged PN40 DN
ORFA Industrial Products Industry ARI CONA S 45.631-1 Float Steam Trap, offered for sale by ve Ticaret A.Ş. , is a high-performance product developed to provide reliable and efficient condensate discharge in industrial steam systems. It offers long-lasting use with its flange connection, solid body structure and stainless steel internal parts.

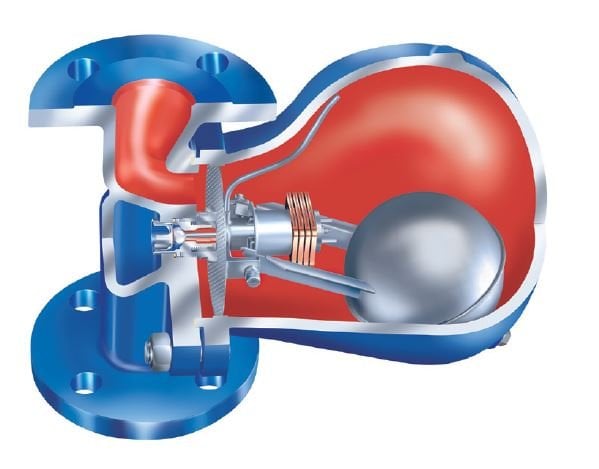

Float Steam Trap Working Principle
Float steam trap works according to the amount of condensate formed in the system. It changes the position of the float accordingly. When the condensate increases, the float rises and opens the discharge line, and when steam comes, it closes and prevents leakage. In this way, energy losses are prevented and the equipment is protected. It provides extra safety and ease of maintenance thanks to its built-in check valve function and integrated strainer.
Technical Specifications
Body and Cover: EN-JS1049 Ductile Iron
Inner Parts: .4301 (AISI304) Stainless Steel / TB10-85 (corrosion resistant bi-metal)
Staint Holder: .4301 (AISI304) Stainless Steel
Connection Type: Flanged
Nominal Diameter: DN
Pressure Class: PN
Max. Operating Temperature: °C (22 barg), 250 °C (32 bar@g)
Controller Options: R2, R4, R8, R13, R22, R
Mounting Position: Standard vertical, optional horizontal
Additional Functions: Internal check valve, internal strainer, flow saptırıcı
Şamandıralı Kondenstop Kullanım Alanları
Enerji Santralleri: Buhar kazanları ve türbin sistemlerinde kondens , . systems
Food and Beverage Production: Hygienic steam applications
Heating Systems: Industrial steam circuits and heat exchangers
Paper Industry: Lines requiring continuous and reliable condensate control
ARI CONA S 45.631-1 PN40 DN15 Float Steam trap offers maximum efficiency in industrial facilities with its high temperature and pressure resistant structure, ease of maintenance and integrated security functions. ORFA This product, which you can obtain with industrial
assurance, is the ideal solution for energy saving and system security. Sürekli ve güvenilir kondens kontrolü gerektiren hatlar
ARI CONA S 45.631-1 PN40 DN15 Şamandıralı Kondenstop, yüksek sıcaklık ve basınca dayanıklı yapısı, bakım kolaylığı ve entegre güvenlik fonksiyonları ile endüstriyel tesislerde maksimum verimlilik sunar. ORFA Endüstriyel güvencesiyle temin edebileceğiniz bu ürün, enerji tasarrufu ve sistem güvenliği için ideal çözümdür.
