ARI-CONA®-S 45.631-1 Şamandıralı Kondenstop (Buhar Kapanı) Flanşlı PN40 DN50
ARI-CONA®-S 45.631-1 Float Trap Flanged PN40 DN
ORFA Industrial ARI-CONA®-S 45.631-1 Float Steam Trap, offered for sale by Mamüller Sanayi ve Ticaret A.Ş. , is a high-performance product developed to provide reliable and efficient condensate discharge in industrial steam systems. It offers long-lasting use with its flange connection, solid body structure and stainless steel internal parts.

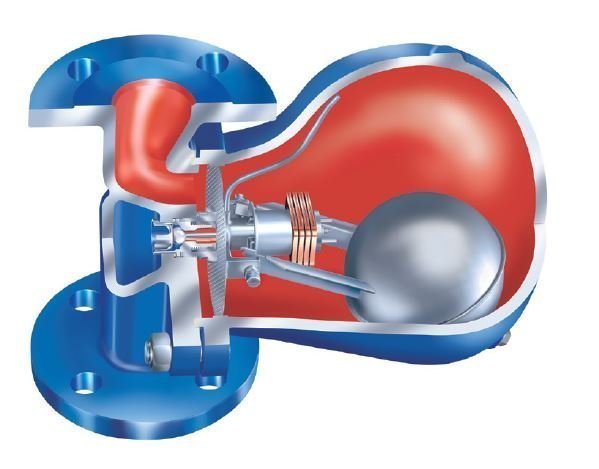

ARI-CONA®-S Float Trap Working Principle
Float steam trap changes the position of the float according to the amount of condensate formed in the system. When the condensate increases, the float rises and opens the discharge line, and when steam comes, it closes and prevents leakage. In this way, energy losses are prevented and the equipment is protected. It provides extra safety and ease of maintenance thanks to its built-in check valve function and integrated strainer. Cover:
EN-JS1049 Ductile Iron
Internal Parts: .4301 (AISI304) Stainless Steel / TB10-85 (corrosion resistant bi-metal)
Strainer: .4301 (AISI304) Stainless Steel
Connection Type: Flanged
Nominal Diameter: DN
Pressure Class: PN
Max. Operating Temperature: °C (22 bar@g), 250 °C (32 bar@g)
Controller Options: R2, R4, R8, R13, R22, R
Mounting Position: Standard vertical, optional horizontal
Additional Functions: Internal check valve, internal strainer, flow diverter
ARI-CONA®-S Float Steam Trap Usage Areas Power Plants:
Condensate in steam boilers and turbine systems , . systems
Food and Beverage Production: Hygienic steam applications
Heating Systems: Industrial steam circuits and heat exchangers
Paper Industry: Lines requiring continuous and reliable condensate control
ARI-CONA®-S 45.631-1 PN40 DN50 Float Steam trap offers maximum efficiency in industrial facilities with its high temperature and pressure resistant structure, ease of maintenance and integrated security functions. ORFA This product, which you can obtain with industrial
assurance, is the ideal solution for energy saving and system security. Endüstriyel buhar devreleri ve ısı eşanjörleri
Kağıt Endüstrisi: Sürekli ve güvenilir kondens kontrolü gerektiren hatlar
ARI-CONA®-S 45.631-1 PN40 DN50 Şamandıralı Kondenstop, yüksek sıcaklık ve basınca dayanıklı yapısı, bakım kolaylığı ve entegre güvenlik fonksiyonları ile endüstriyel tesislerde maksimum verimlilik sunar. ORFA Endüstriyel güvencesiyle temin edebileceğiniz bu ürün, enerji tasarrufu ve sistem güvenliği için ideal çözümdür.
| Body Material | : | Ductile Iron |
| Pressure Class (PN) | : | PN 40 |
| Nominal Diameter (DN) | : | DN 50 |
