ARI CONA S 45.631-2 Float Trap Thread PN40 1 1/2''
0 - Comment / Read Comments
ARI CONA S 45.631-2 Float Trap Gear PN40 1 1/2"
ARI CONA S 45.631-2 float trap is an industrial solution that provides reliable steam and condensate discharge under high temperature and pressure. It offers long-lasting use with its durable steel body and stainless internal parts. It increases system safety and efficiency thanks to its built-in check valve, strainer and flow diverter features. ORFA Industrial Products Industry and Trade Inc. This product, offered for sale by , is a professional equipment suitable for different process needs.

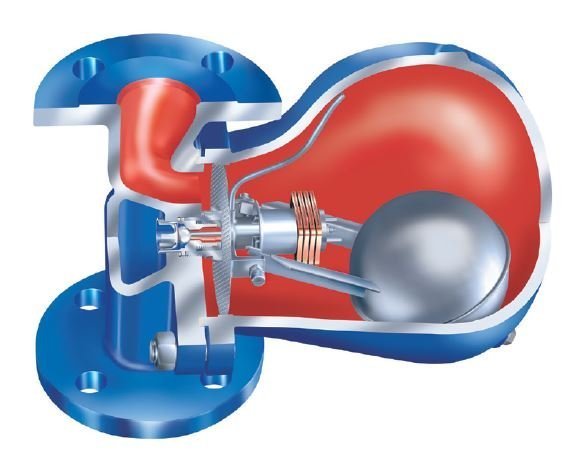

Float Steam Trap Working Principle
The float trap prevents the loss of steam while automatically evacuating the condensate accumulated in the system. The float inside opens when the condensate level rises and provides drainage; When steam comes in, it closes and prevents energy loss. The check valve function prevents reverse flow while the internal strainer protects the system. Thanks to the flow diverter, a more stable and reliable operation is achieved.
Specification
Body: .0460 Forged Steel
Cover: .0619+N Cast Steel
Internal Parts: .4301 (AISI304) Stainless Steel / TB10-85 Bimetal
Strainer: .4301 (AISI304) Stainless Steel
Link: Gear
Connection Size: 1/2"
Pressure Class: PN
Max. Operating Temperature: °C (21 bar@g), 250 °C (32 bar@g)
Controller Options: R2, R4, R8, R13, R22, R
Mounting Position: Standard vertical, optional horizontal
Additional Functions: Internal check valve, internal strainer, flow diverter
Usage Areas of Float Trap
Steam lines and condensate drain systems
Power plants and heating plants
Petrochemical and chemical industry
Textile factories and process lines
Paper, food and pharmaceutical production facilities
HVAC and industrial heating applications
ARI CONA S 45.631-2 float trap is a long-lasting and reliable solution with its durable material and structure suitable for high pressure and temperature. ORFA Industrial Products Industry and Trade Inc. . This product, offered with assurance, is the ideal choice to increase efficiency and ensure operational safety in industrial steam systems.
| Tooth Measurement | : | 1 1/2'' |
| Pressure Class | : | PN 40 |
