ARI CONA SC 42.636-2 Fluid Thrower Gear with Float PN16 3/4''
0 - Comment / Read Comments
Category
Brand
Stock Code
708A120700602
Warranty Period
24 Month
ARI CONA SC 42.636-2 Float Fluid Thrower Gear PN16 3/4"
ARI CONA SC 42.636-2 float liquid thrower is a high-tech equipment that provides reliable liquid discharge in industrial steam and condensate lines. ORFA This product, offered for sale by Endüstri Mamüller Sanayi ve Ticaret A.Ş , stands out with its durable material structure and high performance. Thanks to its compact design, it can be easily installed even in narrow spaces.

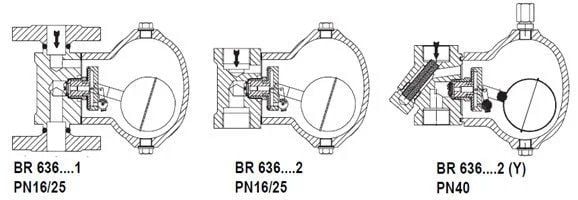

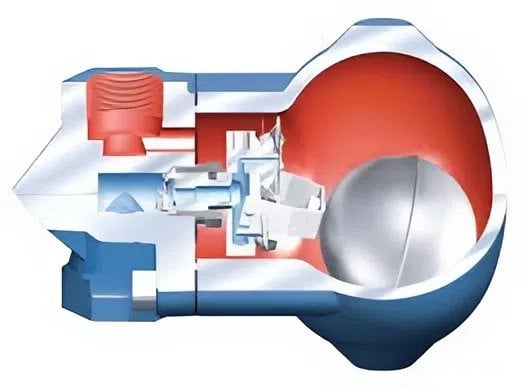

Float Liquid Thrower Working Principle
The float mechanism sensitively detects the formation of condensate and automatically drains the liquid. The stainless steel float and non-return protection used in the internal parts ensure long-lasting and reliable operation. Thanks to the check valve function, backflow is prevented and system efficiency is maintained.
Specification
Body: .0460 Forged Steel
Cover: EN-JS1049 Ductile Iron
Internal Parts: .4301 (AISI304) Stainless Steel
Return Protection: .4016 (AISI430) Stainless Steel
Connection Type: Thread
Connection Size: /4"
Controller: R4, R
Maximum Operating Temperature: °C (range 4-14 bar@g)
Function: Check valve function available
Mounting Position: Standard vertical, optional horizontal
Float Liquid Thrower Usage Areas
Steam systems and condensate lines
Petrochemical and chemical industry
Power plants
Textile factories
Heating and air conditioning systems
Paper and food production facilities
ARI CONA SC 42.636-2 float liquid shooter offers a long-lasting, reliable and efficient solution with its high quality materials and engineering design. ORFA This product, delivered to customers with the expertise of Industrial , is one of the ideal choices for the safety and energy efficiency of industrial facilities.
| Tooth Measurement | : | 3/4'' |
| Pressure Class | : | PN 16 |
