ARI CONA SC 44.634-1 Float Trap Flanged PN25 DN25
0 - Comment / Read Comments
ARI CONA SC 44.634-1 Float Trap Flanged PN25 DN
ARI CONA SC 44.634-1 Float Steam Trap is a high-performance product designed to safely and efficiently discharge condensed steam in steam systems. It provides high reliability in industrial steam lines with its flange connection, durable body structure and long-lasting internal parts. ORFA This product, offered for sale by Endüstri Mamüller Sanayi ve Ticaret A.Ş. , offers maximum durability, especially in high pressure and temperature conditions.

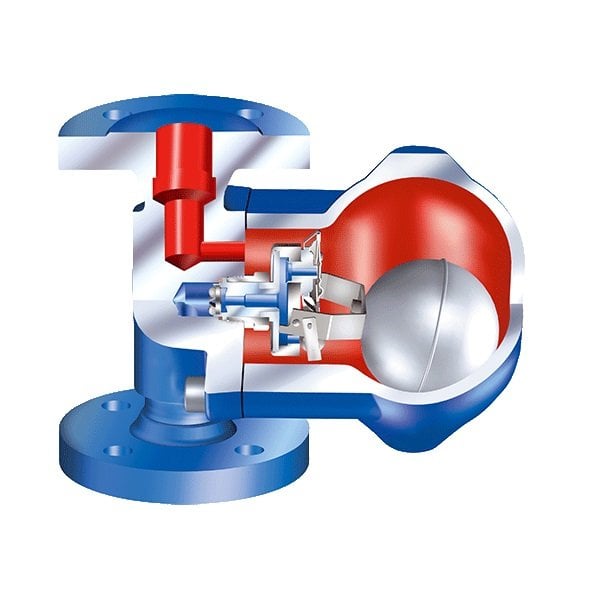

Float Steam Trap Working Principle
The float trap automatically opens and closes according to the level of condensate formed in the steam line. The float inside rises and falls according to the amount of condensate and activates the discharge mechanism with this movement. Thus, while only condensate is discharged, live steam is ensured to remain in the system. The built-in check valve function prevents backflow, while the flow diverter optimizes the direction of steam and condensate.
Specification
Body: .0460 Forged Steel
Cover: .0619+N Cast Steel
Inner Parts/Capsule: .4301 (AISI304) Stainless Steel / Hastelloy
Connection: Flanged
Nominal Diameter: DN
Pressure Class: PN
Controller: R4, R14, R
Maximum Operating Temperature:
°C (14 barg)
°C (21 barg)
Additional Functions: Check valve function, flow diverter
Mounting Position: Standard vertical, optional horizontal
Usage Areas of Float Trap
Condensate drain in steam lines
Power plants and boiler rooms
Petrochemical plants
Textile and food industry production lines
Heating and air conditioning systems
Compressed steam applications
ARI CONA SC 44.634-1 Float Trap guarantees reliable operation even in the most challenging industrial conditions with its high pressure class (PN25) and strong material structure. ORFA Endüstri Mamüller Sanayi ve Ticaret A.Ş. This product, which you can obtain with its assurance, increases system efficiency and reduces maintenance costs.
| Diameter-Dn | : | DN 25 |
| Pressure Class | : | PN 25 |
