ARI CONA SC 45.634-1 Float Trap Flanged PN40 DN
ARI CONA SC 45.634-1 Float Trap Flange PN40 DN20 is a superior quality product that provides reliable discharge in steam and condensate lines and stands out with its high pressure and temperature resistance. It offers long-lasting use thanks to its durable forged steel body, stainless steel internal parts and integrated strainer structure. ORFA This steam trap, offered for sale by Endüstri Mamüller Sanayi ve Ticaret A.Ş. , is designed to increase energy efficiency and keep system security at the maximum level.
Float Steam Trap Working Principle

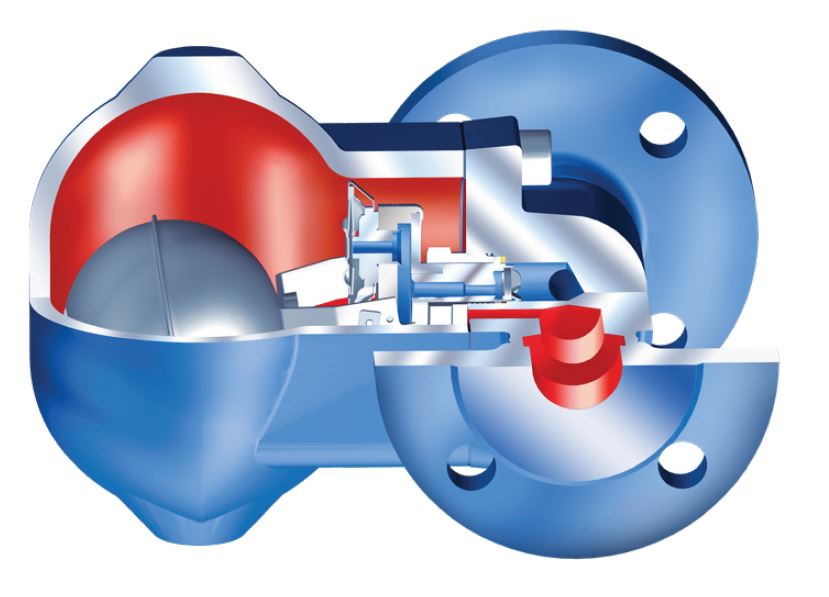

This float trap has a mechanical system that works depending on the condensate level. When condensate forms in the steam line, the float rises and opens the discharge mechanism; When steam comes in, it closes and prevents steam loss. In addition, thanks to the integrated thermostatic air and gas discharge mechanism, rapid evacuation of the first air and gases is ensured when the system is commissioned. Equipped with built-in check valve function, flow diverter and strainer, the structure supports smooth and reliable operation of the line.
Specification
Body: .0460 Forged Steel
Cover: .0619+N Cast Steel
Inner Parts/Capsule: .4301 (AISI304) Stainless Steel / Hastelloy
Strainer: .4301 (AISI304) Stainless Steel
Strainer Plug: .4541 (AISI321) Stainless Steel
Connection: Flanged
Pressure Class: PN
Nominal Diameter: DN
Controller: R4, R14, R21, R
Max. Operating Temperature: °C (21 barg), 250 °C (28.3 barg)
Air and Gas Discharge Mechanism: Thermostatic capsule
Additional Functions: Built-in check valve, flow diverter, integrated strainer
Mounting Position: Standard vertical, optional horizontal
Usage Areas of Float Trap
Steam boilers and distribution lines
Textile industry steam applications
Petrochemical and refinery facilities
Power plants and process lines
Paper and food production facilities
HVAC and industrial heating systems
ARI CONA SC 45.634-1 Float Trap Flange PN40 DN20 is a professional solution that can be used safely in industrial systems with its high safety standards, long-lasting material structure and design that increases energy efficiency. ORFA Endüstri Mamüller Sanayi ve Ticaret A.Ş. adds value to your business with its assurance.
| Diameter-Dn | : | DN 20 |
| Pressure Class | : | PN 40 |
