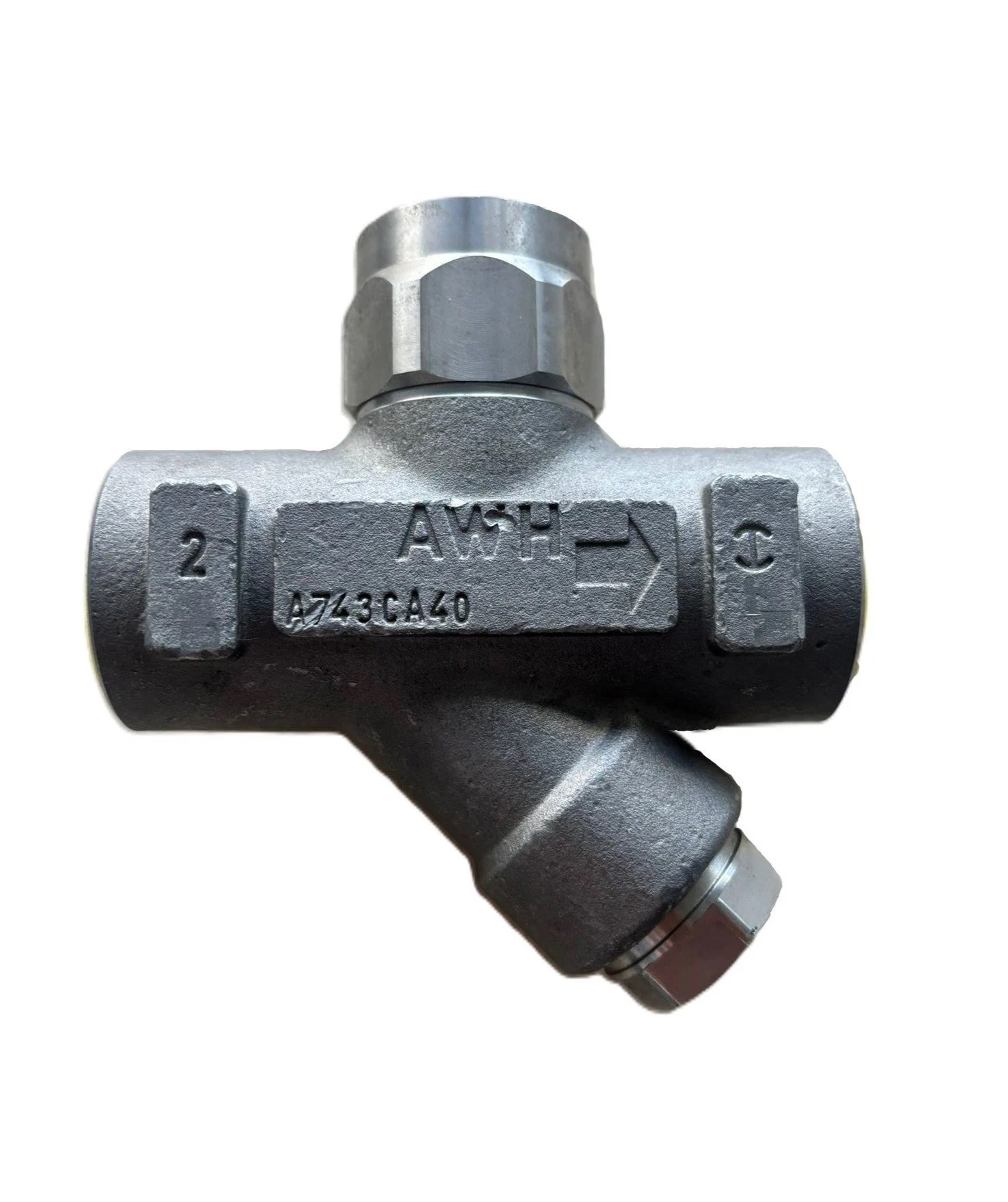

ARI CONA TD 56.641-2 R42 Thermodynamic Steam Trap 1" - PN63

Stainless Steel Body | With Outside Strainer (Fig. 641) | ORFA Industrial Assurance

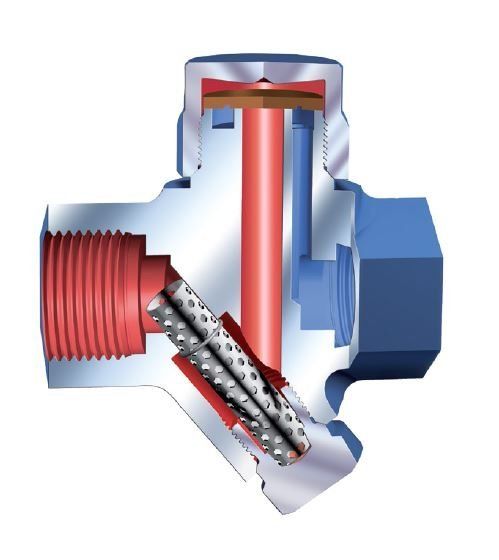

The ARI CONA TD 56.641-2 R42 thermodynamic steam trap is a reliable industrial solution designed to effectively discharge condensate in steam systems. Thanks to its durable 1.4006 stainless steel body, this thermodynamic steam trap offers exceptional longevity under high pressure and temperature. Every thermodynamic steam trap offered by ORFA Industrial is built to increase energy efficiency and ensure operational safety. Utilizing the velocity difference between steam and condensate, this thermodynamic steam trap successfully prevents the passage of steam. Equipped with an integrated non-return protection function, this thermodynamic steam trap prevents reverse flow and filters particles with its outside strainer. Investing in the right thermodynamic steam trap is the most rational step for your process security.

Technical Specifications and Materials

Product Type: Stainless steel thermodynamic steam trap
Body Material: 1.4006 Stainless Steel
Connection Type and Size: Screwed Sockets (Rp/NPT) - 1" (DN25)
Pressure Class: PN63 capacity thermodynamic steam trap
Allowable Differential Pressure (ΔPMX): 42 bar (R42 Controller)
Max. Allowable Temperature (TMA): 400 °C at 42 bar pressure
Max. Allowable Pressure (PMA): 63 bar (from -10 to 120 °C)
Additional Features: Outside strainer and integrated check valve function

Application Areas

High-performance thermodynamic steam trap applications in steam lines.
Reliable thermodynamic steam trap usage in petrochemical and food industries.
Power plants, high-pressure process equipment, and boiler systems.

Body Material	:	Stainless
Pressure Class (PN)	:	PN 63
Thread Size	:	1''
