ARI-FABA®-Plus 12.046 Metal Bellows Valve DN20 PN16

ARI-FABA®-Plus 12.046 Metal Bellows Valve DN20 PN16

ORFA Industrial – Ultimate Leak Tightness

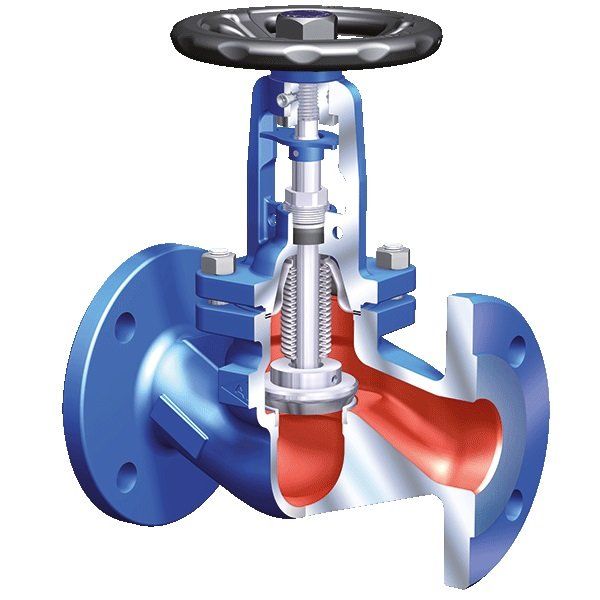

For safe control of critical fluids in industrial plants, the Metal Bellows Valve manufactured with ARI-Armaturen quality is an ideal solution. This DN20 PN16 Metal Bellows Valve offers superior performance especially in steam, hot water, gas and aggressive chemical processes. Thanks to metal bellows technology, it is significantly more leak-tight and durable compared to conventional packing systems. Each Metal Bellows Valve has low emission values proven by EN ISO 15848-1 and TA-Luft TÜV certificates. This Metal Bellows Valve model offers high mechanical strength with a cast iron body (EN-JL1040) and ductile iron bonnet (EN-JS1049). The double stainless steel bellows (1.4571 AISI 316Ti) guarantee leak tightness, while the conical plug and seat (1.4021+QT AISI 420) ensure full shut-off and long service life. This Metal Bellows Valve, available from ORFA Industrial stocks, is equipped with a grease nipple, rotation lock and mechanical stroke indicator to minimize maintenance needs. Choosing a reliable Metal Bellows Valve for your project directly reduces operating costs and increases process safety. This Metal Bellows Valve, used in your installation, is fully compliant with industrial standards and is easy to operate with a handwheel. Each Metal Bellows Valve unit is fitted with a pressed steel handwheel for sizes DN15-DN125, and a cast iron handwheel for larger diameters. This Metal Bellows Valve provides reliable leak tightness even under high temperature and pressure, making it a preferred choice for critical lines.

With ARI-Armaturen Metal Bellows Valve solutions, ensure safe and leak-tight flow management in your installation.
