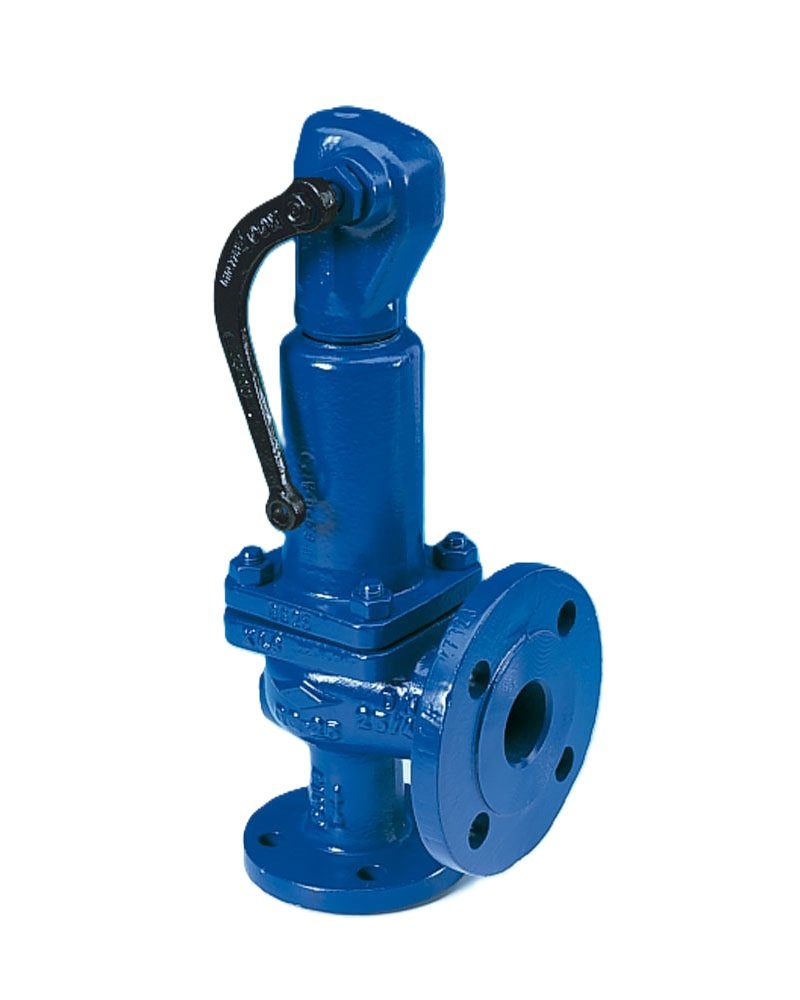

ARI-SAFE 12.924 Oransal Kalkışlı Emniyet Ventili DN100 PN16

ARI-SAFE 12.924 Proportional Release Safety Valve DN100 PN16: Reliable Pressure Protection in Industrial Systems

ARI-Armaturen is a world-renowned German brand of industrial valves and armatures. ARI-SAFE 12.924 Proportional Release Safety Valve is a spring loaded proportional departure safety valve designed to protect the system against sudden pressure increases in the systems. It is used to protect the system safely in undesirable situations such as human errors or increased ambient temperature in steam-gas systems. This Safety Valve is used in large-scale lines with its size

DN100 (Nominal Diameter 100 mm / 4 inç) , while PN16 (16) bar) pressure class indicates that it can operate safely up to 16 bar nominal pressure. ARI-SAFE 12.924 What is a Safety Valve and How? Does it work?

A safety valve is a mechanical valve that automatically opens and relieves excess pressure when the pressure in the system rises above a preset safe limit.

"Proportional start" means that the valve opens gradually in proportion to the pressure increase, preventing sudden pressure drops. Advantages: Proportional Release Design:

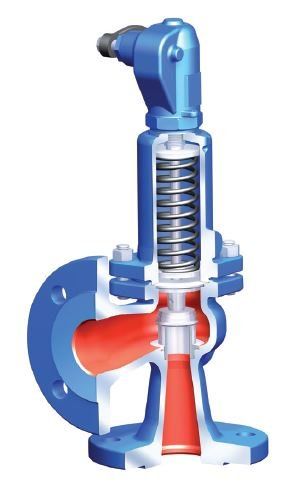

Thanks to its spring-loaded structure, it opens in proportion to the increase in system pressure, providing a more stable pressure relief.

• Durable Material: Fig. 12.924 The body and cover of the PN

• model are made of EN-JL1040 Iron Casting . This ensures the valve has superior resistance to harsh industrial conditions. High Pressure Resistance (PN16): Resistant to 16 bar working pressure, making the valve suitable for medium pressure systems

• High Temperature Resistance: Up to maximum

• °C with cast iron body material reliable performance at high temperatures Fluid Compatibility: Product type with open cover and open lifting device for steam, natural gas and similar fluids must be selected.

• Connection Type: It is mounted on the pipeline with a flange connection.

• Corrosion Preventive Measures: A discharge hole must be opened under the pipe after the outlet flange where it occurs to prevent condensate accumulation and consequently corrosion. Areas:

• ARI-SAFE 920 series safety valves are widely used in industrial applications where pressure is critical: Energy production

Refineries

Petrochemical plants

• Chemistry industry

• Food plants

• Paper mills

• Kimya sektörü

• Gıda tesisleri

• Kağıt fabrikaları
