ARI® SAFE 35.902 Full Lift Safety Valve PN40 DN50/80
0 - Comment / Read Comments
Category
Brand
Stock Code
708A110101006
Warranty Period
24 Month

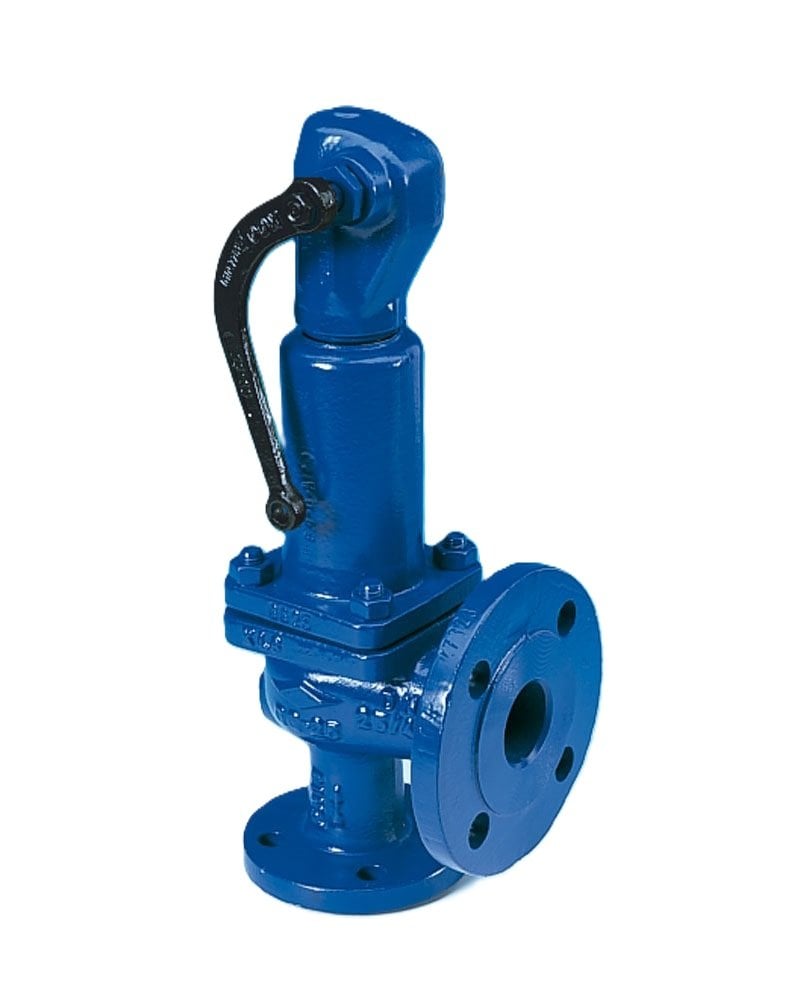

ARI® SAFE 35.902 Full Lift Safety Valve PN40 DN50/80
ARI® SAFE 35.902 Full Lift Safety Valve is a high-tech safety element designed to ensure safety in high pressure and temperature controlled industrial systems. ORFA Industrial Products Industry and Trade Inc.
. This safety valve, offered with assurance, provides effective protection against excessive pressure in your installations. It offers high performance and reliability with its strong body structure, stainless steel internal parts and long-lasting spring system.
Working Principle The safety valve automatically opens and relieves the excess pressure when the pressure in the system exceeds the maximum allowed value. ARI® SAFE 35.902 model effectively protects the system by performing rapid and full opening in case of sudden pressure increases, thanks to its full lift structure. When the pressure returns to normal, the valve automatically closes and ensures that the system continues to operate balancedly.
Technical Specifications Body:
1.0619+N Cast Steel
Cover: EN-JS1049 Ductile Iron
Inner Part
: 1.4021+QT (AISI 420) Stainless Steel
Sit: 1.4571 (AISI316Ti) Stainless Steel
Disc:
1.4122 (AISI302) Stainless Steel
Spring: FDSiCr/51CrV4, 1.8159
Connection Type:
Flanged
Nominal Diameter:
DN50/80
Maximum Operating Temperature
: 450 °C Pressure Class:
| Body | : | Steel Casting |
| Pressure Class | : | PN 40 |
