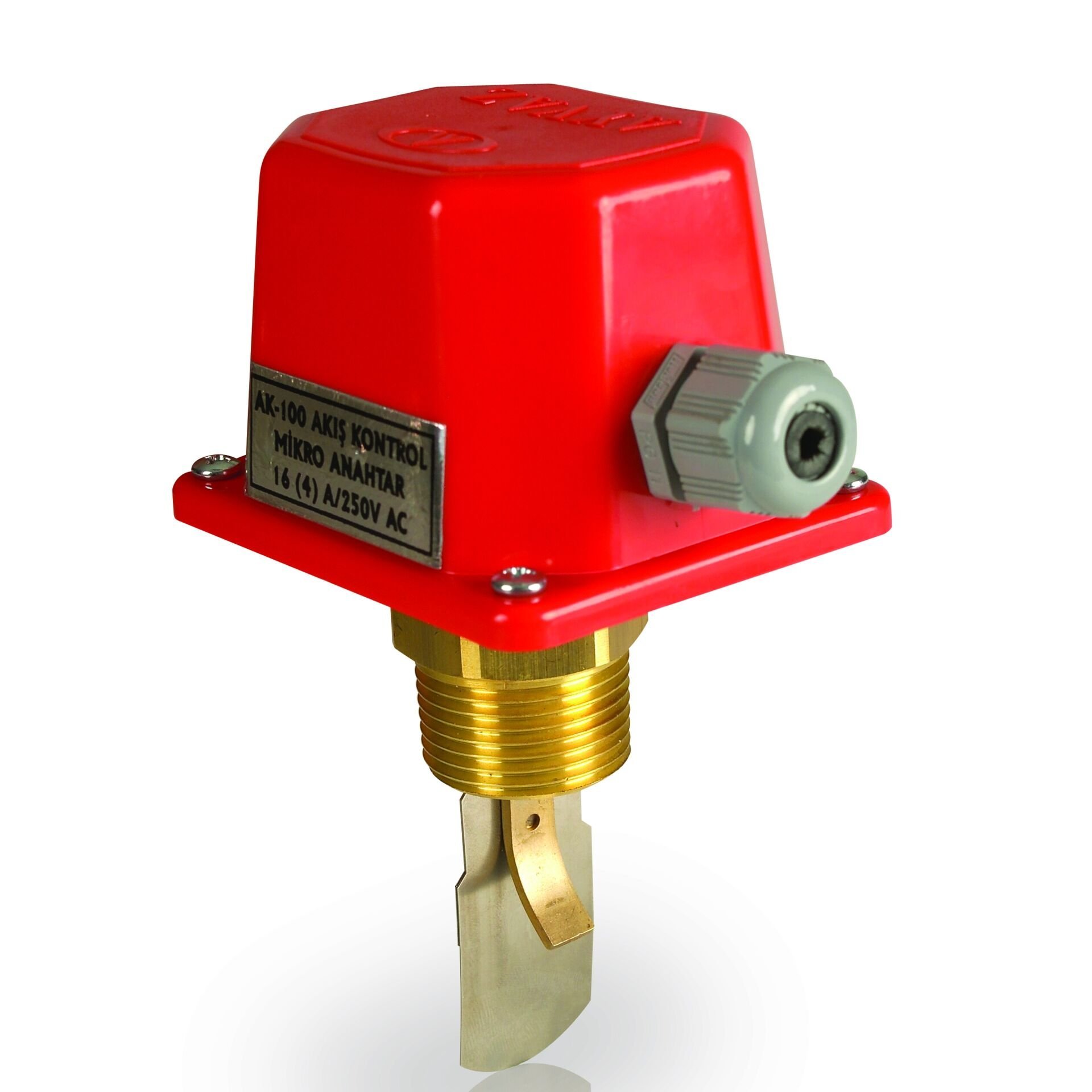

Ayvaz AK-100 Flow Switch 1''
%65 Discounted Product
0 - Comment / Read Comments
169,07 USD
59,17 USD
Category
Brand
Stock Code
704700000010
Price
140,89 USD + VAT
* Installments starting from 59,17 USD!
Add to Cart
Request a Quote
You can send us any questions you have about technical support, product information, or general topics. Our experts will get back to you as soon as possible.
AK-100 Flow Switch
The AK-100 Flow Switch, offered by ORFA Industrial Products Industry and Trade Inc., is used as a safety device or to signal the presence of current in heating, ventilation, cooling, and other installations. This device is designed as a two-position electromechanical regulator, constructed from precision components and equipped with electrical control hardware.
Flow Switch Structural Features:
The AK-100 Flow Switch, with its robust and durable construction, ensures long-lasting use. The device's body is made of St. 37.2 carbon steel, the cover is made of ABS, the seal is made of NBR, and the plates are made of AISI 304 stainless steel. These high-quality materials ensure reliable performance even under harsh operating conditions.
Flow Switch Installation
Installation of the AK-100 Flow Switch is extremely simple. The fluid direction must correspond to the direction indicated by the arrow on the device. The device contains three paddles, which can be adjusted to suit the pipe diameters:
For 1" pipes, remove the 2 largest pallets.
For 2" pipes, remove the largest pallet.
For 3" pipes, use all 3 pallets.
For 3", 4" and 5" pipes, use the additionally supplied pallet and shorten to 92, 117 and 143 mm.
For 8"-12" pipes, all additional pallets must be used.
Flow Switch Electrical Connection
The electrical connections of the AK-100 Flow Switch must be made in accordance with applicable standards and the intended use. To make the electrical connections, the device cover must be removed. The device is factory-set for minimum differential. If the values need to be adjusted, adjustments can be made using the screw next to the microswitch inside the cover.
Flow Switch Technical Specifications
Sheet Metal Body: St. 37.2 Carbon Steel
Cover: ABS
Gasket: NBR
Connection Union: 1” MS 58 Brass
Plates: AISI 304 Stainless Steel
Supply Voltage: 220 V
Application Line Diameter: DN25-DN300
Max. Operating Temperature: 90 ºC
Pressure Class: PN16
The AK-100 Flow Switch is a device that detects the flow state in a system by monitoring the movement of a fluid (liquid or gas). This device operates as a two-position electromechanical regulator, determining whether the fluid is at a specified speed or flow rate. In this process, the device ensures precise coordination between various components.
The operating mechanism of the AK-100 Flow Switch includes a series of sensitive components that detect the movement of the fluid and generate an electrical signal accordingly:
Micro Switch:
Electrical Signal:
Working Principle
The AK-100 Flow Switch is a device that detects the flow state in a system by monitoring the movement of a fluid (liquid or gas). This device operates as a two-position electromechanical regulator, determining whether the fluid is at a specified speed or flow rate. In this process, the device ensures precise coordination between various components.
Basic Working Mechanism
The operating mechanism of the AK-100 Flow Switch includes a series of sensitive components that detect the movement of the fluid and generate an electrical signal accordingly:
Pallet Mechanism:
The vanes inside the device are in direct contact with the fluid movement. These vanes, which can be adjusted to accommodate different pipe diameters, detect the fluid movement. The vanes must be installed in accordance with the fluid's direction of motion. When the fluid hits the vanes, the vanes change position, and this movement activates a mechanism within the device.
Micro Switch:
The movement of the paddles triggers a microswitch inside the device. This microswitch opens and closes in response to the fluid movement, generating an electrical signal. The position and sensitivity of the microswitch can be adjusted using an adjustment screw located inside the device's cover, allowing the device to adapt to different flow rates and pressure levels.
Electrical Signal:
The electrical signal generated by the microswitch's triggering is transmitted to the device's control circuit. This signal informs other connected control systems or alarm devices about the fluid's movement status. The device is factory-set to a minimum differential. This setting is optimized for standard applications but can be adjusted for specific requirements.
Areas of Use
The AK-100 Flow Switch can be used in a wide range of applications:
Heating Systems: Provides flow control in boilers and heating lines.
Ventilation Systems: Monitors and controls airflow in HVAC systems.
Cooling Systems: Determines whether there is flow in the cooling lines and ensures safety.
Industrial Installations: Used in industrial applications where any type of liquid flow needs to be controlled.
The AK-100 Flow Switch, offered by ORFA Industrial Products Industry and Trade Inc. , ensures safe and efficient operation of installations with its superior quality and performance. Its high durability and precise control features make it an indispensable solution for industrial applications.
