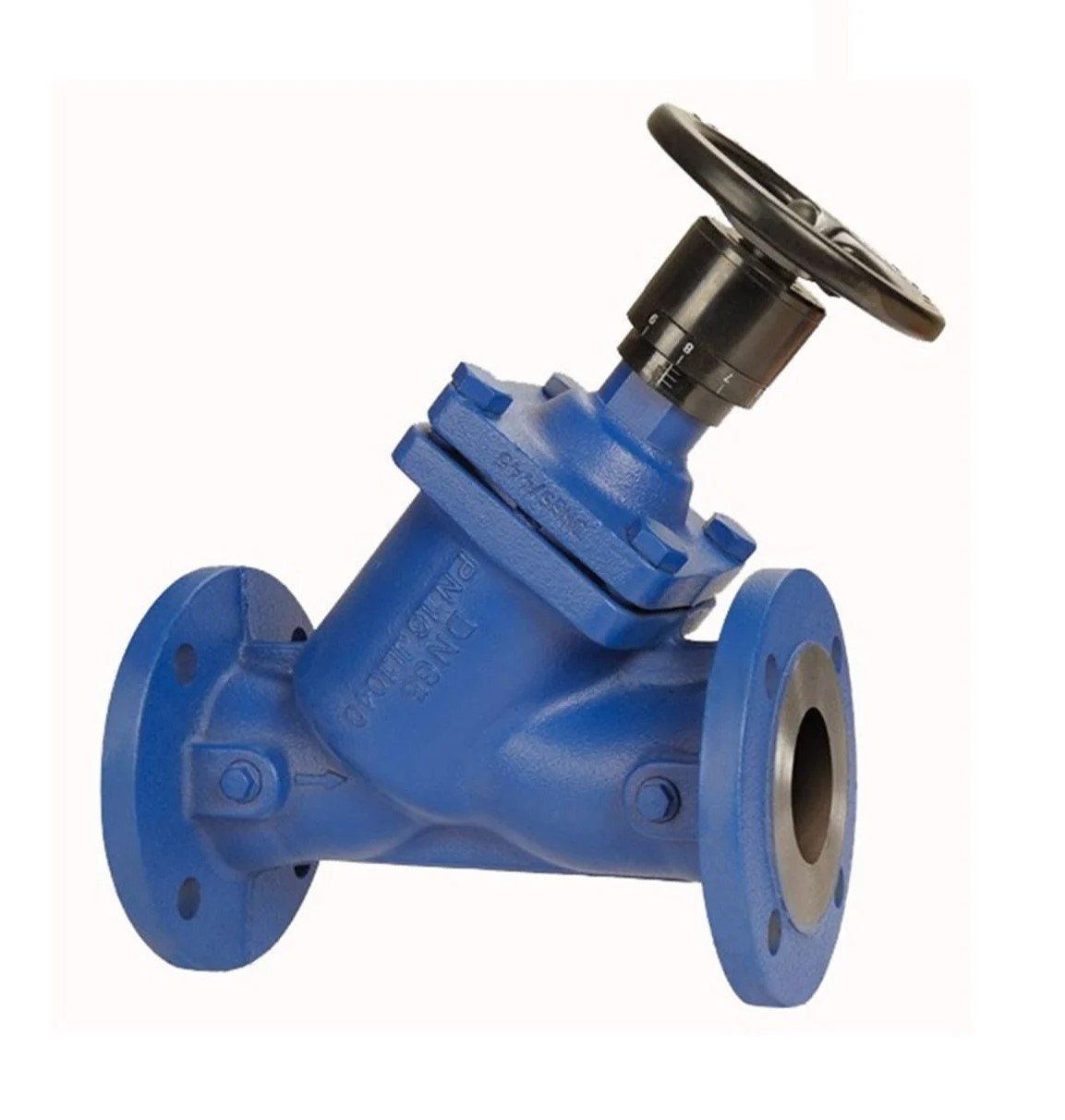

AYVAZ BSBV-200 Statik Balans Vanası Flanşlı PN16 DN150
AYVAZ BSBV-200 Static Balancing Valve Flanged PN16 DN
AYVAZ BSBV-200 Static Balance Valve is a control valve developed to eliminate flow imbalance, which is one of the biggest problems encountered in distribution systems. It offers long-lasting use with its flange connection structure and robust cast body. It protects the performance of the system by increasing energy efficiency in heating, cooling and air conditioning installations.
Static Balance Valve Working Principle
Static balance valves ensure that the desired flow rate values are kept constant by balancing the resistance differences occurring in different columns and branches of the system. With the adjustment made on the valve, the required Kv value is calculated and the valve is fixed in this position. In this way, the flow rate in accordance with the design values is guaranteed in the system. In addition, the set position is maintained thanks to the limit mechanism; the valve can be closed but not opened above the specified set point.
Specification
Model: BSBV-
Nominal Diameter: DN
Connection Type: Flanged
Compressive Strength: PN16 (Max. 16 bar)
Temperature Range: -10 ºC ~ +120 ºC
Body and Cover: GG25 Cast Iron
Disk: GG25 Cast Iron
Static Balance Valve Usage Areas
Heating and cooling systems
Industrial installations
Building mechanical installations
Air Conditioning (HVAC) systems
AYVAZ BSBV-200 Static Balancing Valve Flanged PN16 DN150 provides significant advantages in terms of energy efficiency, comfort and equipment life by balancing flow rates in installation systems. ORFA Endüstri Mamüller Sanayi ve Ticaret A.Ş. offers this quality product to its customers as a reliable supplier.
| Body Material | : | Casting |
| Pressure Class (PN) | : | PN 16 |
| Nominal Diameter (DN) | : | DN 150 |
