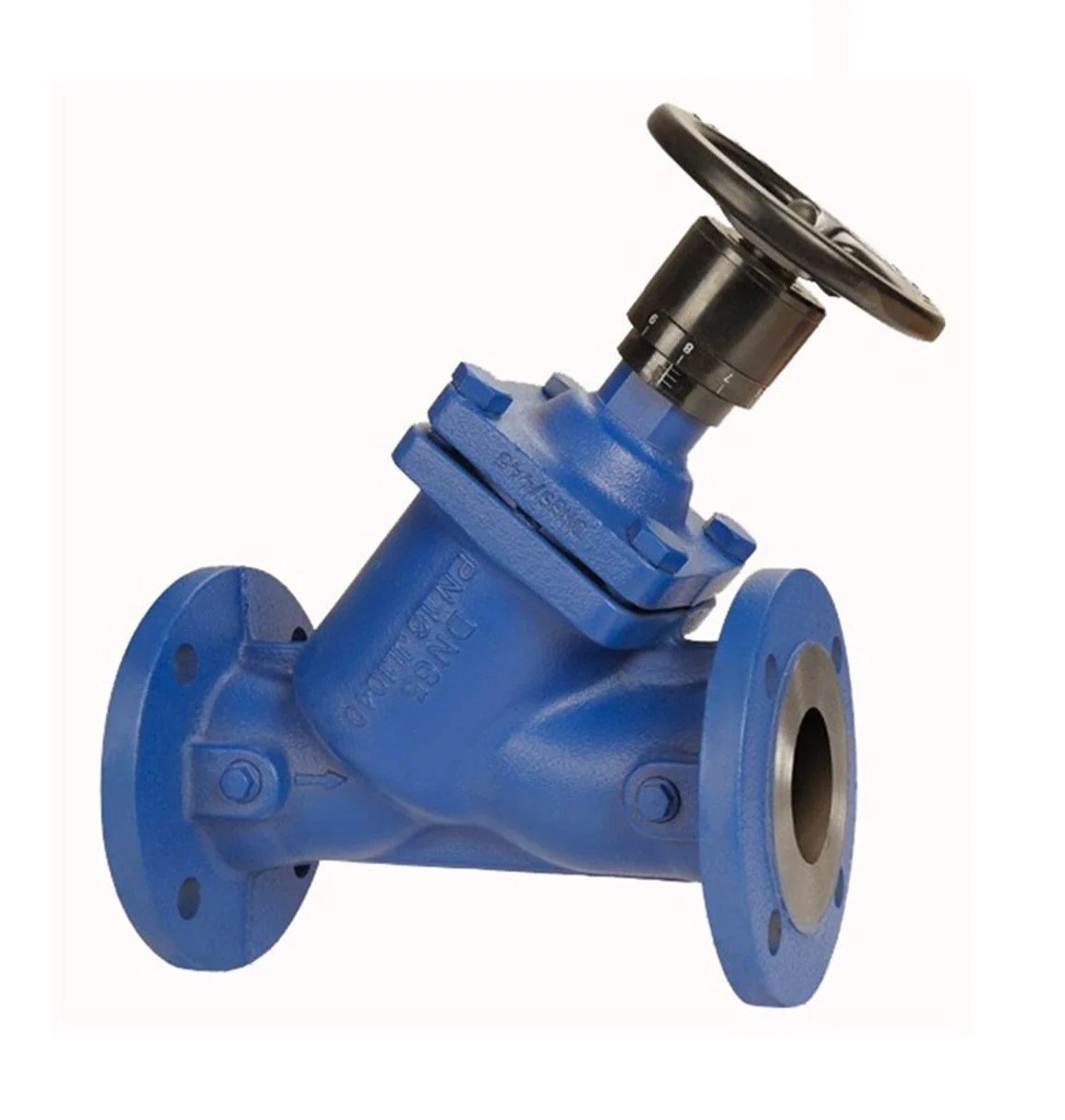

AYVAZ BSBV-200 Statik Balans Vanası Flanşlı PN16 DN65
0 - Comment / Read Comments
Request a Quote
You can send us any questions you have about technical support, product information, or general topics. Our experts will get back to you as soon as possible.
AYVAZ BSBV-200 Static Balancing Valve Flanged PN16 DN
AYVAZ BSBV-200 Static Balancing Valve is a control valve developed to eliminate flow imbalance, one of the biggest problems encountered in distribution systems. It offers long-lasting use with its flange connection structure and robust cast body. It protects the performance of the system by increasing energy efficiency in heating, cooling and air conditioning installations. It ensures that the desired flow rate values are kept constant by balancing the resistance differences. With the adjustment made on the valve, the required Kv value is calculated and the valve is fixed in this position. In this way, the flow rate in accordance with the design values is guaranteed in the system. In addition, the set position is maintained thanks to the limit mechanism; the valve can be closed but cannot be opened above the specified set point.
Specification
Model:
BSBV-
Nominal Diameter: DN
Connection Type: Flanged
Compressive Strength: PN16 (Max. 16 bar)
Temperature Range: -10 ºC ~ +120 ºC
Body and Cover: GG25 Peak Casting
Disk: GG25 Cast Iron
Static Balance Valve Usage Areas Heating and cooling systems
Industrial installations
Building mechanical installations
Air conditioning (HVAC) systems
AYVAZ BSBV-200 Static Balancing Valve Flanged PN16 DN65 provides significant advantages in terms of energy efficiency, comfort and equipment life by balancing flow values in installation systems.
ORFA Endüstri Mamüller Sanayi ve Ticaret A.Ş.
offers this quality product to its customers as a reliable supplier. ORFA Endüstriyel Mamüller Sanayi ve Ticaret A.Ş. , bu kaliteli ürünü müşterilerine güvenilir tedarikçi olarak sunmaktadır.
| Body Material | : | Iron Casting |
| Pressure Class (PN) | : | PN 16 |
| Nominal Diameter (DN) | : | DN 65 |
