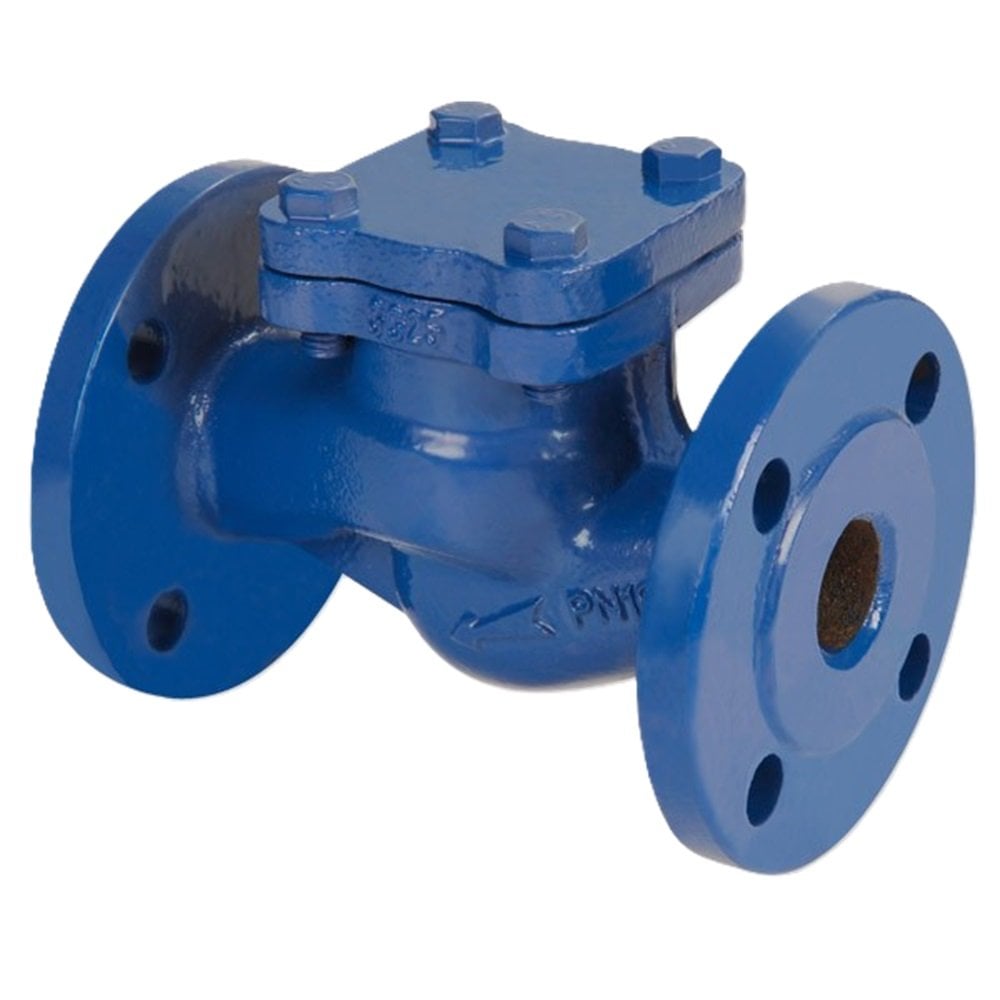

Ayvaz CLV-50 Flanged Lift Type Check Valve DN200 PN16
0 - Comment / Read Comments
Category
Brand
Stock Code
708170309110
Warranty Period
24 Month
Ayvaz CLV-50 Lift Type Check Valve Pn16: High Performance and Reliability
ORFA Industrial Products Industry and Trade Inc. offers high-quality lift-type check valves for a variety of industrial applications. Check valves are general-purpose valves suitable for liquids, gases, and steam. They increase operational safety and, depending on the situation, can replace complex valves.
The working part of a check valve is a hinged disc. This disc can move freely on a hinge pin in one direction. It operates automatically by fluid movement. When fluid flows in one direction, the disc opens, allowing passage. When flowing in the opposite direction, the disc closes, thus ensuring unidirectional flow in the line to which the check valve is installed.
Lift Type Check Valve Material and Structure
Body and Cover: Made of GG-25 Cast Iron material, it attracts attention with its durability and longevity.
Internal Parts: Superior protection against corrosion is provided by using stainless steel.
Lift Type Check Valve Technical Specifications
Connection Type: Flanged connection option offers easy assembly and disassembly.
Nominal Diameter Range: DN200
Pressure Values: Pressure resistance up to 16 bar maximum.
Temperature Range: Effective performance between -10 °C and 180 °C.
Lift Type Check Valve Usage Areas:
Steam systems
Superheated and hot water applications
Cold water systems
Other non-acidic fluids
Compressed air installations
Lift-type check valves increase system safety by preventing fluid backflow, particularly in steam systems and high-pressure applications. They also extend the life of installations and fixtures by protecting against sudden pressure fluctuations.
ORFA Industrial Products offers these products to its customers with high-quality standards, providing reliable and effective solutions. You can trust ORFA Industrial to provide the safe and durable lift-type check valve solutions the industry requires.
