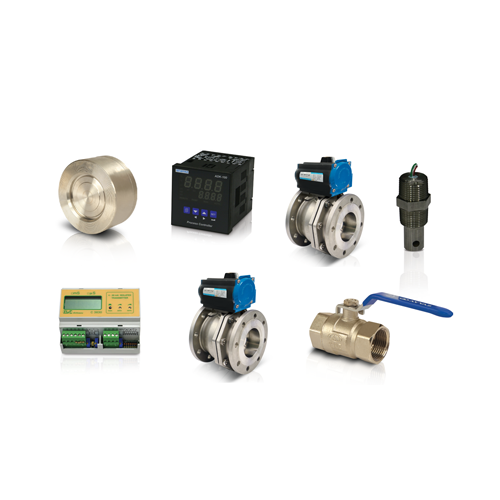

AYVAZ Kondens Kirlilik ve Ölçüm Kontrol Sistemi

AYVAZ CONDENSATE CONTAMINATION AND MEASUREMENT CONTROL SYSTEM

Intelligent Condensate Management for Steam Systems with ORFA Industrial Assurance

Control of condensate contamination is one of the most critical parameters in industrial steam systems, essential for maintaining boiler feedwater quality and extending system life. Leaks in coils or plate heat exchangers can cause process fluid to mix with condensate, suddenly increasing the level of condensate contamination. This disrupts the chemical balance of water returning to the boiler, leading to corrosion and scale buildup. At this point, the AYVAZ condensate contamination and measurement control system comes into play, precisely measuring the electrical conductivity of the condensate and continuously monitoring the condensate contamination level. When the measured conductivity exceeds a preset threshold, the system automatically opens the discharge valve, ensuring the contaminated condensate is expelled. This prevents contaminated condensate from reaching the boiler, extending its life and reducing maintenance costs.

The AYVAZ condensate contamination control system features an advanced conductivity probe with temperature compensation for accurate measurement even at varying temperatures. The probe is made of stainless steel with high corrosion resistance. The system can operate on 24 VDC or 220 VAC power and provides a relay output for external alarm or valve control. The threshold value is easily adjustable via a user-friendly interface. The system housing is available in aluminum or stainless steel options, designed for industrial environments with IP65 protection class for complete protection against dust and water.

This intelligent condensate contamination management system not only detects contamination but also contributes to energy efficiency. Clean condensate is allowed to return to the boiler, while contaminated condensate is automatically discharged. This process ensures continuous and reliable condensate contamination control in your steam system. Ideal for plant engineers, this system features easy installation and low maintenance requirements. The AYVAZ condensate contamination control system, available at ORFA Industrial stock, comes with spare parts and technical support.
