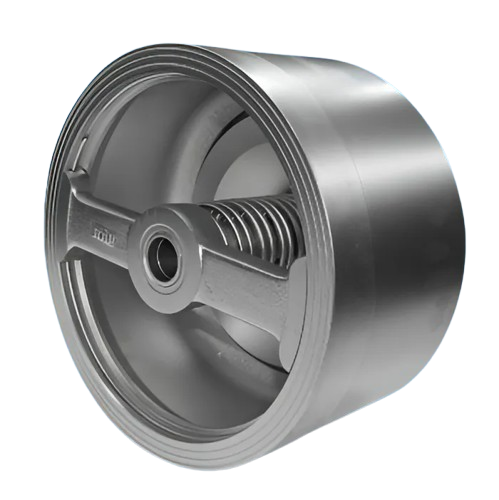

AYVAZ ÇV-11S/1 Stainless Disco Check Valve PN40 DN200
%62 Discounted Product
0 - Comment / Read Comments
2.963,89 EUR
1.126,28 EUR
Category
Brand
Stock Code
703500400023
Warranty Period
24 Month
Price
2.469,91 EUR + VAT
* Installments starting from 212,79 EUR!
Add to Cart
AYVAZ ÇV-11S/1 Stainless Disco Check Valve PN40 DN200 Reliable Backflow Protection at High Pressure – Compact and Efficient
AYVAZ ÇV-11S/1 Disco Check valve is a wafer type check valve model with a stainless steel body, used to prevent backflow in steam, liquid and gas systems, offered under the assurance of ORFA Endüstri Mamüller Sanayi ve Ticaret A.Ş. . With its PN40 pressure class and DN200 diameter, it can be used safely in medium and large diameter industrial lines.
The design of this model works with a hinged disc mechanism; The disc opens according to the flow direction, and in reverse flow it automatically closes, ensuring unidirectional operation of the system. Thanks to its compact structure, it saves installation space and time. It can be easily applied to all pipe systems with its wafer (between flange) type connection.
Optional EPDM or FKM O-ring gaskets provide sealing suitable for different media and temperature values. Specifications:
Model:
AYVAZ ÇV-11S/1 Disco Check valve is a wafer type check valve model with a stainless steel body, used to prevent backflow in steam, liquid and gas systems, offered under the assurance of ORFA Endüstri Mamüller Sanayi ve Ticaret A.Ş. . With its PN40 pressure class and DN200 diameter, it can be used safely in medium and large diameter industrial lines.
The design of this model works with a hinged disc mechanism; The disc opens according to the flow direction, and in reverse flow it automatically closes, ensuring unidirectional operation of the system. Thanks to its compact structure, it saves installation space and time. It can be easily applied to all pipe systems with its wafer (between flange) type connection.
Optional EPDM or FKM O-ring gaskets provide sealing suitable for different media and temperature values. Specifications:
Model:
ÇV-11S/ Diameter:
DN Pressure Class:
PN Body:
AISI 304 Stainless Steel Connection:
Wafer type (flange between) Operating Principle:
Hinged disk – automatic closing Temperature:
-10° / 300° Sealing Options:
EPDM O-ring: -50°C / +150°C (Water, steam, condensate)
-10° / 300° Sealing Options:
EPDM O-ring: -50°C / +150°C (Water, steam, condensate)
FKM O-ring: -25°C / +200°C (Gas, oil, air)
Disco Check Valve Usage Areas:
Iron-steel and mining industry
Iron-steel and mining industry
Heating and ventilation pipe lines
Oil and mineral processing plants
Paper and wood products industry
Textile process lines
Steam, water and condensate systems
Ship and maritime industry
AYVAZ ÇV-11S/1 Disco Check Valve is an ideal high performance, easy to install and prevent back flow, offered with the assurance of ORFA Industrial
It is an industrial armature. güvencesiyle sunulan, yüksek performanslı, montaj kolaylığı sağlayan ve geri akışı engelleyen ideal bir endüstriyel armatürdür.
It is an industrial armature. güvencesiyle sunulan, yüksek performanslı, montaj kolaylığı sağlayan ve geri akışı engelleyen ideal bir endüstriyel armatürdür.
| Diameter-Dn | : | DN 200 |
| Body | : | Stainless |
| Pressure Class | : | PN 40 |
