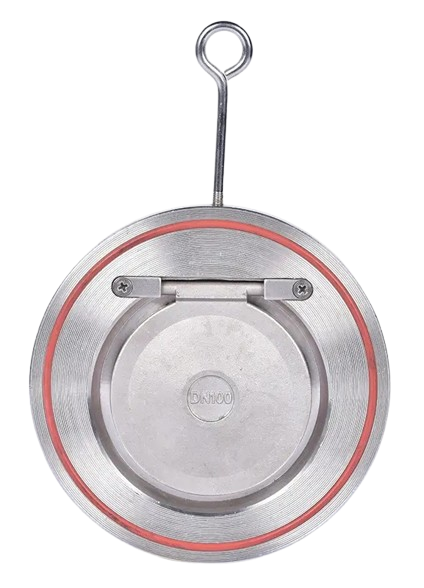

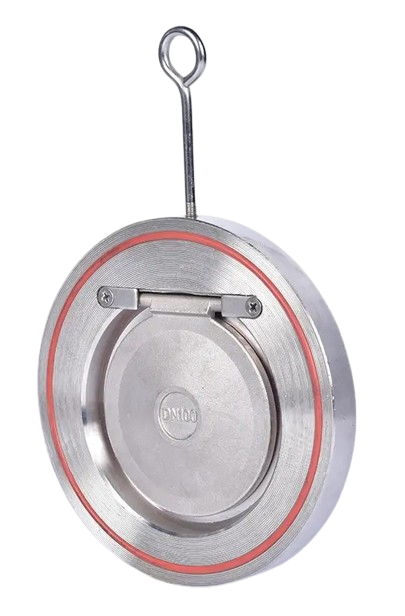

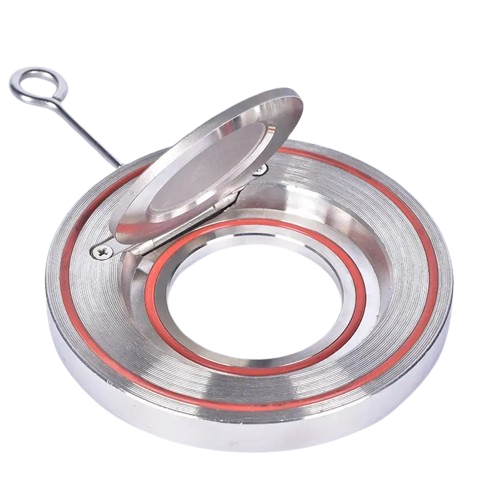

AYVAZ ÇV-33 Springless Wafer Shaker Check Valve PN16 DN100
%62 Discounted Product
0 - Comment / Read Comments
351,31 EUR
133,50 EUR
Category
Brand
Stock Code
708170307140
Warranty Period
24 Month
Price
292,76 EUR + VAT
* Installments starting from 133,50 EUR!
Add to Cart
AYVAZ ÇV-33 Springless Wafer Swing Check Valve PN16 DN100 Quiet and Reliable Backflow Prevention for High Flow Lines ORFA Industrial Products Industry and Trade Inc.
. It is a flap type check valve model that operates without the use of springs and is developed to prevent backflow silently and efficiently, especially in large diameter lines. It is an ideal solution in high flow systems with its DN100 diameter and PN16 pressure class. The spring-free design minimizes pressure losses and smoothes the flow flow. It has a compact structure thanks to wafer type (between flange) mounting and is suitable for both horizontal and vertical mounting. The disc only opens in the direction of flow to allow passage, and in the opposite direction it protects the system by automatically closing due to pressure.
Model:
ÇV-
. It is a flap type check valve model that operates without the use of springs and is developed to prevent backflow silently and efficiently, especially in large diameter lines. It is an ideal solution in high flow systems with its DN100 diameter and PN16 pressure class. The spring-free design minimizes pressure losses and smoothes the flow flow. It has a compact structure thanks to wafer type (between flange) mounting and is suitable for both horizontal and vertical mounting. The disc only opens in the direction of flow to allow passage, and in the opposite direction it protects the system by automatically closing due to pressure.
Model:
ÇV-
Diameter: DN
Pressure Class: PN
Body Material: AISI 316 stainless steel
O Ring: Viton
Disk Type: Springless jig
Disk Type: Springless jig
Connection Type: Wafer to flange
Sealing: With metal-to-metal or soft seal option
Operating Temperature: -10°C ~ +180°C
Suitable Fluids: Water, steam, gas, neutral liquids
Areas of Use: Water treatment plants
Cooling and heating systems
Cooling and heating systems
Fire systems
Power plants
Pump outlet lines
Marine and ship systems
Industrial process lines
AYVAZ ÇV-33 Springless Wafer Check Valve, ORFA Endüstri Mamüller Sanayi ve Ticaret A.Ş. It is a quiet, low-maintenance, high-efficiency backflow prevention solution that is offered with
assurance.
AYVAZ ÇV-33 Yaysız Wafer Çekvalf, ORFA Endüstriyel Mamüller Sanayi ve Ticaret A.Ş. güvencesiyle sunulan, sessiz çalışan, düşük bakım gerektiren, yüksek verimli bir geri akış önleme çözümüdür.
AYVAZ ÇV-33 Yaysız Wafer Çekvalf, ORFA Endüstriyel Mamüller Sanayi ve Ticaret A.Ş. güvencesiyle sunulan, sessiz çalışan, düşük bakım gerektiren, yüksek verimli bir geri akış önleme çözümüdür.
| Diameter-Dn | : | DN 100 |
| Body | : | Stainless |
| Pressure Class | : | PN 16 |
