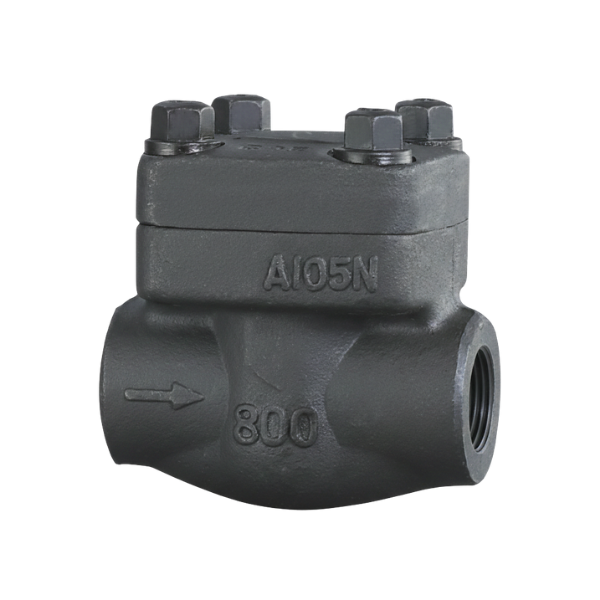

Ayvaz FPCV-20 Piston Tip Çekvalf API 602 1 1/2''

Ayvaz FPCV-20 Piston Check Valve API 602 1 1/2"

Reliable Flow Control in Petrochemical and Power Plants with ORFA Industrial

In industrial systems operating under high pressure and extreme temperature conditions, the piston check valve plays a critical role by instantly preventing reverse flow. The Ayvaz FPCV-20 series piston check valve fully complies with API 602 and ASME B16.34 standards, delivering flawless performance in superheated steam, superheated oil, and petrochemical lines. Manufactured from ASTM A182 F22 alloy forged steel, this piston check valve in Class 1500 pressure rating meets the demands of the most challenging industrial processes. Integrated into the system via socket weld connection, the professional piston check valve offers a long service life thanks to the superior hardness of the disc and seat surfaces coated with Stellite 6. Its mechanism provides complete tightness during backflow, maximizing system safety and efficiency. The Ayvaz piston check valve, readily available from ORFA Industrial stocks, has been reliably used in power plants, refineries, and oil processing lines through millions of operating cycles. The forged steel body provides much higher structural integrity and sealing assurance compared to cast alternatives, and this piston check valve exhibits excellent resistance to thermal fatigue. With a nominal diameter of DN40, this piston check valve is an ideal solution for medium-scale installations, stopping backflow even under low differential pressure. Trust Ayvaz quality to maximize your system's flow safety and benefit from professional piston check valve technology.

With Ayvaz piston check valve technology, ensure maximum flow safety and long-lasting line efficiency in your petrochemical and power plants.
