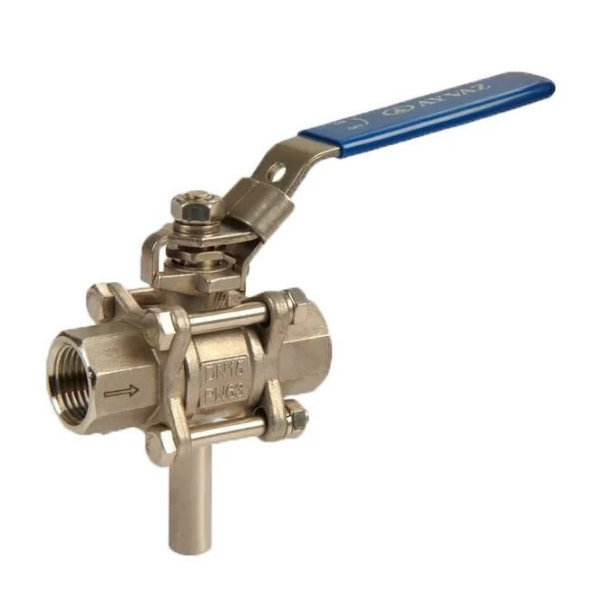

AYVAZ KTV-10 Trap Test Valve 3/4'' PN40
%62 Discounted Product
0 - Comment / Read Comments
215,44 EUR
81,87 EUR
Category
Brand
Stock Code
703989001002
Warranty Period
24 Month
Price
179,53 EUR + VAT
* Installments starting from 81,87 EUR!
Add to Cart
KTV-10 Steam Trap Test Valve
ORFA The Steam Trap Test Valve sold by Endüstri Mamüller Sanayi ve Ticaret A.Ş . is of great importance to ensure energy efficiency and continuity in steam systems. Ayvaz KTV-10 Steam Trap Test Valve Pn40 is designed to check whether steam traps, which play a critical role in steam systems, are working properly. This Steam Trap Test Valve enables continuous monitoring of traps within the system and prevents possible malfunctions and minimizes energy losses.
KTV-10 Pn 40 works on the principle of a ball valve and ensures that condensate or steam leakage, if any, is released to the condensate return line. When the handle of the Steam Trap Test Valve is in the open position, the system is active; When it is in the closed position, the operating mode of the steam trap and any steam leakage, if any, are detected through the discharge pipe. With this feature, KTV-10 Pn 40 provides significant energy savings by supporting the efficient operation of steam devices.
Ayvaz KTV-10 Pn 40, which stands out with its ease of installation and ergonomics of use, extends the life of your devices by detecting possible leaks in steam lines. To minimize the risk of mistake, it is recommended to connect the valve to the line at least half a meter from the steam trap. ORFA This premium valve from Industrial is the ideal solution for professionals seeking reliability and performance in industry.
Product Features:
Body Material: AISI304 Stainless Steel
Ball Material: AISI 304 Stainless Steel
Gasket Material: PTFE
Maximum Working Pressure: bar
Maximum Operating Temperature: ºC
Connection: Gear
Connection Dimension: /4"
Connection: Gear
Connection Dimension: /4"
Technical Information:
Trap Test Valve works on the ball valve principle. When the Steam Trap Test Valve is open, the system is active and the condensate discharged from the trap or steam leakage, if any, is directed to the condensate return line. When the valve is brought to the closed position, the discharge pipe of the valve is opened and thus the operating mode of the steam trap and any steam leakage are detected. In order to minimize the risk of error due to flash steam, it is recommended to connect the valve to the line at least half a meter from the steam trap.
Areas of Use :
Steam Systems: Ideal for testing the performance of steam traps in industrial steam lines.
Power Plants: Used to prevent steam leaks and energy losses.
Petrochemical Industry : Preferred to increase the reliability of steam circuits.
Food Processing: Used to provide trap control in processes using steam.
Paper and Pulp Mills: Used to increase energy efficiency in steam lines.
Ayvaz KTV-10 Steam Trap Test Valve plays a critical role in steam systems and has the potential to maximize energy efficiency and minimize operational costs while increasing system safety. ORFA Industrial Mamüller is proud to present you this high performance test valve.
| Tooth Measurement | : | 3/4'' |
| Body | : | Stainless |
| Pressure Class | : | PN 40 |
