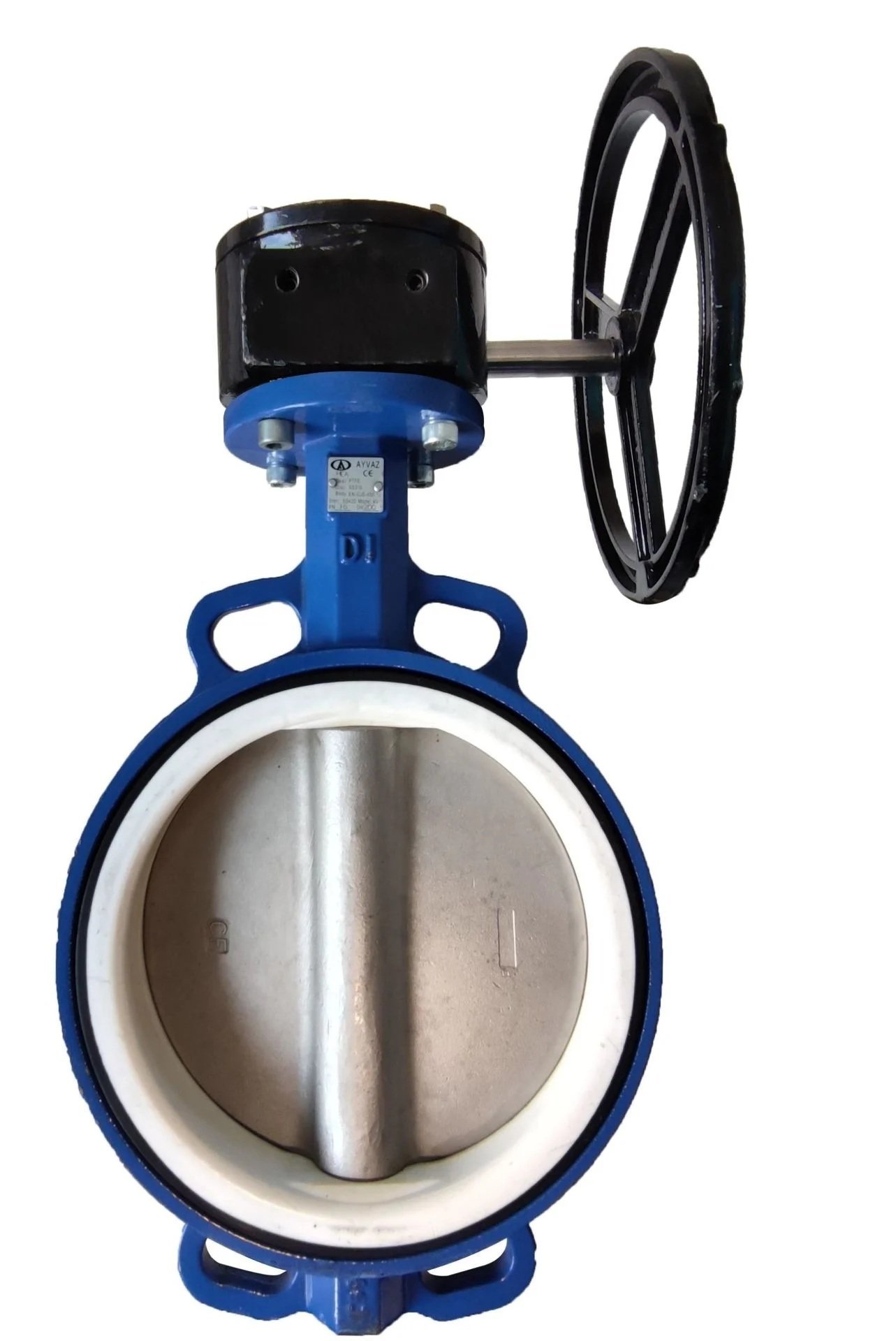

AYVAZ KV-1 Redüktörlü Kelebek Vana PN10 DN125
0 - Comment / Read Comments
Category
Brand
Stock Code
708030498080RED
Warranty Period
24 Month
Request a Quote
You can send us any questions you have about technical support, product information, or general topics. Our experts will get back to you as soon as possible.
AYVAZ KV-1 Reducer Butterfly Valve PN10 DN Reducer Control – Strong Body, Sensitive Flow Setting
Ayvaz KV-1 Reducer Butterfly Valve is an ideal valve solution for high precision and manually controlled flow systems, offered with ORFA Industrial assurance. Thanks to the reducer mechanism, easy and controlled opening-closing is achieved by reducing the arm force.
DN125 diameter, this valve provides high chemical resistance and long life in chemical and industrial applications with its GG-25 cast iron body, AISI 316 stainless valve and PTFE gasket. It is resistant to temperatures up to 110°C and operating conditions up to PN10 pressure. Wafer type connection offers ease of mounting between flange.
Technical Specifications:
Ayvaz KV-1 Reducer Butterfly Valve is an ideal valve solution for high precision and manually controlled flow systems, offered with ORFA Industrial assurance. Thanks to the reducer mechanism, easy and controlled opening-closing is achieved by reducing the arm force.
DN125 diameter, this valve provides high chemical resistance and long life in chemical and industrial applications with its GG-25 cast iron body, AISI 316 stainless valve and PTFE gasket. It is resistant to temperatures up to 110°C and operating conditions up to PN10 pressure. Wafer type connection offers ease of mounting between flange.
Technical Specifications:
Model: KV-
Type: Reducer Butterfly Valve
Nominal Diameter: DN
Operating Pressure: PN
Flange Compatibility: PN
Body: GG-25 Cast Iron
Disc (Clapper): AISI 316 Stainless Steel
Spindle: AISI 420 Stainless Steel
Gasket: PTFE
Connection Type: Wafer Type
Actuator Type: Geared (manual driven)
Maximum Temperature: °C
Areas of Use:
Areas of Use:
Chemical industry
Water purification and liquid transfer systems
HVAC installations
Food and pharmaceutical production
Fluid control lines
Industrial process facilities
Ayvaz KV-1 Reducer Butterfly Valve is a flow control valve that stands out with its safe, precise and low maintenance requirements, offered with the assurance of ORFA Industrial .
Ayvaz KV-1 Reducer Butterfly Valve is a flow control valve that stands out with its safe, precise and low maintenance requirements, offered with the assurance of ORFA Industrial .
| Body | : | Iron Casting |
| Pressure Class | : | PN 10 |
| Diameter-Dn | : | DN 125 |
