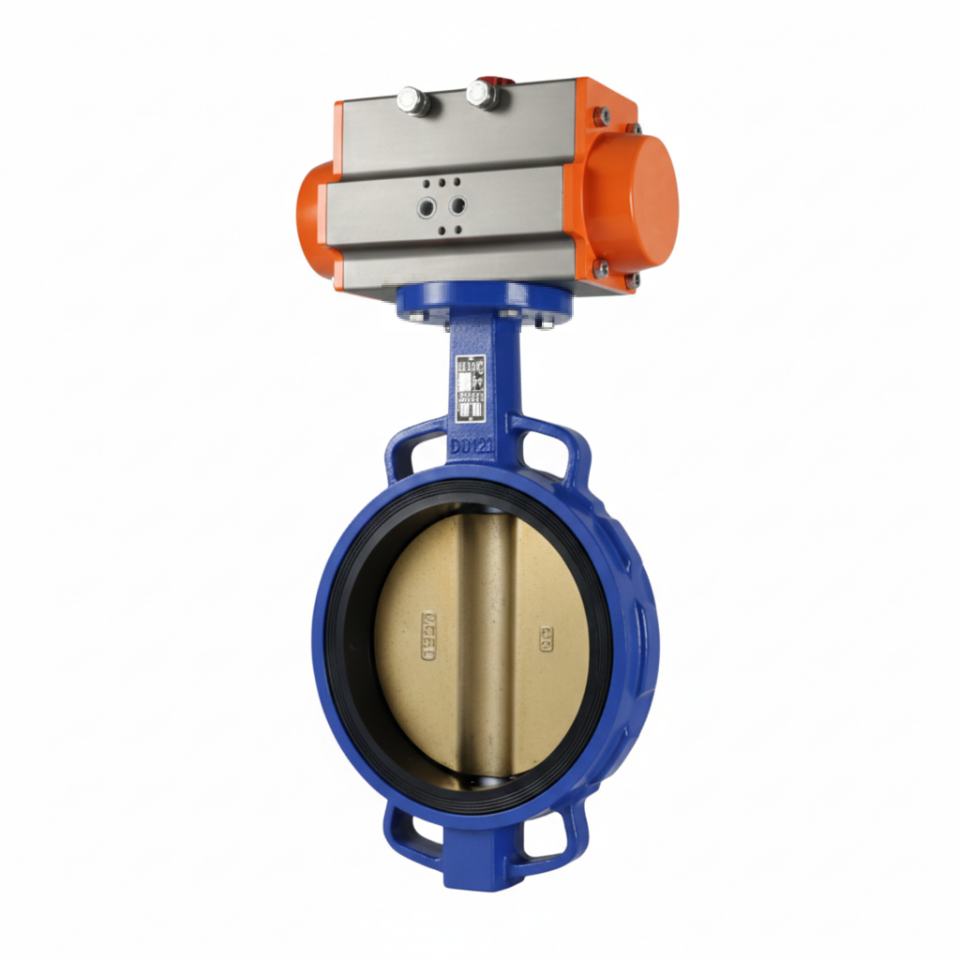

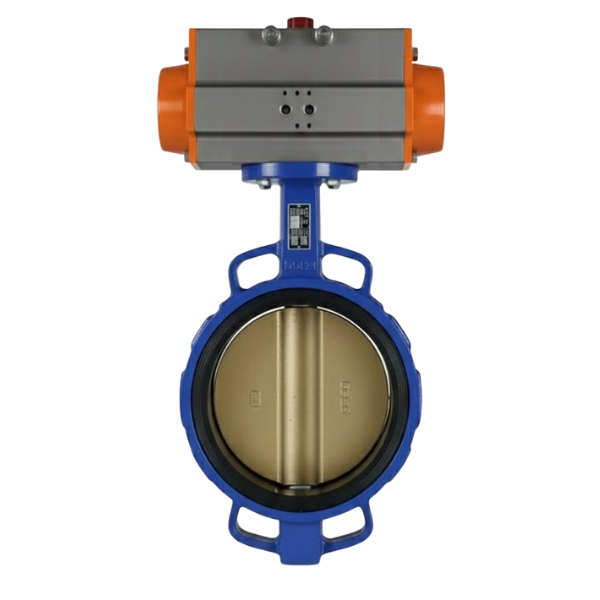

AYVAZ KV-17 Wafer Type Single Acting Pneumatic Actuated Butterfly Valve PN16 DN40
AYVAZ KV-17 Wafer Type Single Acting Pneumatic Actuated Butterfly Valve PN16 DN40
Failsafe Automation Protection with ORFA Industrial Assurance
As the most critical component of industrial system safety, the pneumatic actuated butterfly valve protects the system by automatically closing in emergency situations. This DN40 PN16 model from the AYVAZ KV-17 series is the most reliable version of pneumatic actuated butterfly valve technology with a single acting mechanism. Thanks to the spring return (failsafe) operating principle, when air supply is interrupted, the pneumatic actuated butterfly valve closes immediately, preventing hazardous material leaks. With a GGG-40.3 ductile iron body and aluminum bronze disc, this pneumatic actuated butterfly valve offers excellent resistance to aggressive fluids including seawater, acidic and alkaline solutions. The high hardness of the AISI 420 stainless steel shaft ensures long-term wear resistance inside the pneumatic actuated butterfly valve body. With NBR seal, this pneumatic actuated butterfly valve provides full tightness up to 90°C and operational flexibility in a pressure range of 2 to 8 bar. Due to its compact wafer design, the pneumatic actuated butterfly valve can be easily integrated between flanges of existing piping lines. With an aluminum actuator body and pistons, this pneumatic actuated butterfly valve provides fast response time and low energy consumption. Preferred in chemical plants, power plants and water treatment facilities, the pneumatic actuated butterfly valve sets the safety standard in automation systems. Available from ORFA Industrial stocks, the AYVAZ KV-17 pneumatic actuated butterfly valve offers stable performance in an operating temperature range of -20°C to +80°C. Ideal for applications requiring failsafe protection, this pneumatic actuated butterfly valve maximizes system safety and optimizes operating costs.
Pneumatic Actuated Butterfly Valve Technical Specifications
Key Advantages of Pneumatic Actuated Butterfly Valve
- Failsafe Safety: Pneumatic actuated butterfly valve with spring return mechanism provides automatic closure on power failure.
- Corrosion Resistance: Aluminum bronze disc and ductile iron body for safe operation in seawater and chemical environments.
- Compact Design: Wafer type pneumatic actuated butterfly valve installs between flanges using minimal space.
- Fast Response Time: Aluminum actuator ensures quick response time of pneumatic actuated butterfly valve.
Application Areas of Pneumatic Actuated Butterfly Valve
- Pneumatic actuated butterfly valve in safety lines of chemical and petrochemical plants.
- Pneumatic actuated butterfly valve for steam and water control systems in power generation plants.
- Lines requiring emergency shutoff protection in water and wastewater treatment plants.
- Sterile automation and failsafe control applications in food and pharmaceutical industries.
Maintain your system safety and automation reliability at the highest level with AYVAZ KV-17 pneumatic actuated butterfly valve.
| Body Material | : | Ductile Iron |
| Pressure Class (PN) | : | PN 16 |
| Nominal Diameter (DN) | : | DN 40 |
| Gasket / Seal Material | : | NBR |
| Disc Material | : | Aluminum Bronze |
