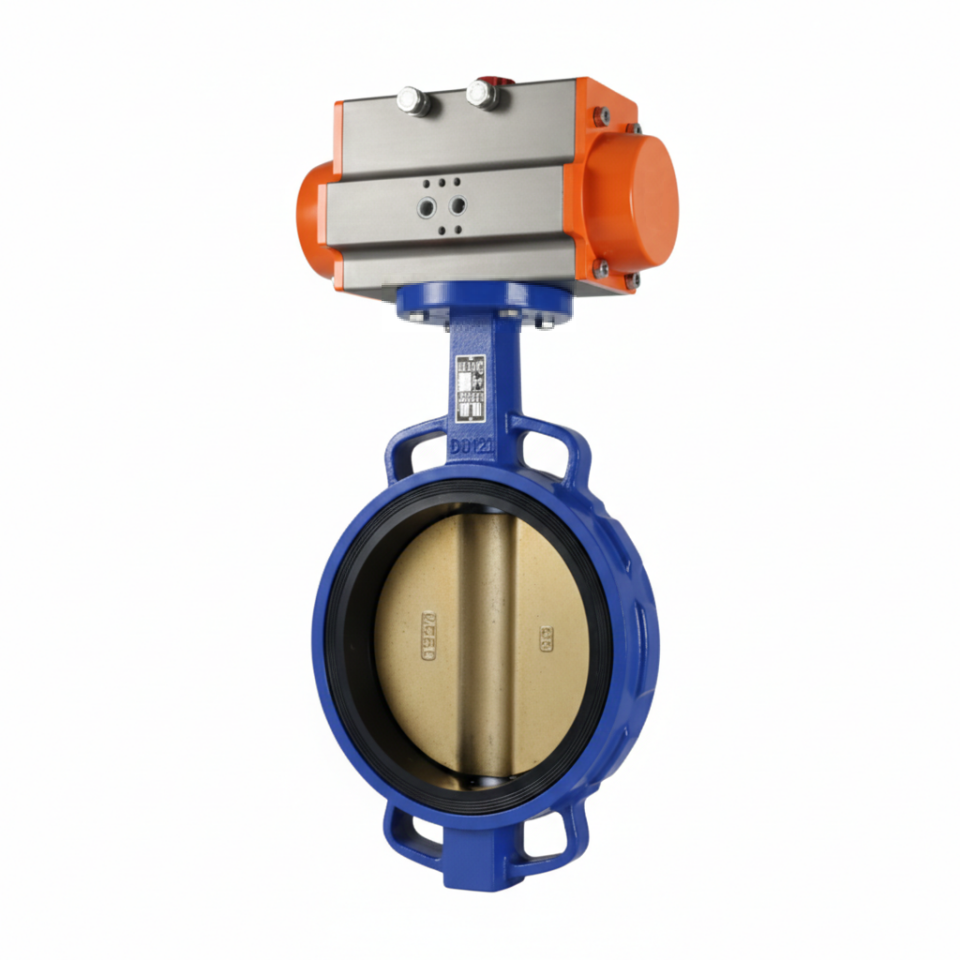

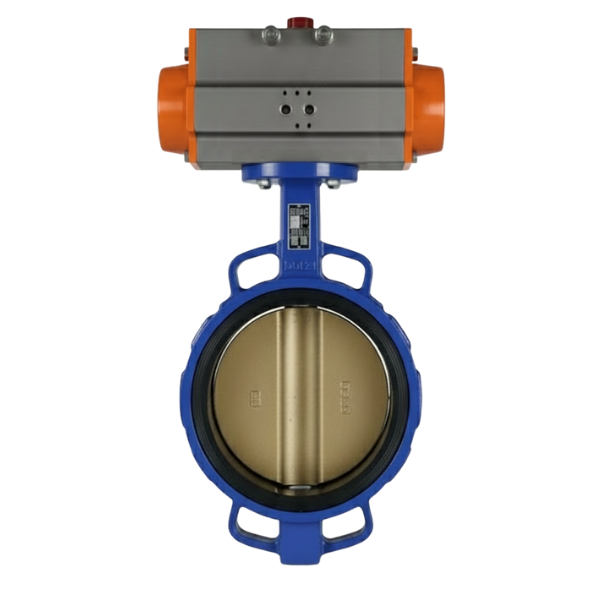

AYVAZ KV-17 Wafer Tip Tek Etkili Pnömatik Kelebek Vana PN16 DN80
AYVAZ KV-17 Wafer Type Single Acting Pneumatic Butterfly Valve PN16 DN80
Failsafe Automation and Energy Security with ORFA Industrial Assurance
The pneumatic butterfly valve plays a critical role in industrial automation systems, providing flow control and emergency safety. The AYVAZ KV-17 model, with its wafer type design offering high performance in compact installations, is a single-acting pneumatic butterfly valve suitable for managing medium to large pipelines with DN80 PN16 dimensions. Thanks to its spring-return failsafe mechanism, upon loss of electrical or air supply, the valve automatically moves to the closed position, stopping the escape of hazardous materials and unwanted flows, maintaining maximum system safety. Made of GGG-40.3 ductile iron, this pneumatic butterfly valve features high pressure resistance and mechanical strength, designed to withstand harsh industrial conditions. The aluminum bronze disc provides excellent corrosion protection in aggressive environments, including seawater and corrosive chemicals, ensuring long service life. The AISI 420 stainless steel shaft shows high resistance to torsion and numerous opening/closing cycles. With NBR seat sealing providing full tightness up to 90°C, this pneumatic butterfly valve is equally reliable in cold storage and warm process lines. In the 2-8 Bar operating pressure range, the valve exhibits fast response time and smooth flow control, minimizing air consumption and operating costs. The AYVAZ KV-17 pneumatic butterfly valve, available from ORFA Industrial, is a standard choice in the chemical, food, water treatment, and petrochemical industries. The lightweight and easy installation of the wafer type body accelerate project completion and simplify maintenance. A quality pneumatic butterfly valve, preferred by professional engineers, is the optimal solution for simultaneously enhancing system efficiency and safety.
Pneumatic Butterfly Valve Technical Specifications
Pneumatic Butterfly Valve Key Advantages
- Failsafe Safety: In case of power loss, the pneumatic butterfly valve automatically closes via spring force, protecting the system from hazards.
- Corrosion Resistance: Aluminum bronze disc provides superior resistance to seawater and chemical fluids.
- High Pressure Tolerance: GGG-40.3 ductile iron body ensures safe operation up to 16 Bar.
- Compact Installation: Wafer type design integrates directly between pipeline flanges, saving space.
Pneumatic Butterfly Valve Application Areas
- Process lines and emergency shutdown systems in chemical and petrochemical plants.
- Flow control in water treatment and industrial wastewater disposal systems.
- Pneumatic butterfly valve automation in food and beverage production facilities.
- Media switching in heating-cooling systems and centralized air supply units.
Discover failsafe safety and long-lasting automated control with the AYVAZ pneumatic butterfly valve for your installation.
| Body Material | : | Ductile Iron |
| Pressure Class (PN) | : | PN 16 |
| Nominal Diameter (DN) | : | DN 80 |
| Gasket / Seal Material | : | NBR |
| Disc Material | : | Aluminum Bronze |
