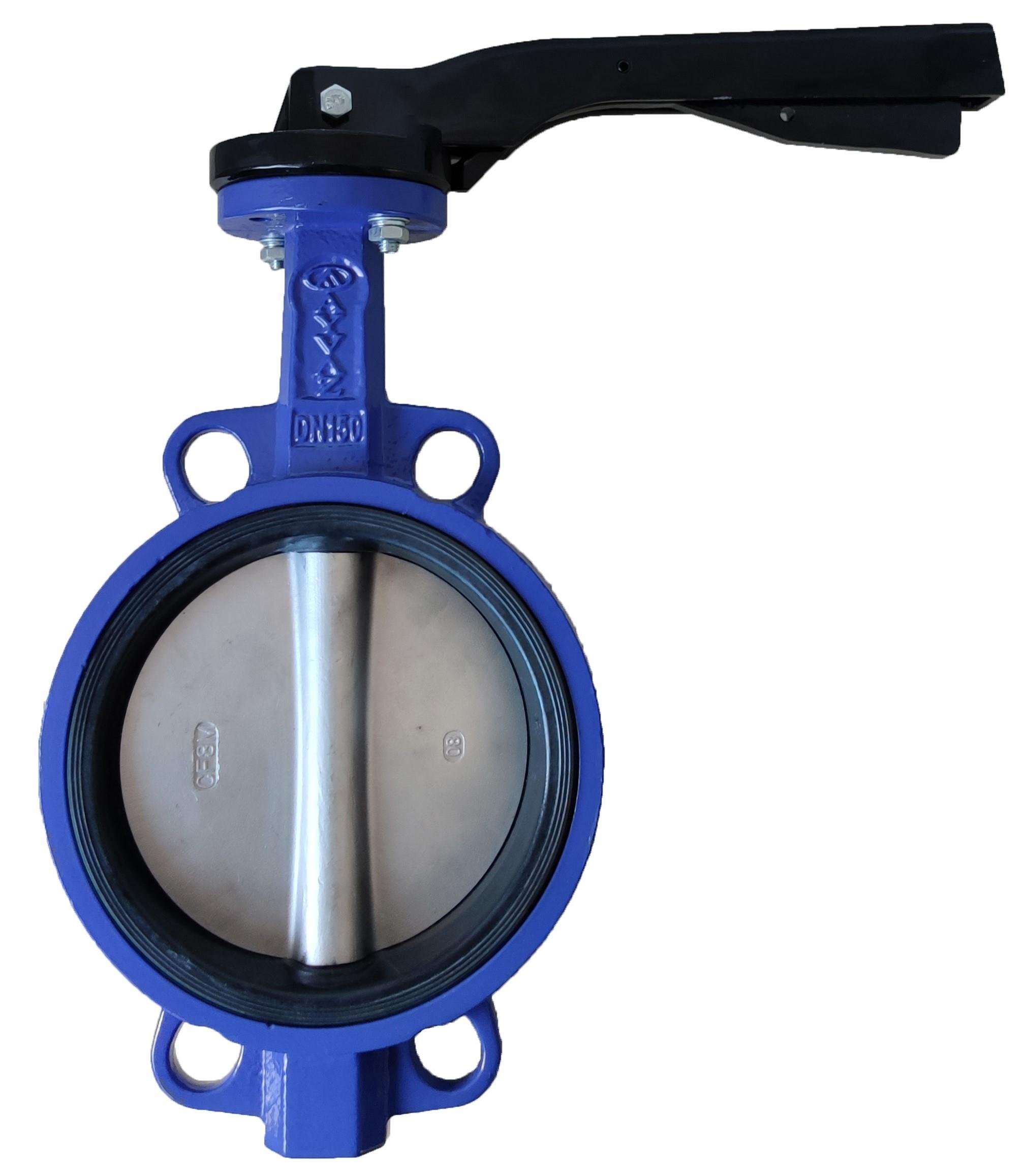

AYVAZ KV-3 Wafer Tip Kelebek Vana DN100 PN16
Category
Brand
Stock Code
708030500070
Warranty Period
24 Month
Price
360,00 USD + VAT
%62
136,80 USD
360,00 USD
Installments starting from 136,80 USD!
AYVAZ KV-3 Wafer Type Butterfly Valve DN100 PN16
Flow Control with Stainless Steel Disc and Compact Design, Backed by ORFA Industrial
Offering a professional solution for flow control in heating systems, cooling lines, and multi-purpose industrial applications, the wafer type butterfly valve is a preferred component in industrial standards due to its compact structure and low pressure loss. Manufactured with the engineering expertise of the Ayvaz brand, the KV-3 series wafer type butterfly valve delivers maximum performance in medium-sized pipelines with DN100 size and PN16 pressure rating. Thanks to a metal disc rotating around a vertically positioned shaft, this wafer type butterfly valve opens or closes the pipe cross-section quickly and precisely. Due to the combination of AISI 316 stainless steel disc and AISI 420 stainless steel shaft, this wafer type butterfly valve provides complete corrosion resistance and offers long service life in saltwater, acidic, or alkaline solutions. Reinforced with a GG-25 cast iron body, this wafer type butterfly valve demonstrates reliable operation at a maximum temperature of 130°C and working pressure PN16. With an H-EPDM elastomer seal material providing excellent tightness under high temperature and pressure, this wafer type butterfly valve also functions as a gasket when mounted between pipe flanges. Thanks to the wafer connection type, this wafer type butterfly valve is very lightweight and compact, easily fitting into tight spaces and speeding up installation. Available from ORFA Industrial stocks, this wafer type butterfly valve can operate with a manual handwheel or integrated with an electric actuator. With an optional coating, this wafer type butterfly valve is also ideal for projects requiring a stainless finish, providing stable automation over a wide temperature and pressure range.
Wafer Type Butterfly Valve Technical Specifications
Key Advantages of Wafer Type Butterfly Valve
- Corrosion Protection: AISI 316/420 stainless steel disc and shaft – this wafer type butterfly valve delivers long service life in salty and acidic environments.
- Compact and Lightweight: The wafer design allows this wafer type butterfly valve to occupy minimal space in pipelines and enables quick installation.
- Low Pressure Loss: Thanks to the wide opening angle, this wafer type butterfly valve allows unrestricted flow without energy loss.
- High Temperature Resistance: Operating safely up to 130°C, this wafer type butterfly valve is an ideal solution for heating and cooling systems.
Application Areas of Wafer Type Butterfly Valve
- In central heating systems and boiler room discharge lines, this wafer type butterfly valve provides flow balancing.
- In cooling towers and control points of industrial cooling loops, this wafer type butterfly valve is preferred.
- In chemical processing plants and treatment systems, this corrosion-resistant wafer type butterfly valve is a reliable solution.
- In vacuum and pressurized gas lines, automation panels, and HVAC systems, this wafer type butterfly valve is effective.
Discover safe flow control and long-term operation in medium pressure line applications with the AYVAZ KV-3 wafer type butterfly valve.
| Body Material | : | Casting |
| Pressure Class (PN) | : | PN 16 |
| Nominal Diameter (DN) | : | DN 100 |
| Gasket / Seal Material | : | EPDM |
| Disc Material | : | 316 Stainless Steel |
