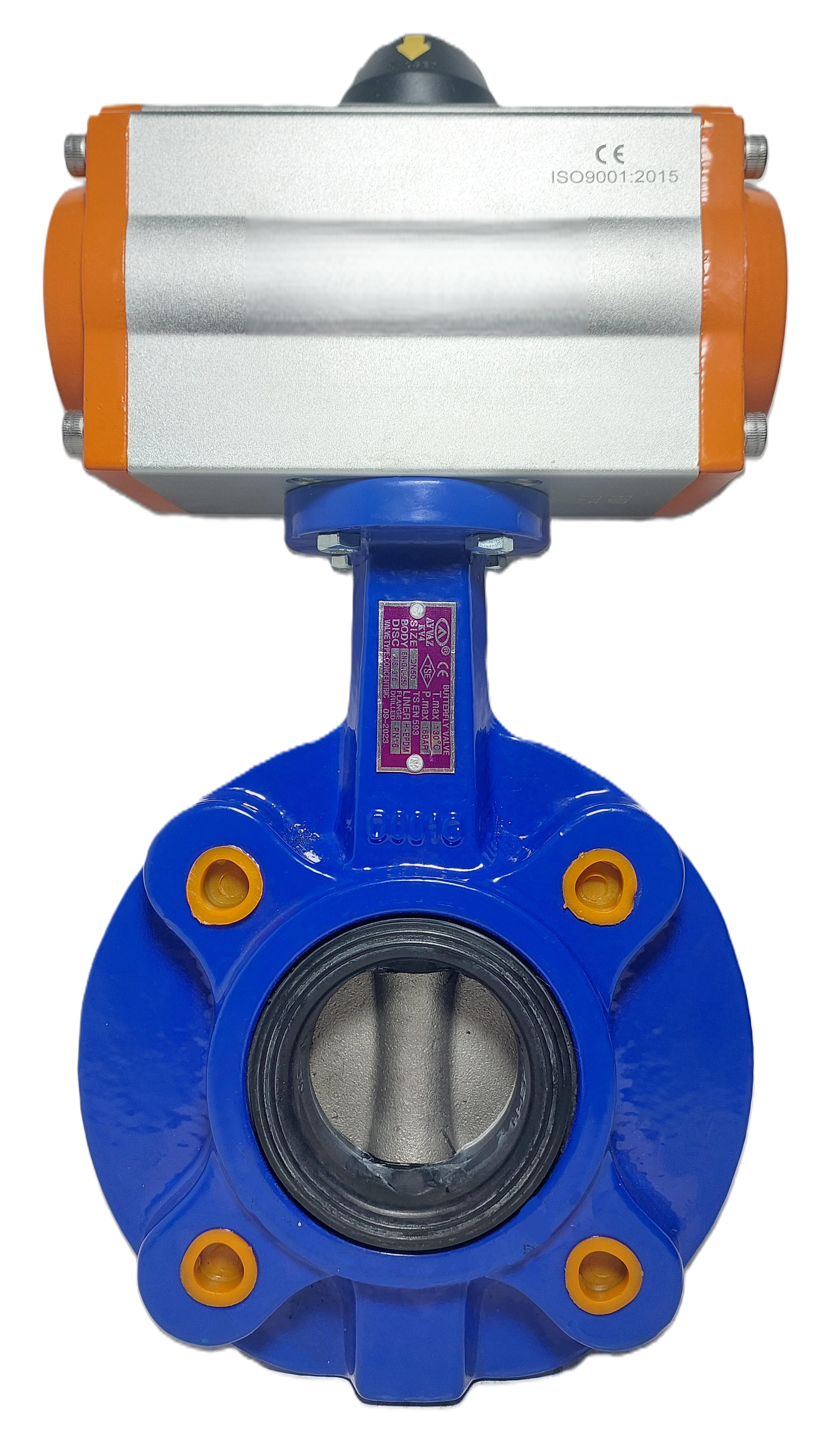

Tek Etkili Pnömatik Aktüatörlü Ayvaz KV-4 Kelebek Vana DN300 PN16

AYVAZ KV-4 Single Acting Lug Type Butterfly Valve with Pneumatic Actuator PN16 DN High Performance Flow for Automation Systems Control

Ayvaz KV-4 Single Acting Pneumatic Actuated Butterfly Valve is an ideal control element that offers fast response, sensitivity and long life in process automation. This model with DN300 diameter and lug type connection; It provides high performance for demanding fluid systems with its GG-25 cast iron body, AISI 316 stainless steel flap, AISI 420 shaft and H-EPDM gasket components.

Single-acting pneumatic actuator provides controlled and safe operation by performing both opening and closing movements with air. With its structure resistant to operating temperature up to 130 °C and PN16 pressure, it can be used safely in many industries such as chemical, energy and water systems.

KV-
Nominal Diameter: DN
Connection Type: Lug Type
Actuator Type: Single Acting Pneumatic Actuator
Body: GG-25 Cast Iron
Clapper: AISI 316 Stainless Steel
@@@ Shaft: AISI 420 Stainless Steel
Gasket: H-EPDM
Maximum Operating Temperature: ºC
Operating Pressure: PN
Flange Compatibility: PN
Butterfly Valve Usage Areas: Process automation systems

Chemical and petrochemical plants
Water treatment and distribution systems
Food and pharmaceutical industry
HVAC systems
Fire extinguishing lines
Power plants
Ayvaz KV-4, ORFA Industrial
offers fast response and high reliability in systems where automatic flow control is required, with assurance.

Ayvaz KV-4, ORFA Endüstriyel güvencesiyle, otomatik akış kontrolünün gerekli olduğu sistemlerde hızlı tepki ve yüksek güvenilirlik sunar.
