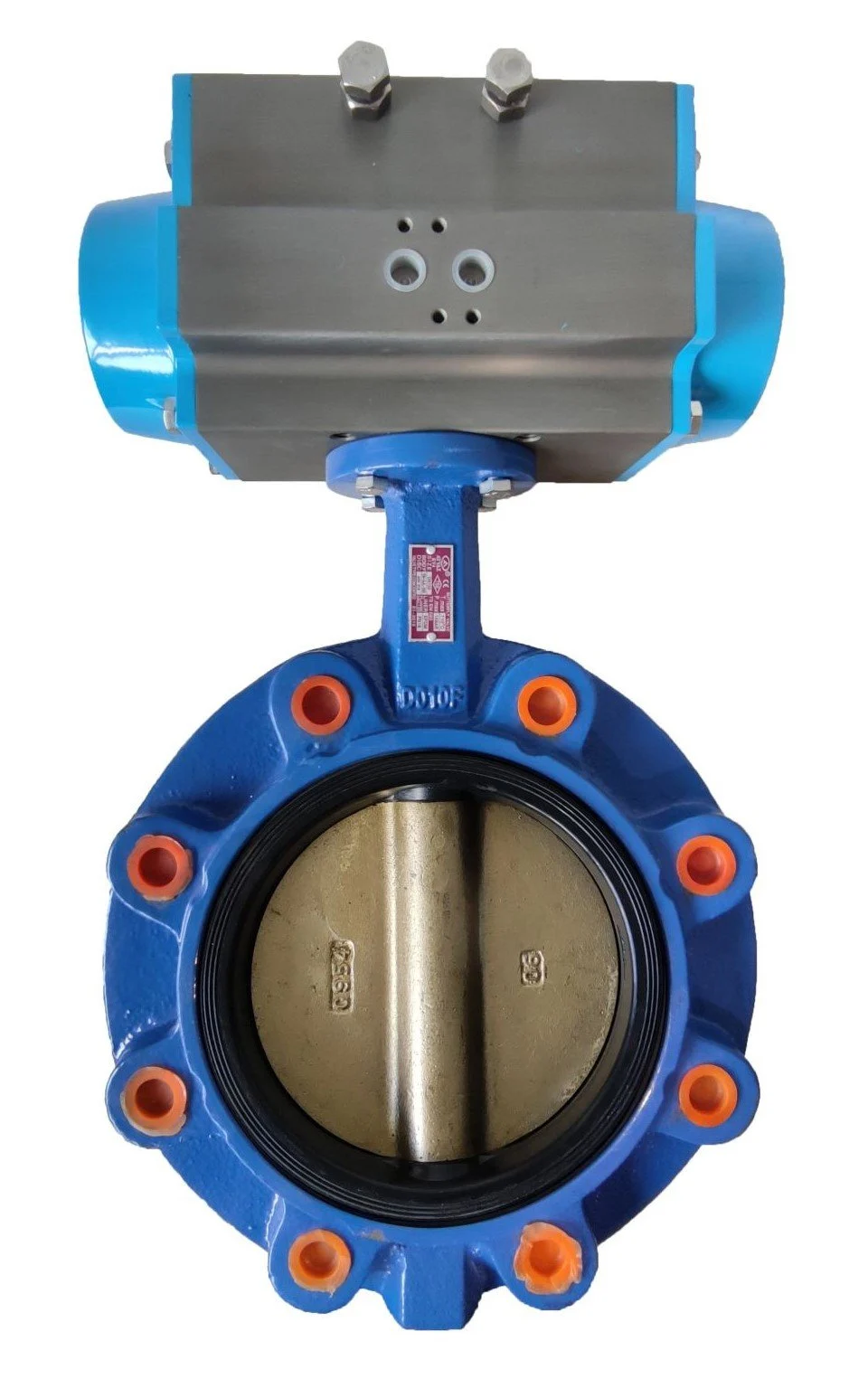

AYVAZ KV-4 Lug Type Butterfly Valve with Double Acting Pneumatic Actuator PN16 DN150

AYVAZ KV-4 Double Acting Lug Type Butterfly Valve with Pneumatic Actuator PN16 DN High Performance Flow for Automation Systems Control

Ayvaz KV-4 Double Acting Pneumatic Actuated Butterfly Valve is an ideal control element that offers fast response, sensitivity and long life in process automation. This model with DN150 diameter and lug type connection; It provides high performance for demanding fluid systems with its GG-25 cast iron body, AISI 316 stainless steel flap, AISI 420 shaft and H-EPDM gasket components. With its structure resistant to operating temperature up to 130 °C and PN16 pressure, it can be used safely in many industries such as chemical, energy and water systems.

KV-

Nominal Diameter:
DN Connection Type:
Lug Type Actuator Type:
Double Acting Pneumatic Actuator Body:
GG-25 Cast Iron Clapper:
AISI 316 Stainless Steel @@@ Shaft:
AISI 420 Stainless Steel Gasket:
H-EPDM Maximum Operating Temperature:
ºC Operating Pressure:
PN Flange Compatibility:
PN Butterfly Valve Usage Areas:
Process automation systems Chemical and petrochemical plants

Water treatment and distribution systems
Food and pharmaceutical industry
HVAC systems
Fire extinguishing lines
Power plants
Ayvaz KV-4, ORFA Industrial
offers fast response and high reliability in systems where automatic flow control is required, with assurance.
