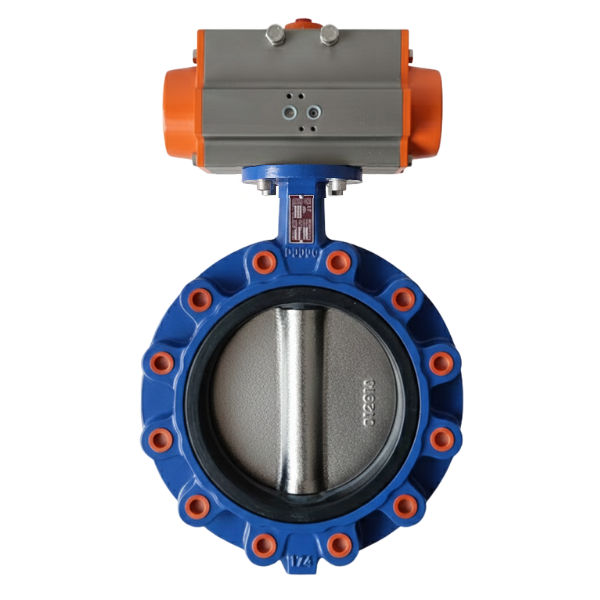

AYVAZ KV-8 Lug Tip Pnömatik Aktüatörlü Kelebek Vana PN16 DN300
AYVAZ KV-8 Lug Type Single Acting Pneumatic Actuated Butterfly Valve PN16 DN300
Safe Industrial Flow Management with ORFA Industrial Assurance
Used in critical points of industrial automation and flow control systems, the pneumatic actuated butterfly valve is designed to provide safe and precise flow management. The Ayvaz KV-8 series pneumatic actuated butterfly valve, manufactured in DN300 PN16 class, delivers high performance in large-scale air, gas, and liquid lines. With its single-acting spring return (failsafe) mechanism, when air supply is interrupted, the pneumatic actuated butterfly valve automatically moves to the closed position, protecting the system in emergency situations. Made with a GG-25 cast iron body and AISI 420 stainless steel shaft, this pneumatic actuated butterfly valve exhibits excellent resistance to corrosion and mechanical damage. Thanks to its nickel-plated ductile iron disc, the pneumatic actuated butterfly valve is wear-resistant and provides high tightness even after millions of cycles. With an H-EPDM seal, this pneumatic actuated butterfly valve is suitable for hot water and general-purpose fluids up to 130°C and is widely used in shipbuilding, chemical industry, and power plants. Available at ORFA Industrial, the Ayvaz pneumatic actuated butterfly valve operates efficiently in a supply pressure range of 2-8 bar and adapts to ambient temperatures from -20°C to +80°C. Thanks to its lug-type construction, installation and dismantling of the pneumatic actuated butterfly valve in large-scale projects requiring on-site maintenance can be done easily. Integrated with air preparation units and control panels, this pneumatic actuated butterfly valve allows you to create automated flow control and safety systems in your installation. Each Ayvaz pneumatic actuated butterfly valve unit is manufactured in accordance with international DIN EN ISO standards and delivered with CE certification.
Pneumatic Actuated Butterfly Valve Technical Specifications Details
Key Advantages of Pneumatic Actuated Butterfly Valve
- Failsafe Safety: In case of air failure, the pneumatic actuated butterfly valve provides automatic closure via spring return.
- High Durability: AISI 420 stainless steel shaft and nickel-plated disc offer excellent corrosion resistance for the pneumatic actuated butterfly valve.
- Easy Installation and Maintenance: Thanks to the lug type design, the pneumatic actuated butterfly valve can be disassembled and serviced on site.
- Wide Temperature Range: H-EPDM seal ensures safe sealing up to 130°C for the pneumatic actuated butterfly valve.
Application Areas of Pneumatic Actuated Butterfly Valve
- Flow control lines in shipbuilding and maritime industry.
- Process fluid transport in chemical and petrochemical plants.
- Pneumatic actuated butterfly valve integration in steam and hot water piping in power plants.
- Control in sterile process lines and automation panels in food and beverage production.
Ensure safe, automated and reliable control of your industrial flow systems with the AYVAZ KV-8 pneumatic actuated butterfly valve.
| Body Material | : | Casting |
| Pressure Class (PN) | : | PN 16 |
| Nominal Diameter (DN) | : | DN 300 |
| Gasket / Seal Material | : | EPDM |
| Disc Material | : | Nickel Plated Ductile Iron |
