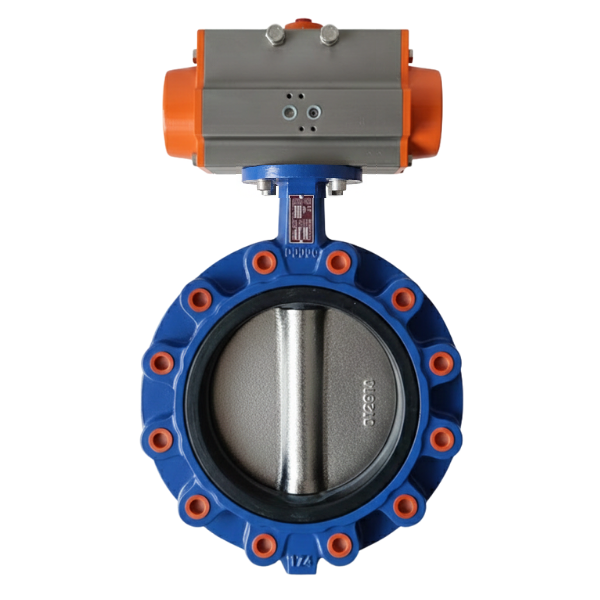

AYVAZ KV-8 Lug Tip Tek Etkili Pnömatik Aktüatörlü Kelebek Vana PN16 DN250

AYVAZ KV-8 Lug Type Single Acting Pneumatic Actuated Butterfly Valve PN16 DN250

Failsafe Automation in Industrial Flow Control with ORFA Industrial Assurance

Providing a reliable solution for critical flow management in industrial automation systems, the pneumatic actuated butterfly valve is one of the most advanced designs in the Ayvaz KV-8 series. With a nominal diameter DN250 and pressure rating PN16, this pneumatic actuated butterfly valve is suitable for large-scale piping lines. Its single acting (spring return) mechanism automatically closes the valve when air supply is interrupted, ensuring maximum system safety. Featuring a GG-25 cast iron body, the professional pneumatic actuated butterfly valve incorporates a nickel plated ductile iron disc and an AISI 420 stainless steel shaft, providing full corrosion resistance. With an H-EPDM seat, this pneumatic actuated butterfly valve guarantees excellent sealing for hot water and general fluids up to 130°C and is available in ORFA Industrial stocks. Operating smoothly in a supply pressure range of 2-8 Bar, the pneumatic actuated butterfly valve stands out as an ideal choice for air control systems, process automation installations, and chemical tank lines. The lug type mounting feature allows one side of the piping to be removed for maintenance and repair, offering practical advantages to operators. Performing stably in an operating temperature range of -20 to +80°C, the Ayvaz pneumatic actuated butterfly valve is resistant to seasonal changes and extreme conditions. The aluminum actuator body and piston reduce weight while maintaining high mechanical strength. By using this pneumatic actuated butterfly valve in your project, you can achieve both automatic flow control and failsafe safety. Each pneumatic actuated butterfly valve unit passes through quality control tests in accordance with industrial standards. Designed as a long-lasting and easy-to-maintain solution, this pneumatic actuated butterfly valve maximizes control and safety in your piping systems.

Discover safe flow control and long-lasting performance in your industrial processes with AYVAZ pneumatic actuated butterfly valve solutions.
