AYVAZ KVA-8 Lug Tipi Kelebek Vana PN16 DN50

AYVAZ KVA-8 Lug Tipi Kelebek Vana PN16 DN50

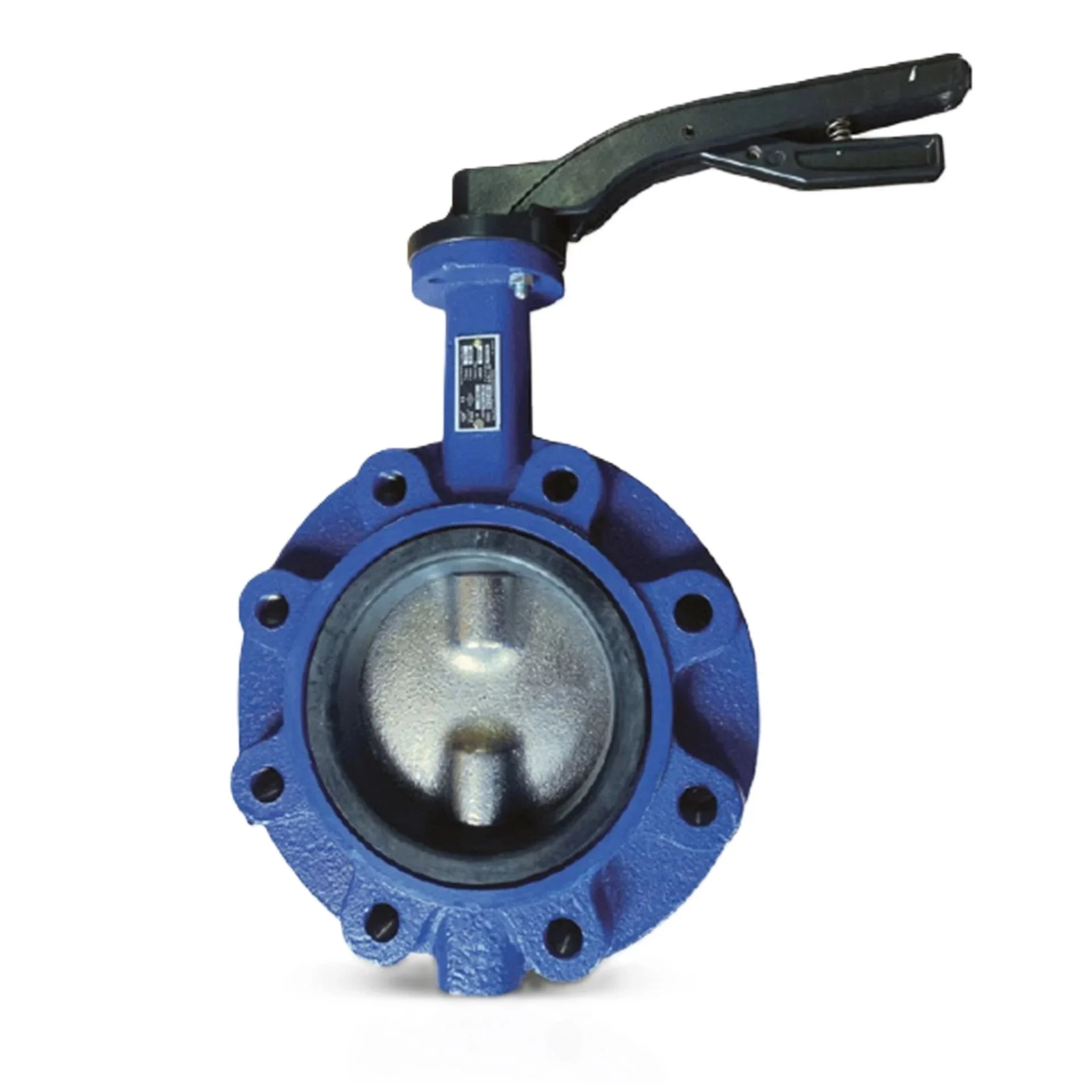

AYVAZ KVA-8 LUG TYPE BUTTERFLY VALVE PN16 DN50

Reliable Flow Control with ORFA Industrial Assurance

An indispensable component for flow management in industrial installations, the lug type butterfly valve offers high performance and reliability. Manufactured with the engineering quality of the Ayvaz brand, this PN16 DN50 lug type butterfly valve ensures long service life in harsh conditions thanks to its GG25 cast iron body and nickel-plated GGG40.3 ductile iron disc. With a lug-type connection allowing single-sided removal while the system is operational, this lug type butterfly valve facilitates maintenance and installation. Featuring an H-EPDM seat that guarantees tightness up to 130°C, the valve is ideal for corrosive chemicals and high-pressure systems. This lug type butterfly valve, widely used in industrial processes, water treatment plants, and HVAC applications, is now available in ORFA Industrial stocks.

Lug Type Butterfly Valve Detailed Technical Specifications

Model: AYVAZ KVA-8

Type: Lug Type Butterfly Valve

Nominal Diameter: DN50 (2")

Pressure Class: PN16

Body Material: GG25 Cast Iron

Disc Material: GGG40.3 Nickel-Plated Ductile Iron

Shaft Material: AISI 420 Stainless Steel

Seat Material: H-EPDM

Max. Operating Temperature: 130 °C

Connection: Lug Type (DIN EN 1092-2)

Lug Type Butterfly Valve Key Advantages

Easy Maintenance: Thanks to the lug-type design, the lug type butterfly valve can be removed without draining the line, reducing maintenance time.
High Sealing: The lug type butterfly valve with H-EPDM seat provides excellent tightness and prevents leaks.
Corrosion Resistance: The lug type butterfly valve with nickel-plated disc and stainless steel shaft offers superior corrosion resistance and long life.
Wide Application: The lug type butterfly valve, capable of operating under high pressure and temperature, is suitable for many industrial processes.

Lug Type Butterfly Valve Application Areas

Industrial process lines and chemical transfer systems.
Water and wastewater treatment plants, pumping stations.
HVAC heating, cooling, and air conditioning applications.
Fire suppression systems and shipbuilding sites.

Discover safe flow management and high performance with Ayvaz lug type butterfly valve solutions.

Body Material	:	Casting
Pressure Class (PN)	:	PN 16
Nominal Diameter (DN)	:	DN 50
