Ayvaz L9-LB Bronze Safety Valve 2.1-10.5 bar 3/4''
0 - Comment / Read Comments

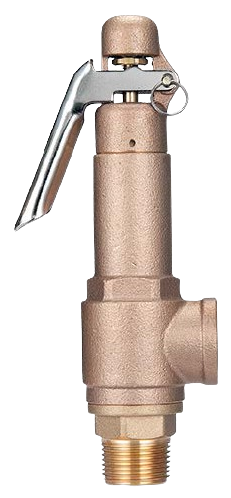

Ayvaz L9-LB Bronze Safety Valve 2.1-10.5 bar 3/4" Durable and Reliable in High Pressure Systems Safety
Ayvaz L9-LB Bronze Safety Valve is a durable and long-lasting solution developed to safely relieve excess pressure in high-pressure fluid lines. The connection diameter of 3/4" and the adjustment range of 2.1-10.5 bar offer a wide range of usage and adapt to different system needs. High strength bronze body offers superior resistance to corrosion and thermal stress. The seat and disc are manufactured from durable Brass material and provide long-term sealing. The steel spring ensures precision and durability, while the Brass shaft increases functionality. This valve, which can operate in the temperature range from -20°C to +185°C, can be used safely in steam, gas and liquid systems thanks to its high pressure resistance (PN16).
Body:
Ayvaz L9-LB Bronze Safety Valve is a durable and long-lasting solution developed to safely relieve excess pressure in high-pressure fluid lines. The connection diameter of 3/4" and the adjustment range of 2.1-10.5 bar offer a wide range of usage and adapt to different system needs. High strength bronze body offers superior resistance to corrosion and thermal stress. The seat and disc are manufactured from durable Brass material and provide long-term sealing. The steel spring ensures precision and durability, while the Brass shaft increases functionality. This valve, which can operate in the temperature range from -20°C to +185°C, can be used safely in steam, gas and liquid systems thanks to its high pressure resistance (PN16).
Body:
Bronze casting Sit and Disk:
Brass Spring:
Steel Mile:
Brass Connection Diameter:
/4" Maximum Operating Temperature:
-20°C ~ +185°C Maximum Working Pressure:
PN Setting Range:
-10,5 bar Safety Valve Usage Areas:
Steam and hot water systems
Steam and hot water systems
Compressed air lines
Chemical and petrochemical facilities
Heating and cooling systems
Power plants
Food and beverage production lines
Ayvaz L9-LB Bronze Safety Valve 3/4", ORFA Industrial,
Provides safe evacuation and system protection in high pressure lines with sales assurance. It is a long-lasting, reliable safety solution with its durable bronze body and solid internal components. satış güvencesiyle, yüksek basınçlı hatlarda güvenli tahliye ve sistem koruması sağlar. Dayanıklı bronz gövdesi ve sağlam iç bileşenleriyle uzun ömürlü, güvenilir bir emniyet çözümüdür.
Provides safe evacuation and system protection in high pressure lines with sales assurance. It is a long-lasting, reliable safety solution with its durable bronze body and solid internal components. satış güvencesiyle, yüksek basınçlı hatlarda güvenli tahliye ve sistem koruması sağlar. Dayanıklı bronz gövdesi ve sağlam iç bileşenleriyle uzun ömürlü, güvenilir bir emniyet çözümüdür.
| Tooth Measurement | : | 3/4'' |
| Pressure Class | : | PN 16 |
