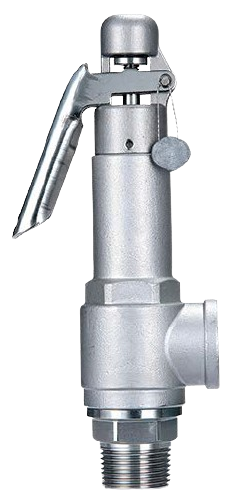

Ayvaz L9-LSP Paslanmaz Emniyet Ventili 2-10,5 bar 1/2" Yüksek Dayanımlı, Güvenilir Emniyet Çözümü
Ayvaz L9-LSP Paslanmaz Safety Valve is designed to safely relieve excess pressure in high pressure systems and ensure the protection of the system. 1/2" connection diameter and 2-10.5 bar adjustment range provide an ideal solution for wide usage areas. The body, seat and disc, made entirely of AISI 304 stainless steel, provide superior corrosion resistance and long-lasting use. All critical parts such as spring, shaft and arm are made of stainless steel, thus maximizing reliability and durability. -20 This valve, which can operate in the temperature range from °C to +185 °C, provides safe operation in both liquid and gas lines with its PN 25 pressure class. Disc:
AISI 304 Stainless Steel
Ayvaz L9-LSP Paslanmaz Safety Valve is designed to safely relieve excess pressure in high pressure systems and ensure the protection of the system. 1/2" connection diameter and 2-10.5 bar adjustment range provide an ideal solution for wide usage areas. The body, seat and disc, made entirely of AISI 304 stainless steel, provide superior corrosion resistance and long-lasting use. All critical parts such as spring, shaft and arm are made of stainless steel, thus maximizing reliability and durability. -20 This valve, which can operate in the temperature range from °C to +185 °C, provides safe operation in both liquid and gas lines with its PN 25 pressure class. Disc:
AISI 304 Stainless Steel
5
Spring, Shaft, Lever: AISI 304 Stainless Steel
Maximum Working Pressure:
@PN 25
Maximum Operating Temperature: -20 °C ~ +185 °C
27
Setting Range:
Setting Range:
2 - 10.5 bar
Connection Diameter:
1/2"
3
Safety Valve Usage Areas:
27
Steam and hot water systems
Steam and hot water systems
| Body Material | : | Stainless |
| Pressure Class (PN) | : | PN 25 |
| Thread Size | : | 1/2'' |
