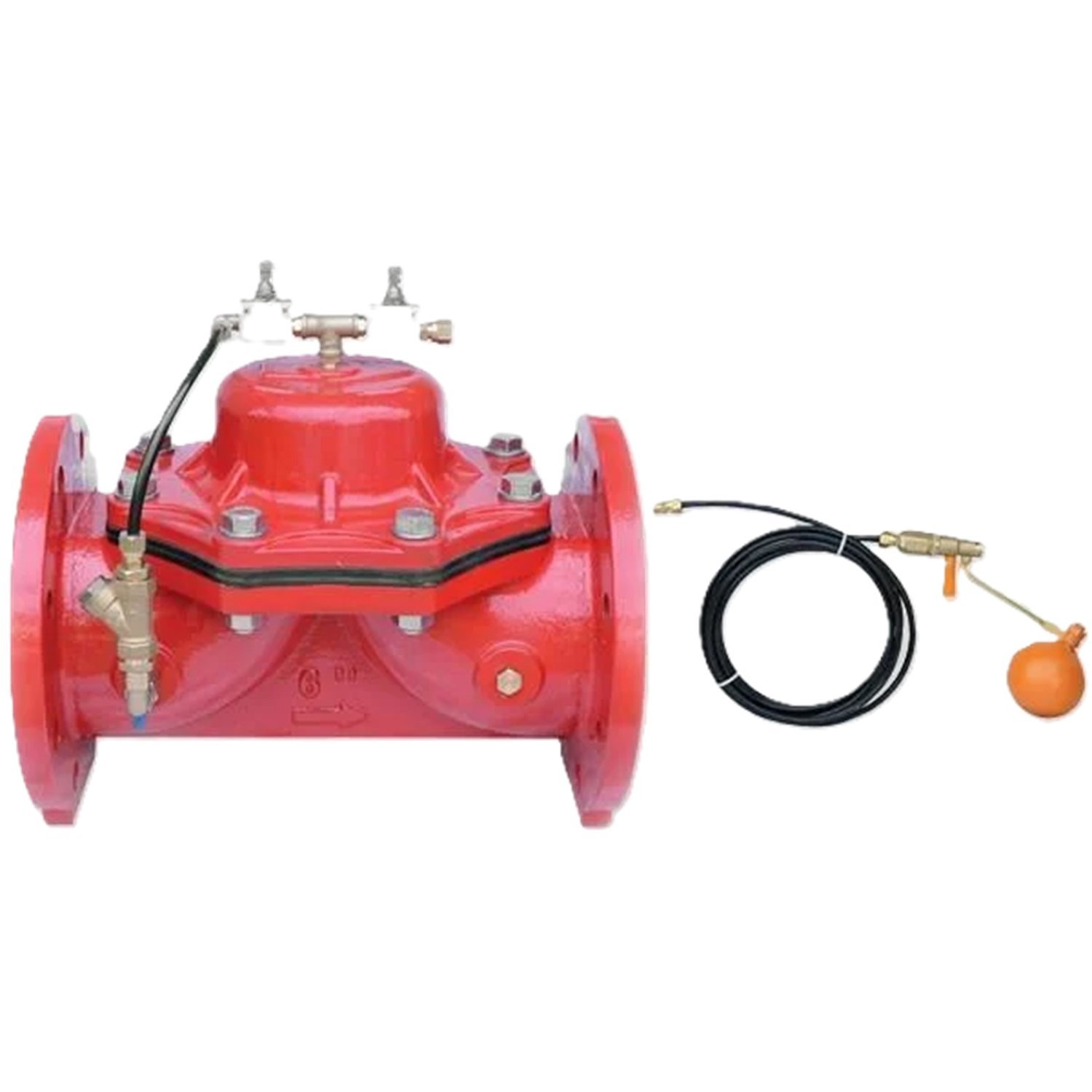

Level Control Valve / Horizontal Float
ORFA Industrial Products Industry and Trade Inc. offers a high-quality Horizontal Float Level Control Valve that automatically controls the water level in your tanks and cisterns. Designed to maintain the water level at the desired level, this valve operates using mains pressure, eliminating the need for additional energy. The valve automatically opens when the water level falls below the set level and closes when the level reaches the set level, maintaining constant water flow.
Product features:
Does not require extra energy: It saves energy by working with mains pressure.
Easy Maintenance: It is extremely easy to use and maintain.
Adjustable Speed: Valve opening and closing speed can be adjusted to suit your system.
Movable Hydraulic Floater: Provides long-lasting use with low maintenance requirements.
Technical Information:
Body: GGG40 Ductile Iron
Diaphragm: Cord Fabric Reinforced Natural Rubber
Cover: GGG40 Ductile Iron
Diaphragm Pressure Ring: Polyamide
Spring: SST 302
Max. Working Pressure: 16 bar
Max. Operating Temperature: 80 ºC
Connection Type: Flanged
Areas of Use:
Tanks and Reservoirs: Ideal for automatic control of water level.
Industrial Facilities: Provides safe water level control in water storage and distribution systems.
Agriculture: Suitable for the efficient use and control of water in irrigation systems.
Municipal Water Systems: Provides automatic control of water level in city water networks.
Setup Instructions:
Installation: Mount the float valve supplied with the valve onto the tank according to the maximum level at which water can flow.
Connection: Connect the connection hose between the valve and the float.
Adjustment: Adjust the opening and closing speed of the main valve using the needle valve located on the valve to suit your system.
