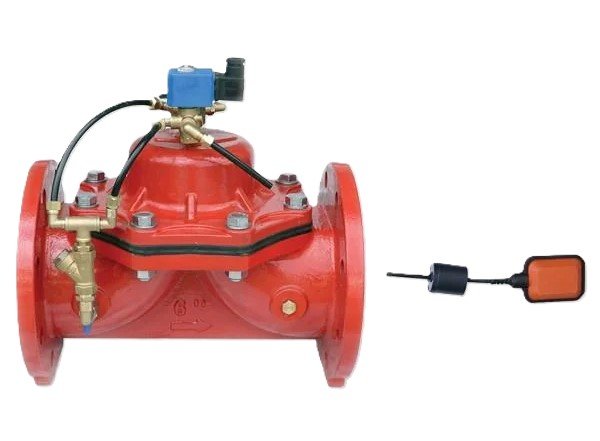

AYVAZ Level Control Valve with Electric Float DN
AYVAZ Level Control Valve with Electric Float DN250 is a reliable solution that allows automatic control of the water level in tank and reservoir systems. This valve, which works with an electric float, constantly monitors the water level and prevents overfilling and insufficient levels. ORFA Industrial Products Industry and Trade Inc. . This product, which is offered for sale with assurance, provides efficient use in businesses thanks to its long-lasting material structure and low energy consumption.
Level Control Valve Working Principle
The valve is controlled via an electric float. When the water level drops, the float sends a signal to the solenoid coil on the valve, allowing the valve to open and the tank begins to fill. When the water reaches the desired level, the signal is cut off, the valve closes and the tank level is kept constant. It easily adapts to different operating conditions thanks to its manual on-off feature and optional adjustable opening/closing speed.
Specification
Body: GGG40 Ductile Iron
Cover: GGG40 Ductile Iron
Diaphragm: Cord Reinforced Natural Rubber
Diaphragm Thrust Ring: Polyamide
Spring: SST 302 Stainless Steel
Max. Working Pressure: bar
Max. Operating Temperature: °C
Connection Type: Flanged
Nominal Diameter: DN
Nominal Diameter: DN
Energy Efficiency: Low energy consumption
Mounting: Suitable for horizontal or vertical mounting
Level Control Valve Usage Areas
Drinking water and process water tanks
Water reservoirs in industrial facilities
Irrigation systems and agricultural water tanks
Fire water tanks
Water treatment plants and filtration systems
HVAC and air conditioning applications
AYVAZ Level Control Valve with Electric Float DN250 offers safe solutions in industrial and commercial applications with its durable body, sensitive level control mechanism and easy installation advantage. ORFA This Level Control Valve, sold by Endüstri Mamüller Sanayi ve Ticaret A.Ş ., ensures both energy efficiency and system safety by ensuring that the water is kept at the correct level.
| Body | : | Ductile Iron |
| Pressure Class | : | PN 16 |
| Diameter-Dn | : | DN 250 |
