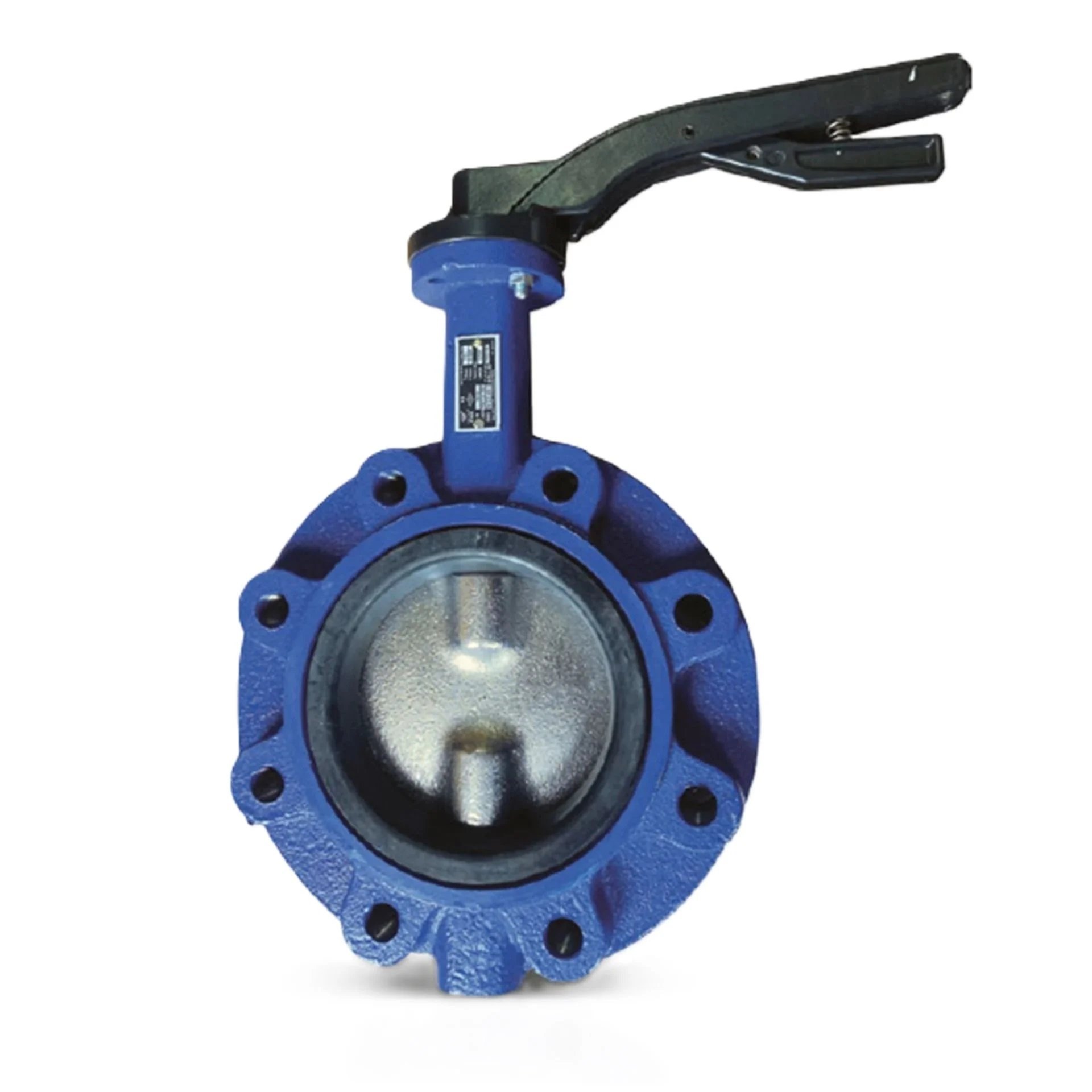

Ayvaz Lug Type Butterfly Valve Nickel Flap KV80
%62 Discounted Product
0 - Comment / Read Comments
174,00 USD
66,12 USD
Category
Brand
Stock Code
1602040070100190010030208-17
Price
145,00 USD + VAT
* Installments starting from 66,12 USD!
Add to Cart
Request a Quote
You can send us any questions you have about technical support, product information, or general topics. Our experts will get back to you as soon as possible.
Lug Type Butterfly Valve Nickel Flap KV80
Connection Type
Actuator Options
Application Areas
At ORFA Industrial Products , we offer high-quality and reliable valve solutions. The nickel-plated Lug-Type Butterfly Valve KV80 is a frequently preferred product in industrial and commercial facilities. This valve stands out with its cast iron body, nickel-plated ductile iron clack, and stainless steel shaft. Its H-EPDM seal provides high sealing performance and is suitable for PN16 flange pressure ratings.
The closing element in butterfly valves is a disc that rotates around a shaft positioned vertically. When assembled, it rotates around its own axis, creating a disc that opens or closes the entire pipe section. Sealing is achieved between the metal flap and the elastic or plastic sealing elements lining the body. The sealing element also serves as a gasket on the flange between the valve and the pipe. Advantages of this type of valve include low pressure loss, easy opening and closing, good sealing, light weight, and a small footprint.
Technical Specifications
Body: GG25 Cast Iron
Valve: GGG40.3 Nickel Coated Ductile Iron
Shaft: AISI 420 Stainless Steel
Gasket: H-EPDM
Flange Pressure Class: PN16
Maximum Operating Temperature: 130 ºC
Connection Type
Lug Type connection facilitates valve installation and enables wide application areas.
Actuator Options
Hand-operated models offer the user easy and fast control.
Application Areas
Heating, ventilation and air conditioning (HVAC) systems
Water treatment and distribution systems
Mining industry
Shipbuilding and drilling facilities
Food and chemical enterprises
Fire extinguishing systems
Water, seawater, dust, gas, wastewater and air applications
Notes:
Notes:
It is recommended to use reducer-type butterfly valves for all diameters. For butterfly valves DN350 and larger, only reducer-type butterfly valves are available.
At ORFA Industrial Products Industry and Trade Inc. , we offer you the highest quality and most reliable products. For more information about the Ayvaz KV80 Lug Type Butterfly Valve or to place an order, please contact us.
