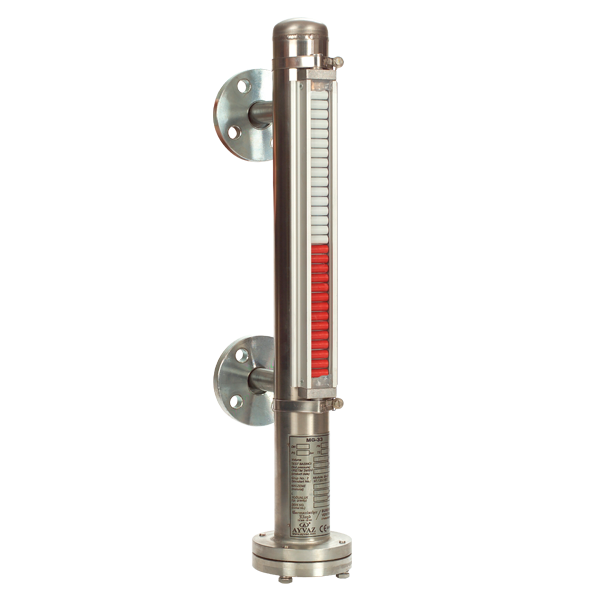

Ayvaz MG-33P PVC Magnetic Level Indicator L:2000mm

Ayvaz MG-33P PVC Magnetic Level Indicator – DN20 PN6 | L:2000 mm

Ayvaz MG-33P PVC Magnetic Level Indicator, offered by ORFA Endüstriyel Mamüller Sanayi ve Ticaret A.Ş., is a professional level control device designed for reliable level monitoring especially in acidic, corrosive, and chemically intensive environments. Thanks to its PVC body structure, it is an ideal solution for aggressive chemicals where metal-bodied indicators cannot be used.

With its DN20 flanged connection and PN6 pressure rating, it delivers high performance in low–medium pressure tanks and processes. The L:2000 mm dimension refers to the actual level measurement length between the two connection flanges.

Operating Principle

The MG-33P operates with a float-magnet mechanism that moves up and down inside a PVC column mounted externally on the tank:

• Float: Moves together with the liquid level and contains a powerful magnet.
• Indicator Flaps: Red-white magnetic plates on the outer surface of the column rotate under the magnetic effect.
• Visual Monitoring: The level can be clearly observed from outside thanks to the color change of the plates.
• Leak-Free Operation: There is no contact between the tank interior and the external environment.

Technical Specifications

Key Advantages

• PVC body fully compatible with acidic and corrosive environments
• Clear and easy-to-read level indication from outside
• Self-cleaning capability through float movement
• Leak-free and safe design with no contact with the external environment
• Can be manufactured in different lengths and dimensions
• Ideal solution for chemicals that metal level indicators cannot withstand

Applications

• Chemical process tanks
• Solutions containing acids and bases
• Wastewater and neutralization tanks
• Low-pressure storage tanks
• Petrochemical processes
• Treatment plants

Delivered quickly from stock with ORFA Endüstriyel assurance.
