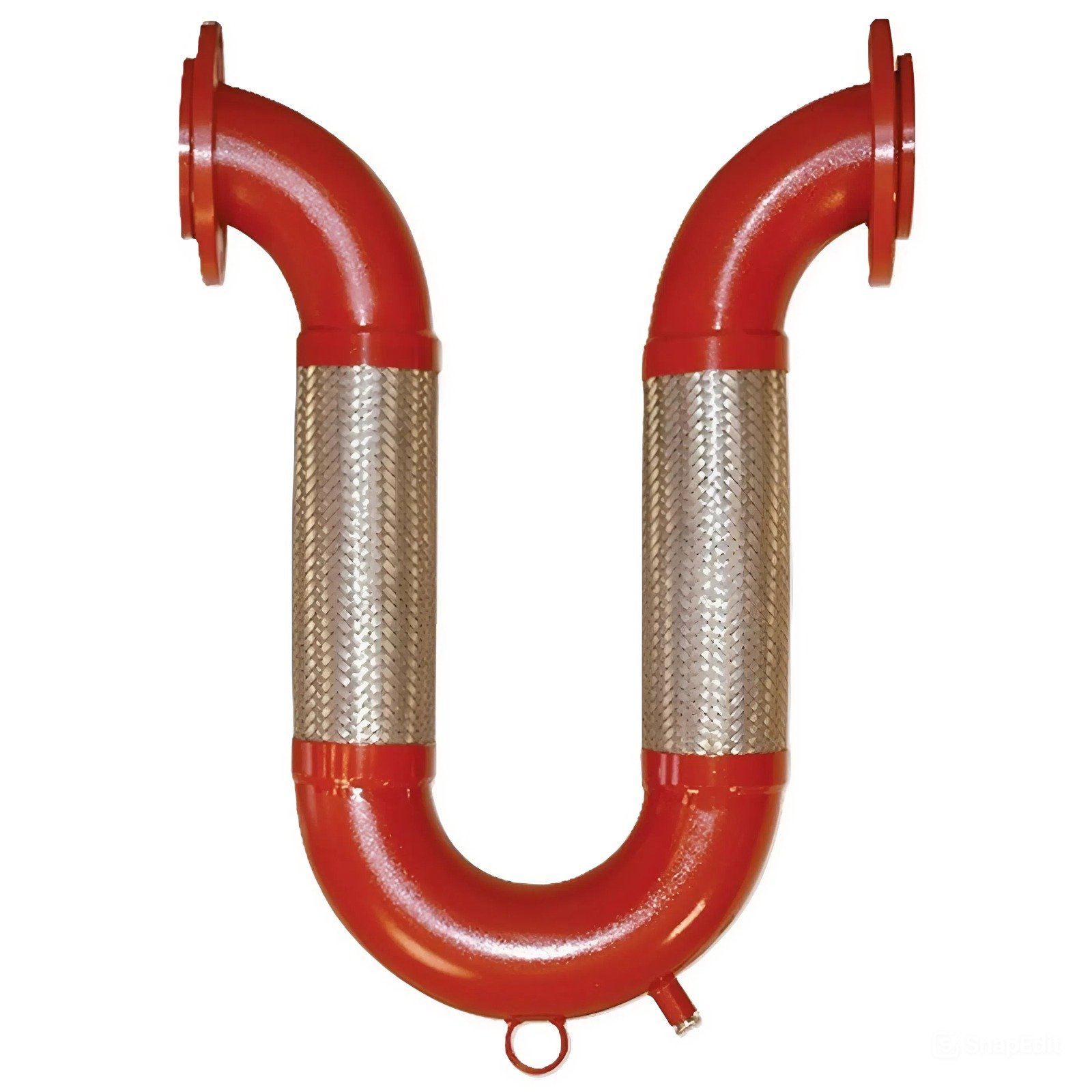

AYVAZ Omega U-Flex Welded Neck Expansion Expansion Joint L:100mm 1 1/2''
0 - Comment / Read Comments
AYVAZ Omega U-Flex Weld Neck Expansion Expansion Compensator L:100mm 1 1/2''
AYVAZ Omega U-Flex Weld Neck Dilatation Expansion Joint ORFA AYVAZ Omega U-Flex Welding Neck Dilatation Expansion Joint Compensator L:100mm 1 1/2'', offered for sale by Endüstri Mamüller Sanayi ve Ticaret A.Ş
, is a special fastener designed to absorb earthquakes, collapse, expansion and movements in different directions in pipelines. Thanks to its stainless steel bellows and braided structure, it is resistant to both high pressure and wide temperature ranges. The fact that it is FM approved makes its use mandatory, especially in fire circuits.
Working Principle
U-Flex expansion joints eliminate the stress and strain that may occur in rigid systems by absorbing axial expansions, lateral deviations and angular rotations occurring in pipelines. Thanks to the braided hoses on both sides, it protects the equipment on the line by absorbing movements. Thus, a safe and long-lasting operation is ensured.
Specification Nominal Diameter:
1/2'' Length:
L:100 mm Bellows Material:
Stainless Steel AISI 304 / AISI 316L Weave Material:
Stainless Steel AISI Connection Type:
Weld neck Connection Material:
Carbon Steel St37. Compressive Strength:
Standard 175 PSI and 250 PSI Temperature Range:
-80 °C ~ +600 °C Certificate:
FM Approved
Compensator Usage Areas
Fire circuits and dilatation passages
Fuel oil tanks and tanks
Machine and device output connections
Industrial pipelines
For earthquake safety in buildings and infrastructure systems AYVAZ Omega U-Flex Weld Neck Expansion Joint Expansion Joint offers a wide range of uses, from fire systems requiring high security to fuel oil facilities and industrial applications. ORFA This expansion joint, offered for sale with the industrial
