AYVAZ Omega V-Flex Flange Expansion Expansion Joint L:100mm DN65
0 - Comment / Read Comments
Brand
Stock Code
702090303075
Warranty Period
24 Month

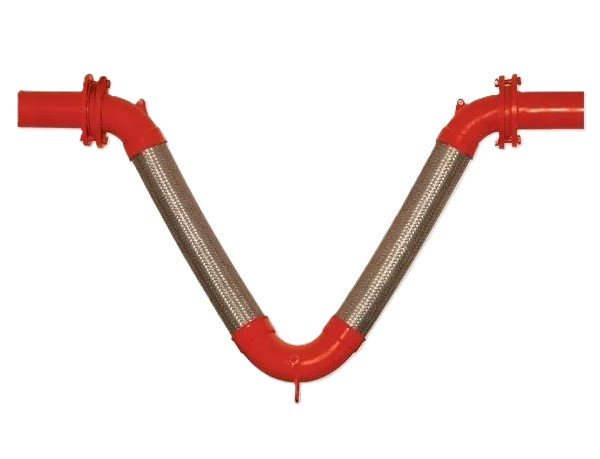

AYVAZ Omega V-Flex Flange Expansion Expansion Joint
ORFA Ayvaz Omega V-Flex Flange Expansion Expansion Expansion Joint L:100mm DN65, sold by Endüstri Mamüller Sanayi ve Ticaret A.Ş , is a high-performance fastener that ensures system safety by absorbing earthquake, collapse, thermal expansion or vibration-induced movements in pipelines. Minimizing the stresses in rigid pipe systems, this compensator offers a wide range of usage areas, from fire circuits to process lines.
Compensator Working Principle
Omega V-Flex compensators; It eliminates strain on the lines by absorbing axial movements, lateral deviations and angular rotations. Thanks to its double-sided braided hose structure, it safely dampens vibration and pressure changes. Thanks to this feature, it ensures safe transportation of the fluid and extends the life of the installation.
Specification
Bellows Material: Stainless Steel AISI 304 / AISI 316L
Weave Material: Stainless Steel AISI
Connection Types: Flanged
Connection Material: Carbon Steel St37.2 (can be customized upon request)
Elbow Material: Carbon Steel St37.2 (can be customized)
Compressive Resistance: PSI and 250 PSI (production with special design for high pressure classes)
Operating Temperature: -80°C to +600°C
Nominal Diameter: DN
Standard Expansion Value: ±1.5° angular movement and axial extension/tensile tolerance
Certificate: FM approved, production in accordance with international standards
Compensator Usage Areas
Fire circuit lines
Building mechanical installations
Dilatation transitions in installations
Process lines and chemical installations
Fuel oil tanks and warehouses
Industrial machine and device outputs
Expansion zones in pipelines caused by pressure and temperature differences
Ayvaz Omega V-Flex Flange Expansion Expansion Joint L:100mm DN65 offers a reliable solution for industrial installations with its high temperature and pressure resistant structure, flexible mobility and FM approval. ORFA This product, offered with the assurance of Endüstri Mamüller Sanayi ve Ticaret A.Ş , is a professional fastener preferred for long-lasting and safe use.
