Ayvaz Reducer Butterfly Valve Wafer Type KV-7
0 - Comment / Read Comments

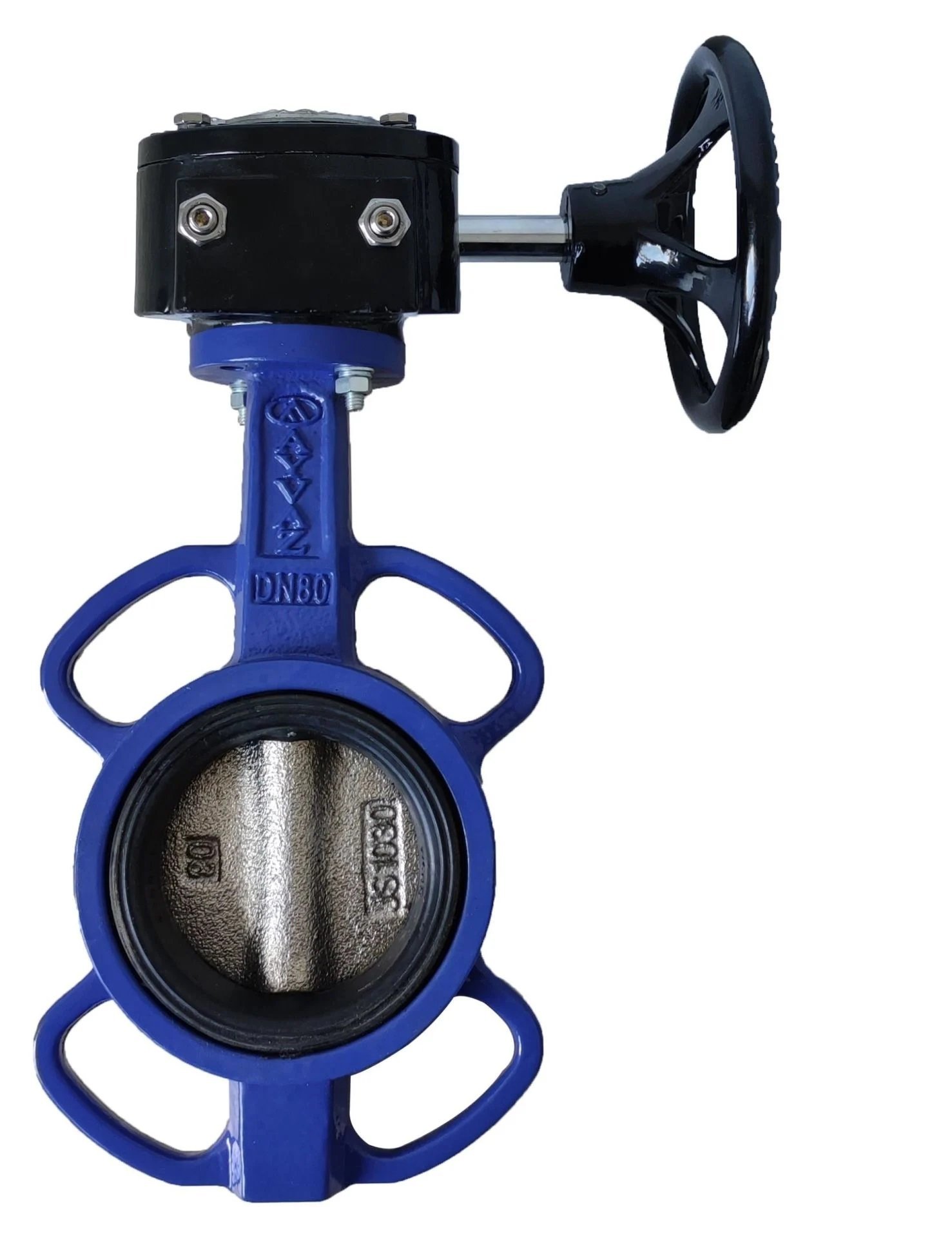

Wafer Type Butterfly Valve with Reducer, Nickel Flap, Epdm Gasket
The Wafer-Type Reducer Butterfly Valve with Nickel Clapper and EPDM Seal is a high-quality valve that offers superior performance and reliability in a variety of industrial applications. Sold by ORFA Industrial Products Industry and Trade Inc. , this product offers a wide range of applications, particularly in heating, ventilation, water treatment, and distribution systems.
Technical Information:
Diameter Range: DN25 – DN600
Body Material: GG25 Cast Iron
Valve Material: GGG40.3 Nickel Coated Ductile Iron
Shaft Material: SS420 (DN25-DN300), SS431 (DN350-DN600)
Sealing Element: EPDM Gasket
Connection Type: Wafer Type
Maximum Operating Temperature: 130 ºC
Working Principle
Disc and Shaft Movement:
Disc: The primary closing element of the valve, the disc, rotates around a shaft positioned vertically. In the fully open position, the disc allows fluid to pass freely, while in the fully closed position, it completely stops flow.
Shaft: The disc rotates around an axis called a shaft. The shaft provides the rotation, either manually or with the help of an actuator. In the geared type, this rotation is achieved with greater precision and control via the geared motor.
Opening and Closing Mechanism:
Open Position: When the shaft rotates 90 degrees with the disc, the disc becomes parallel to the pipeline and allows the fluid to pass freely in the fully open position.
Closed Position: When the shaft rotates 90 degrees with the disc, the disc becomes perpendicular to the pipeline and completely blocks the passage of fluid in the fully closed position.
Sealing:
EPDM Seal: The seal between the disc and the valve body is provided by an EPDM seal, an elastic or plastic sealing element. EPDM offers excellent sealing and corrosion resistance.
Sealing Function: The EPDM seal also doubles the sealing by acting as a seal on the flange between the valve and the pipe.
Geared Actuator:
Reducer: A reducer actuator is used to open and close the valve. The reducer slows down the rotation, providing more precise and controlled disc movement. This feature is especially important for large-diameter valves (DN350 and above).
Actuator Types: Actuators connected to the valve shaft can be manual, electric or pneumatic, providing flexibility and ease of use to the user.
Assembly and Control:
Wafer Type Connection: Wafer type butterfly valves are mounted between flanges. During installation, the disc and shaft should be checked for free movement.
Stem Position: The stem can be in either a horizontal or vertical position. However, horizontal installation is preferred for valves DN300 and larger.
Advantages:
Pressure Loss: Energy efficiency is achieved thanks to low pressure losses.
Easy to Use: It offers ease of use with its easy opening and closing feature.
Sealing : Excellent sealing performance with EPDM gasket.
Lightweight and Compact: Ease of installation and maintenance with its lightweight and space-saving design.
Areas of Use:
Heating, Ventilation and Air Conditioning Systems (HVAC): These valves provide reliable and effective flow control in HVAC systems.
Water Treatment and Distribution Systems: Used in water treatment plants and distribution lines, it helps manage water safely and efficiently.
Mining Industry: Provides flow control resistant to harsh conditions in mineral processing plants.
Shipbuilding and Drilling Facilities: Provides effective solutions for controlling seawater and other fluids.
Sugar Industry, Food and Chemical Enterprises: Suitable for hygienic and safe flow control.
Fire Extinguishing Systems: Provides fast and reliable control in fire extinguishing systems.
General Industrial Applications: Used in the control of various fluids such as water, sea water, dust, gas, wastewater and air.
Wafer-Type Butterfly Valve with Reducer, Nickel-Clapped EPDM Seal. The reducer type is recommended for all diameters. For diameters DN350 and above, only the reducer type is available. This ensures more precise and secure flow control.
ORFA Industrial Products Industry and Trade Inc. sells these high-performance butterfly valves and offers ideal solutions for the needs of industrial facilities. Contact us for more information about our products and to place an order.
You can download the Wafer Type Reducer Butterfly Valve brochure from here
You can download the Wafer Type Reducer Butterfly Valve brochure from here
