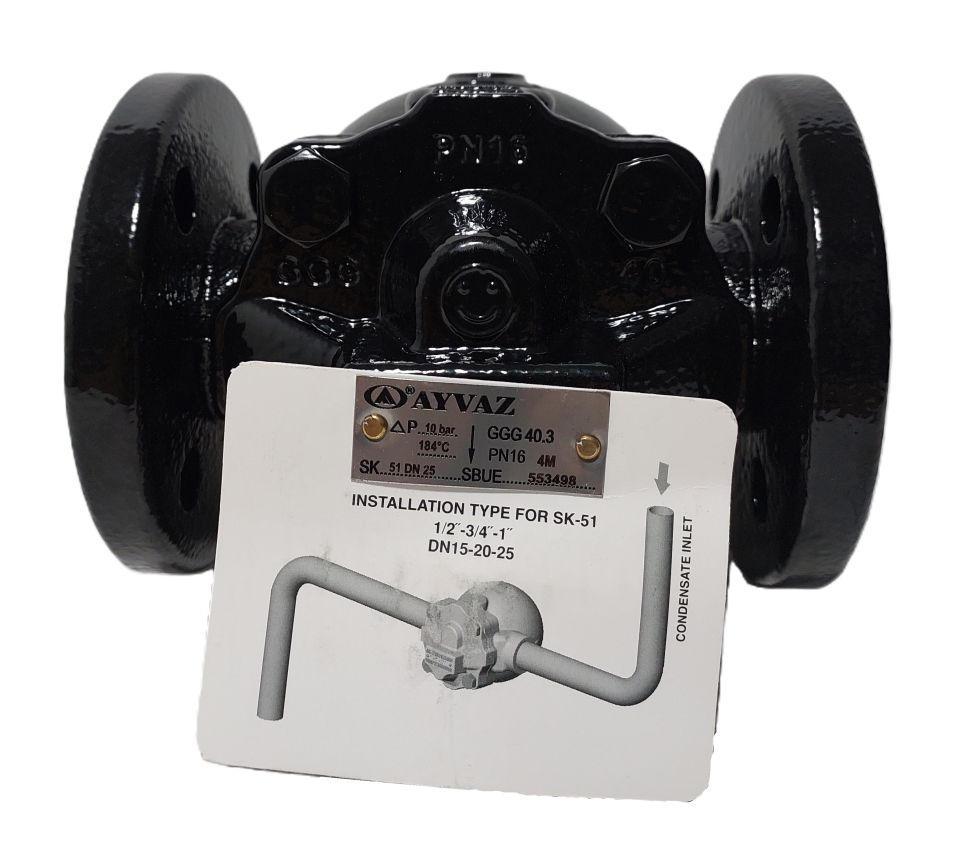

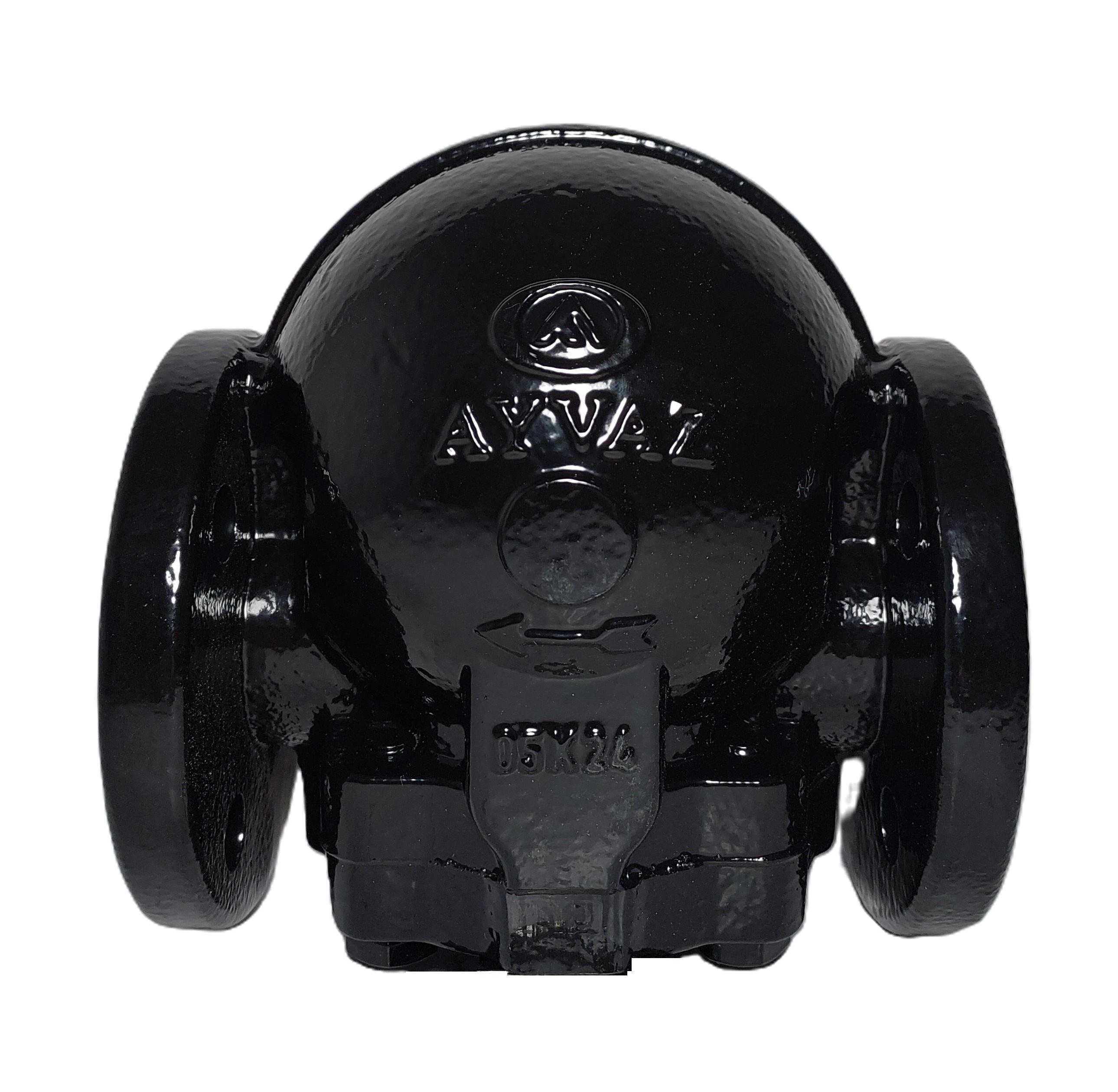

AYVAZ SK-51 Float Steam Trap Flanged DN25 PN16
%62 Discounted Product
0 - Comment / Read Comments
714,60 EUR
271,55 EUR
Category
Brand
Stock Code
703200102011
Warranty Period
24 Month
Price
595,50 EUR + VAT
* Installments starting from 271,55 EUR!
Add to Cart
Float Steam Trap SK-51
SK-51 Float Steam Trap Working Principle
Rise of the Buoy:
Evacuation and Vapor Separation:
Thermostatic Capsule Activation:
Pressure and Temperature Changes:
ORFA Industrial Products Industry and Trade Inc. sells the Ayvaz brand SK-51 Float Steam Trap. The SK-51 Float Steam Trap continuously discharges condensate at the steam saturation temperature, depending on the changing condensate volume. It operates unaffected by sudden and large pressure fluctuations. It is particularly ideal for systems requiring rapid condensate discharge and where condensate accumulation could cause problems in the pipeline. It also performs excellently in automatic temperature-controlled systems.
The SK-51 Float Steam Trap , in addition to its float-type discharge function, also discharges air via a thermostatic capsule. This prevents air accumulation and water hammer in the pipeline. If the float malfunctions for any reason, the thermostatic capsule activates to continue condensate discharge and prevent blockages in the system.
Float Steam Trap Features:
Body and Cover: GGG 40.3 Ductile Iron
Interior: Stainless Steel
Connections: Flanged
Nominal Diameter: Dn25
Pressure Values: Max. Up to 16 bar
Operating Temperature: Max. 250 ºC
ΔP: 4.5 / 10 / 14 bar

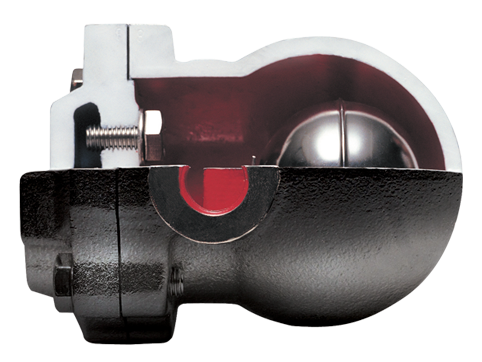

SK-51 Float Steam Trap Working Principle
Condensate Inlet:
Condensate from the steam line reaches the trap inlet. The float position is determined by the condensate level inside the trap.
Rise of the Buoy:
As the condensate level increases, the float rises. The mechanism to which the float is attached opens a valve, allowing the condensate to drain. This allows the trap to drain condensate continuously and quickly.
Evacuation and Vapor Separation:
The float only drains the condensate and prevents steam from passing through. This minimizes energy losses and increases system efficiency.
During condensate discharge, the thermostatic capsule inside evacuates air. This prevents air accumulation in the pipeline and prevents adverse events such as water hammer.
Thermostatic Capsule Activation:
If the float loses its function for any reason, a thermostatic capsule activates. This capsule ensures condensate is drained and the system is not clogged. This safety feature ensures uninterrupted system operation.
Pressure and Temperature Changes:
The SK-51 Float Steam Trap is unaffected by sudden and large pressure changes. It operates safely and efficiently up to a maximum pressure of 16 bar and an operating temperature of 250°C.
The SK-51 Float Steam Trap operates on the principle of the float rising and falling according to the condensate level. This mechanism ensures continuous and efficient condensate drainage. The thermostatic capsule provides air evacuation for added safety and efficiency and is activated in the event of a float malfunction. This prevents blockages and energy losses in the system.
Float Steam Trap Usage Areas
Heat Exchangers: Systems that require rapid condensate removal to ensure efficient heat transfer.
Heating Coils: Provides efficient use of heat through rapid and continuous condensate discharge.
Tanks: Storage systems where condensate accumulation must be prevented.
Pans-Tables: Ideal condensate drainage during drying and cooking processes.
Drying Cylinders: Drying processes requiring continuous and rapid condensate removal.
Furnaces: Reliable condensate removal under high temperature and pressure.
Steam Separators: Used in steam and condensate separation processes.
Flash Steam Tank: Condensate discharge resistant to sudden pressure changes.
