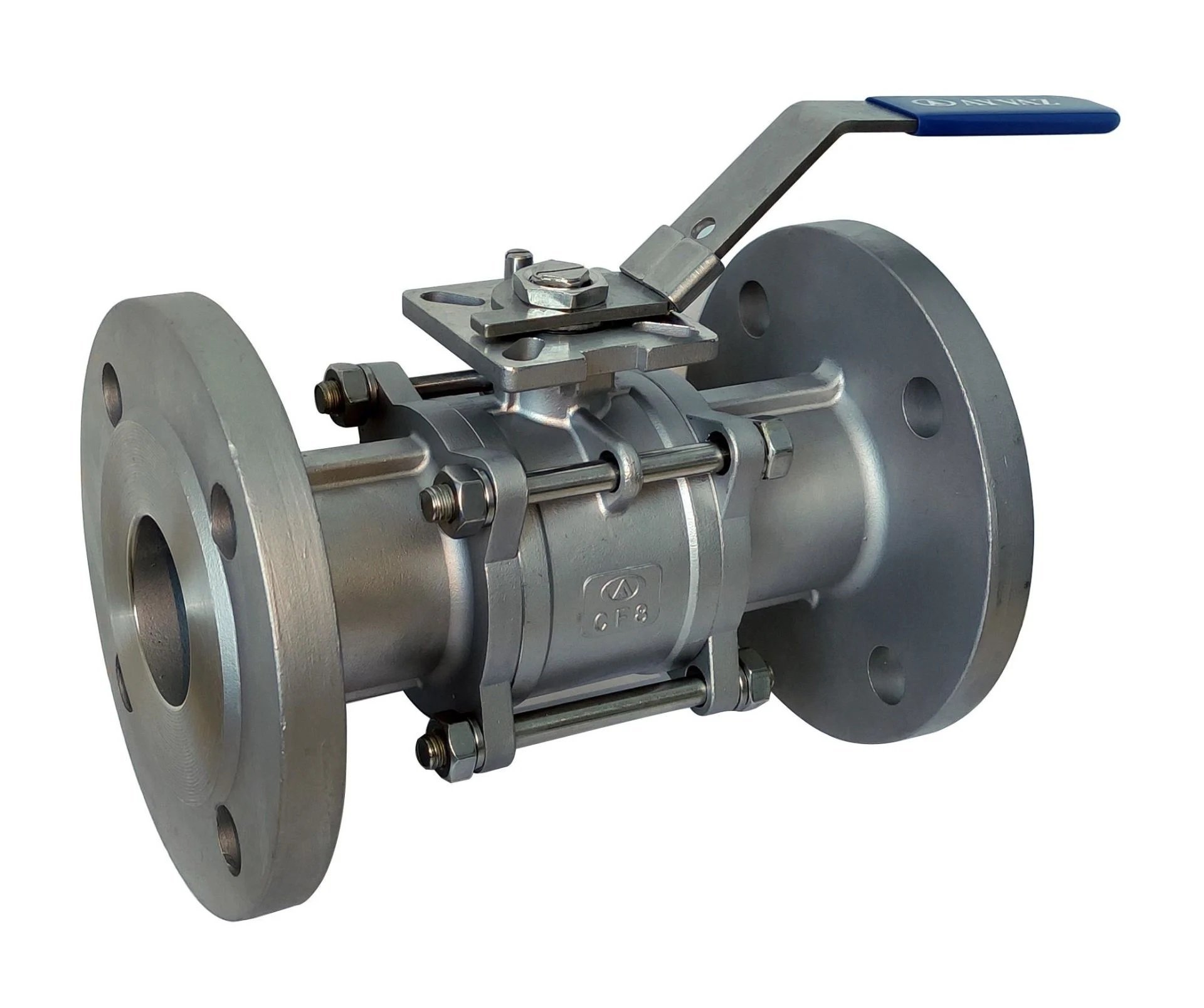

Stainless Steel Ball Valve Three Piece Flanged Actuator Mountable V-3FP AISI 316
ORFA Industrial Products Industry and Trade Inc. offers superior quality solutions for your industrial needs. The V-3FP Actuator-Mountable Three-Piece Flanged Stainless Steel Ball Valve is an ideal choice for harsh industrial environments. Manufactured from AISI 316 stainless steel, this valve provides excellent performance even under high temperatures and pressures.
The Three-Piece Flanged Actuator-Mountable Stainless Steel Ball Valve V-3FP AISI 316 is a superior product preferred in systems requiring frequent opening and closing, particularly those requiring rapid opening and closing. Ball valves control flow by rotating a 90° ball with a hole in the center to the fully open position. This minimizes pressure loss and increases system efficiency.
Thanks to their actuator-mountable feature, these valves can be integrated into automatic control systems. Actuators automatically open and close the valve, providing fast and precise flow control without the need for manual intervention. This feature is particularly advantageous in hard-to-access areas or systems requiring continuous monitoring.
Product Features:
Body and Cover Material: AISI 316 Stainless Steel
Sphere Material: AISI 316 Stainless Steel
Seal Material: PTFE
Operating Temperature: -25°C to +180°C
Pressure Class: PN 40
Nominal Diameter: DN15 (1/2") - DN100 (4")
Connections: Flanged
Technical Information:
Manufactured from stainless steel, these valves offer high durability and long life. PTFE seals ensure perfect sealing. V-3FP series valves are subjected to 100% air testing in both open and closed positions at 10 bar underwater to ensure quality. These valves can be safely used in a wide temperature range from -25°C to +180°C.
Working System:
V-3FP series valves stand out with their ability to be fitted with an actuator. Actuators rotate the valve's ball using electric or pneumatic energy. This rotation allows the valve to be opened or closed. Thanks to the actuators, the valve can be remotely controlled and operated automatically. This provides a significant advantage, particularly in industrial facilities, large pipelines, and systems requiring continuous monitoring.
Areas of Use:
Heating-Cooling Lines: Can be used safely in central heating and cooling systems.
Food Facilities: It is preferred in food processing facilities thanks to its hygienic and stainless features.
Chemical Industry: It is ideal for use in the chemical industry with its chemical-resistant structure.
Shipbuilding: It has high resistance to sea water, so it is used in shipbuilding.
Paper Mills: Provides the necessary flow control in paper production processes.
Hot and Cold Water Lines: It can be used effectively in all types of hot and cold water lines.
