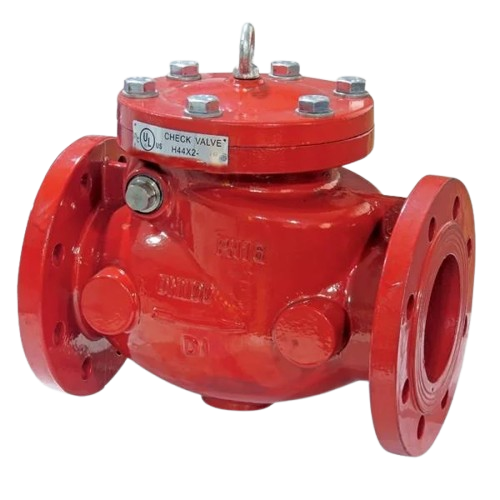

Ayvaz Swing Tip Çekvalf DIN Flanşlı 300PSI PN16 6''
Ayvaz Swing Type Check Valve DIN Flanged 300 PSI PN16 6" Reliable Control Preventing Backflow Solution
Ayvaz Swing Type Check Valve is designed to ensure safe and continuous control of the flow direction. DIN flange 6" connection and PN16 pressure class offer flexible use in both industrial and commercial systems. PSI (20 bar) maximum working pressure and 600 PSI (40 bar) test pressure offer excellent performance in applications requiring high durability. ASTM A536 cast steel body and flap provide durability and long life, while EPDM seat material offers high sealing performance. Stainless steel pin is resistant to corrosion and has a long life.
Swing Type Check Valve Technical Specifications:
Ayvaz Swing Type Check Valve is designed to ensure safe and continuous control of the flow direction. DIN flange 6" connection and PN16 pressure class offer flexible use in both industrial and commercial systems. PSI (20 bar) maximum working pressure and 600 PSI (40 bar) test pressure offer excellent performance in applications requiring high durability. ASTM A536 cast steel body and flap provide durability and long life, while EPDM seat material offers high sealing performance. Stainless steel pin is resistant to corrosion and has a long life.
Swing Type Check Valve Technical Specifications:
Maximum Working Pressure: PSI (20) bar)
Maximum Test Pressure: PSI (40 bar)
Operating Temperature: Maximum 80 °C
Body and Valve Material: ASTM A536 Steel Casting
Sit Material: EPDM
Pin Material: Stainless Steel
Connection Type: DIN Flanged
Connection Size: "
Swing Type Check Valve Usage Areas:
Swing Type Check Valve Usage Areas:
Water and liquid transfer lines
Heating and cooling systems
Industrial process lines
Chemical and petrochemical plants
Power plants
Fire water lines
Ayvaz Swing Type Check Valve DIN Flanged 6", ORFA Industrial increases installation safety by preventing backflow with sales assurance. It is a long-lasting, reliable control solution with its robust body, stainless internal parts and high sealing.
Ayvaz Swing Type Check Valve DIN Flanged 6", ORFA Industrial increases installation safety by preventing backflow with sales assurance. It is a long-lasting, reliable control solution with its robust body, stainless internal parts and high sealing.
| Thread Size | : | 6'' |
