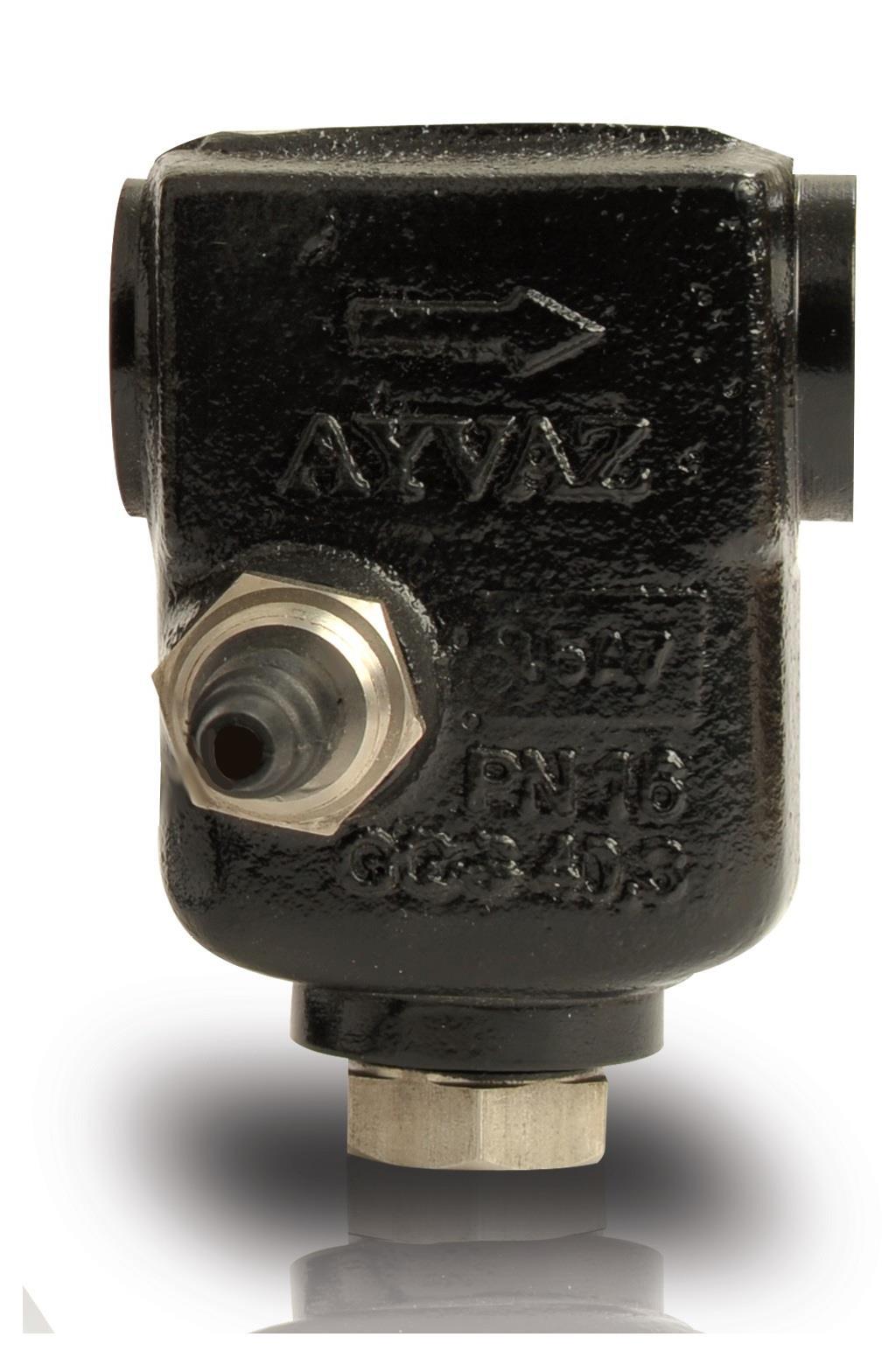

AYVAZ T-KON 20 Kondenstop Kontrol Gövdesi 1/2''
Request a Quote
You can send us any questions you have about technical support, product information, or general topics. Our experts will get back to you as soon as possible.
AYVAZ T-KON 20 Steam Trap Control Body 1/2'': Expert Solution for Steam Leak Detection
In steam systems, leaving steam traps open causes significant energy waste , while keeping them closed reduces system efficiency. The Ayvaz T-KON 20 Steam Trap Control Body is designed to prevent these malfunctions and facilitate timely steam trap maintenance.
This Steam Trap Control Body is used in small-scale steam lines with a nominal diameter of 1/2'' (DN15) and provides continuous control of steam traps.
Steam Trap Control Body Definition and Working Principle
The Ayvaz T-KON 20 is designed to detect steam leaks in a steam trap in an operating system. It is designed for use only in saturated steam applications. The housing includes a sensor that distinguishes the conductivity difference between steam and condensate.
Visual Signal: A handheld control device (sold separately) that can be connected to this body emits a "green" light signal when condensate is passing through and a "red" light signal when steam is passing through. This allows the operator to easily determine if there is a leak in the trap.
Energy Saving: Prevents energy waste caused by steam escaping from the steam trap by detecting it early.
Features and Advantages of the T-KON 20 Steam Trap Control Body:
Reliable Material: The body and cover are made of GGG 40.3 Ductile Iron , which is resistant to high pressure and temperature.
Wide Operating Range: It can operate safely up to a maximum pressure of 14 bar and a temperature of 240 ºC .
Easy Maintenance Support: Provides instant feedback to the operator, supporting timely maintenance of steam traps.
Area of Use: Used in all kinds of steam lines, before steam traps.
Connection Type: Various connection options are available, including threaded and flanged.
| Tooth Measurement | : | 1/2'' |
